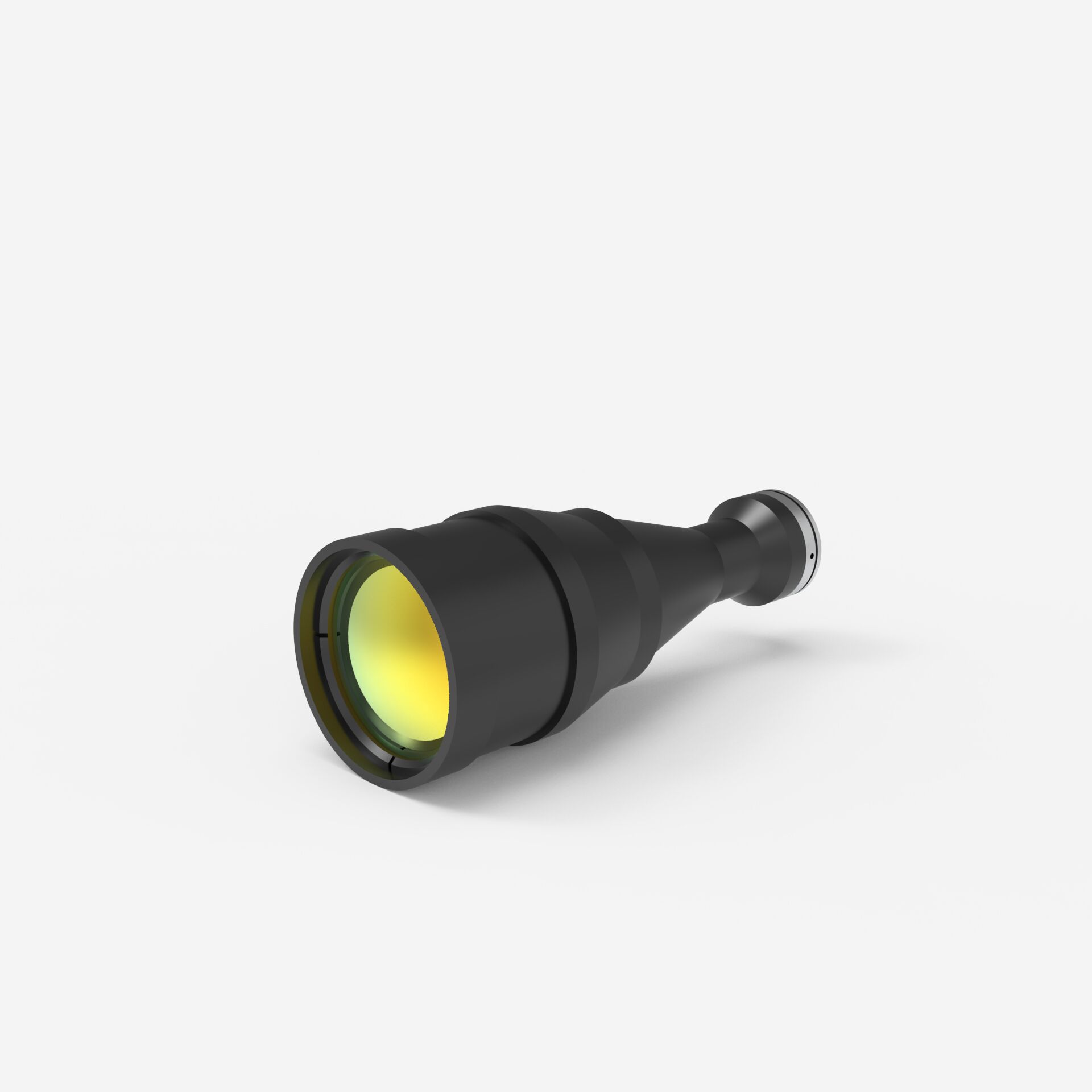

Lens specification | XF-10MDT0.275X200-1C |
|---|---|
Lens type: | Objektseitig Telezentrisch |
Magnification | 0.275 |
coaxial insertion | Nein |
Image circle | Ø 16 mm |
Object circle | Ø 58.2 mm |
Working distance | 200 mm±3% |
Max. Sensor size | 1″ |
Max. Telecentricity error | 0.03° |
Max. Distortion | 0.032% |
Standard distortion | 0.032% |
Variable aperture | Nein |
Aperture | F8 |
Depth of field | 11.8 mm |
Resolution | 19.2 μm |
MTF | >130 lp/ mm |

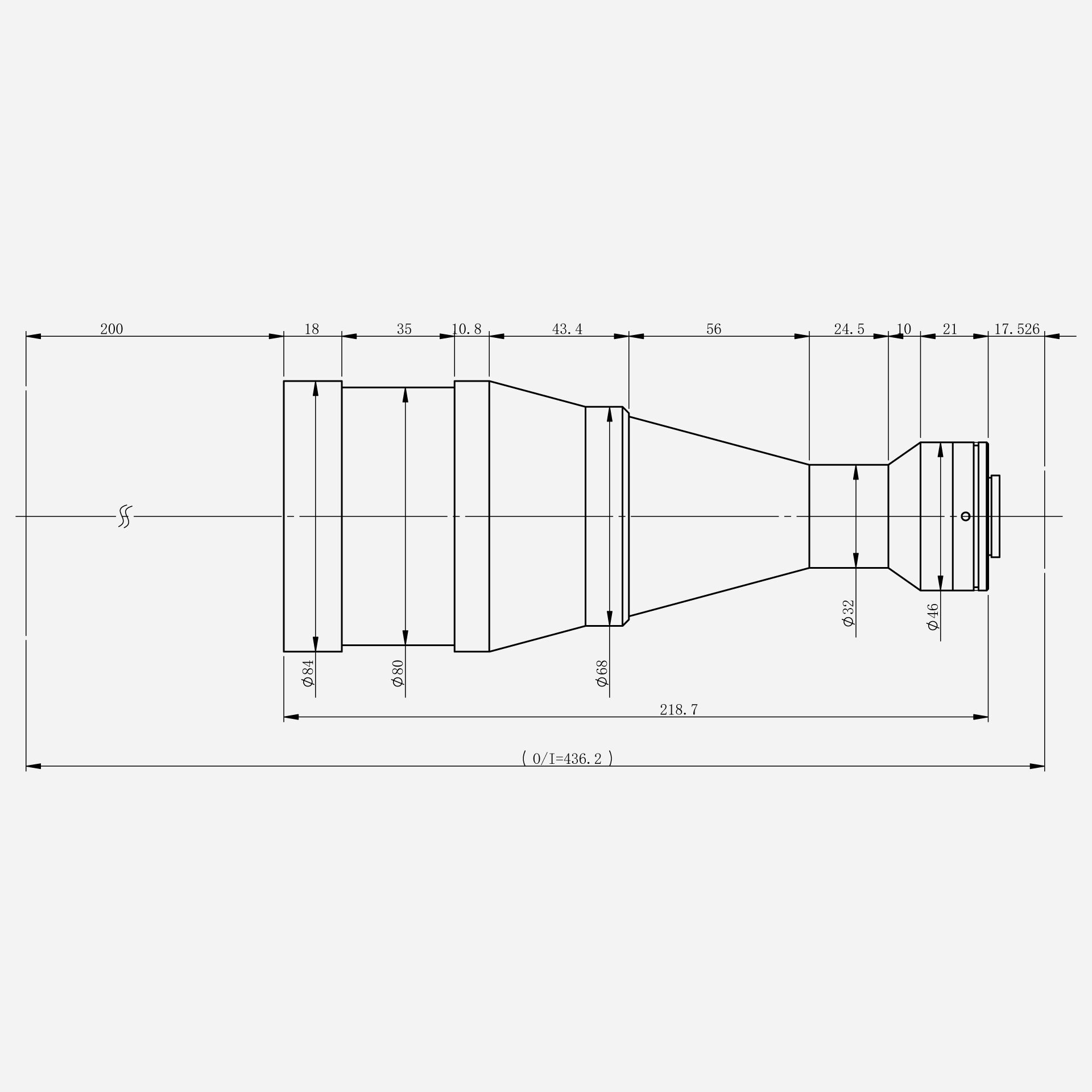

Lens diameter | Ø 84 mm |
Lens length | 218.7 mm |
Weight | nicht eingegeben |
Standard Mount | C-Mount |
