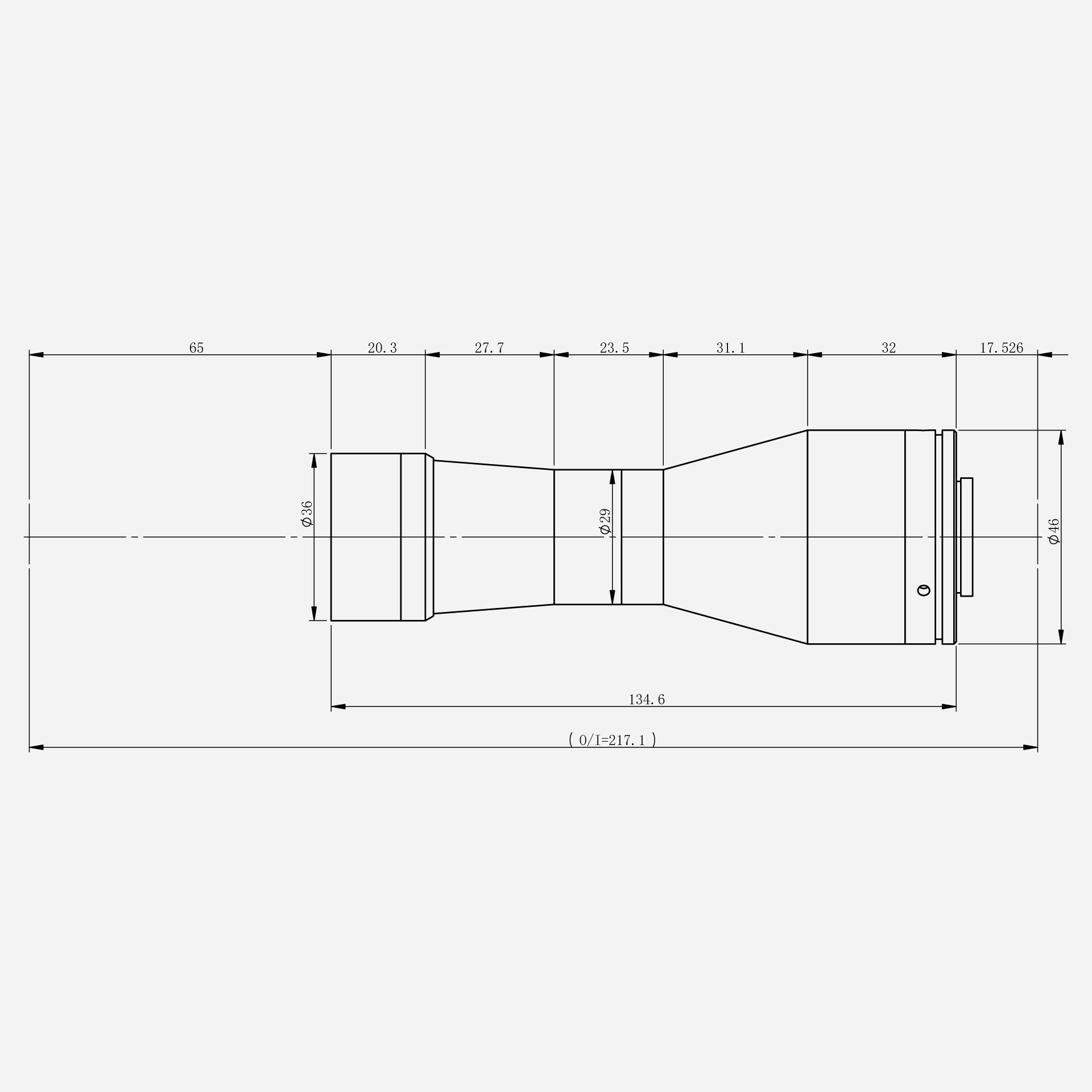

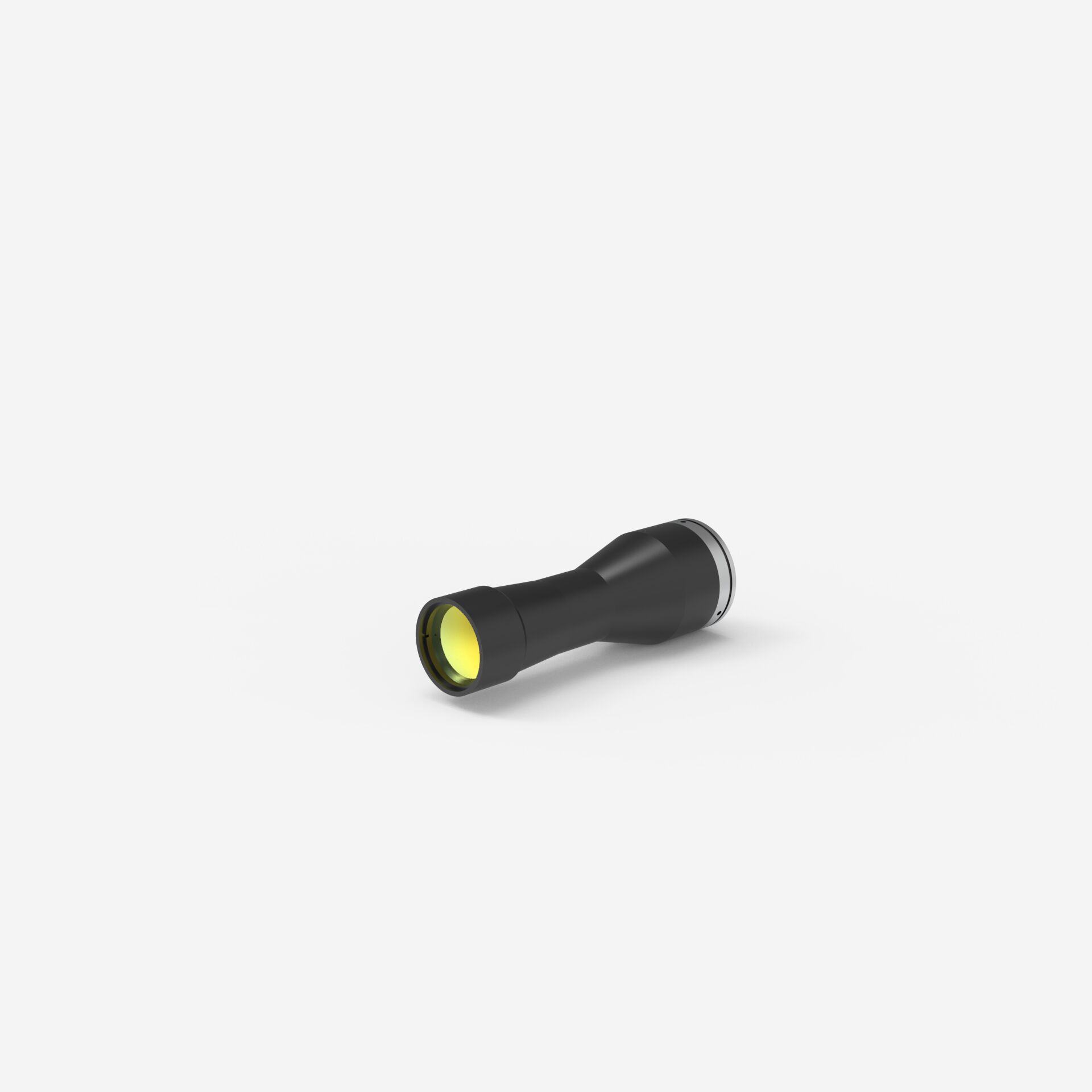

Lens specification | XF-10MDT074X65-1C |
|---|---|
Lens type: | Objektseitig Telezentrisch |
Magnification | 0.74 |
coaxial insertion | Nein |
Image circle | Ø 17.6 mm |
Object circle | Ø 23.8 mm |
Working distance | 65 mm±3% |
Max. Sensor size | 1.1″ |
Max. Telecentricity error | 0.26° |
Max. Distortion | 0.055% |
Standard distortion | 0.055% |
Variable aperture | Nein |
Aperture | F8.5 |
Depth of field | 1.7 mm |
Resolution | 7.6 μm |
MTF | >120 lp/ mm |
Lens diameter | Ø 46 mm |
Lens length | 134.6 mm |
Weight | nicht eingegeben |
Standard Mount | C-Mount |
