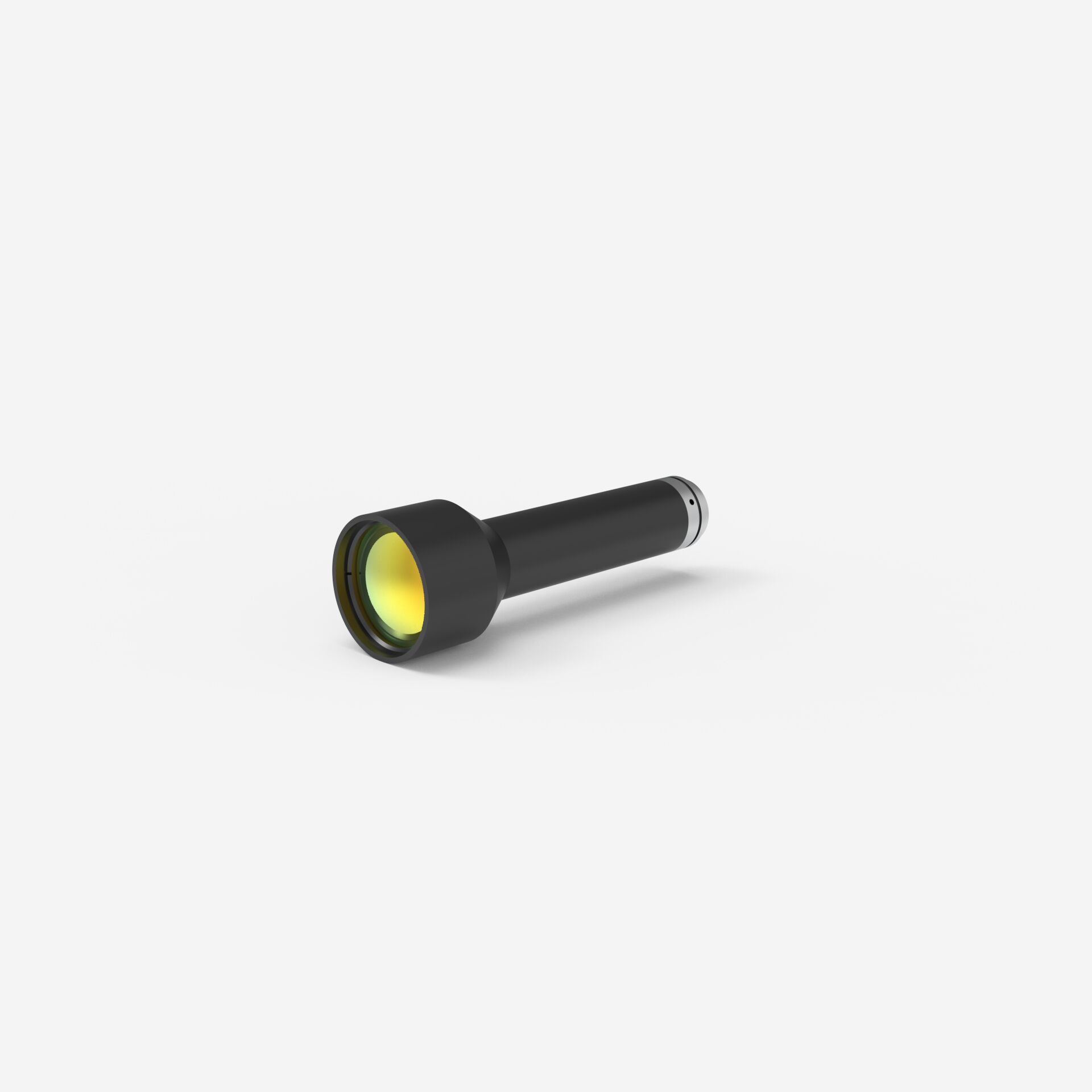

Lens specification | XF-10MDT1X110-1C |
|---|---|
Lens type: | Objektseitig Telezentrisch |
Magnification | 1 |
coaxial insertion | Nein |
Image circle | Ø 17.6 mm |
Object circle | Ø 17.6 mm |
Working distance | 110 mm±3% |
Max. Sensor size | 1.1″ |
Max. Telecentricity error | 0.08° |
Max. Distortion | 0.08% |
Standard distortion | 0.08% |
Variable aperture | Nein |
Aperture | F10 |
Depth of field | 1.1 mm |
Resolution | 6.5 μm |
MTF | >100 lp/ mm |

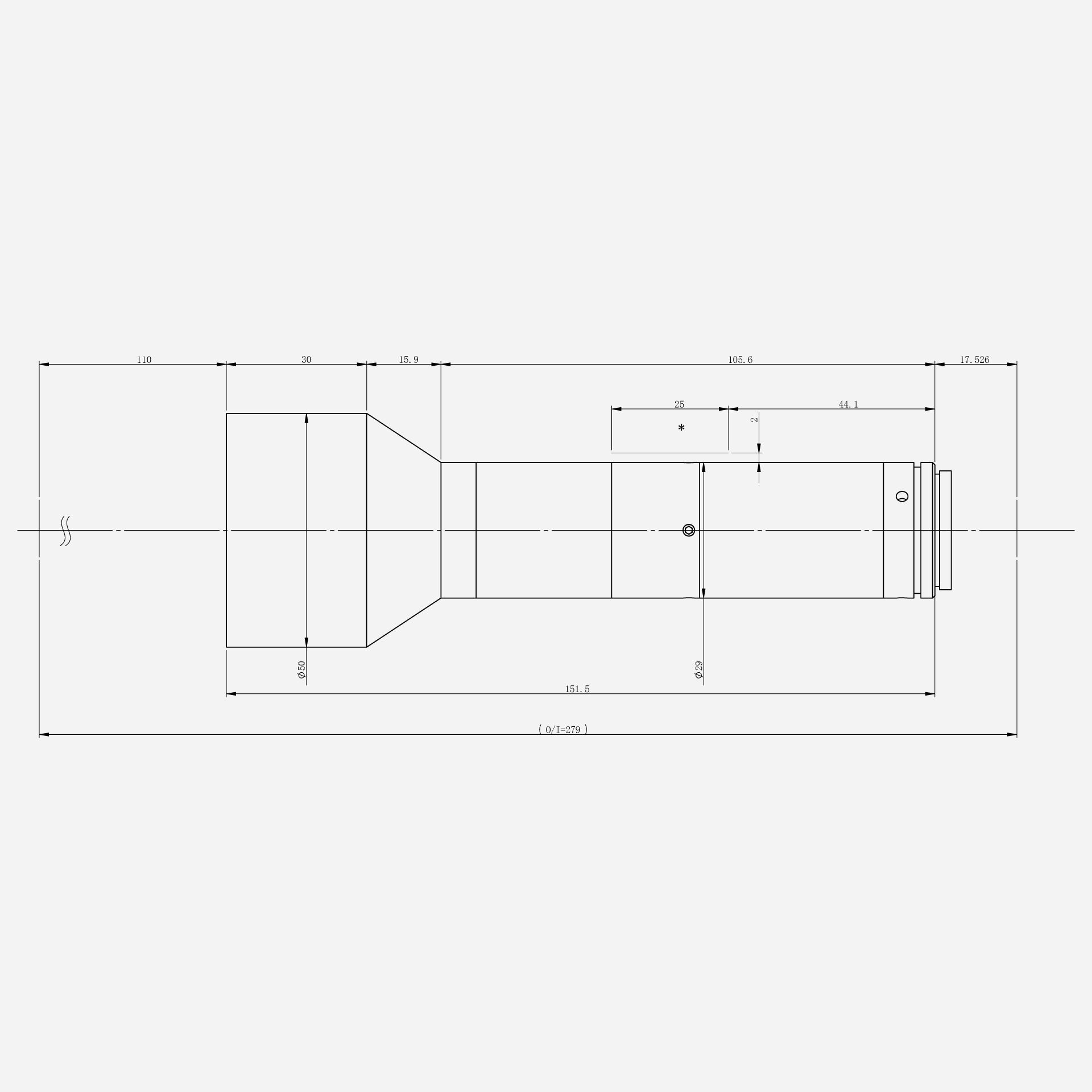

Lens diameter | Ø 50 mm |
Lens length | 151.5 mm |
Weight | nicht eingegeben |
Standard Mount | C-Mount |
