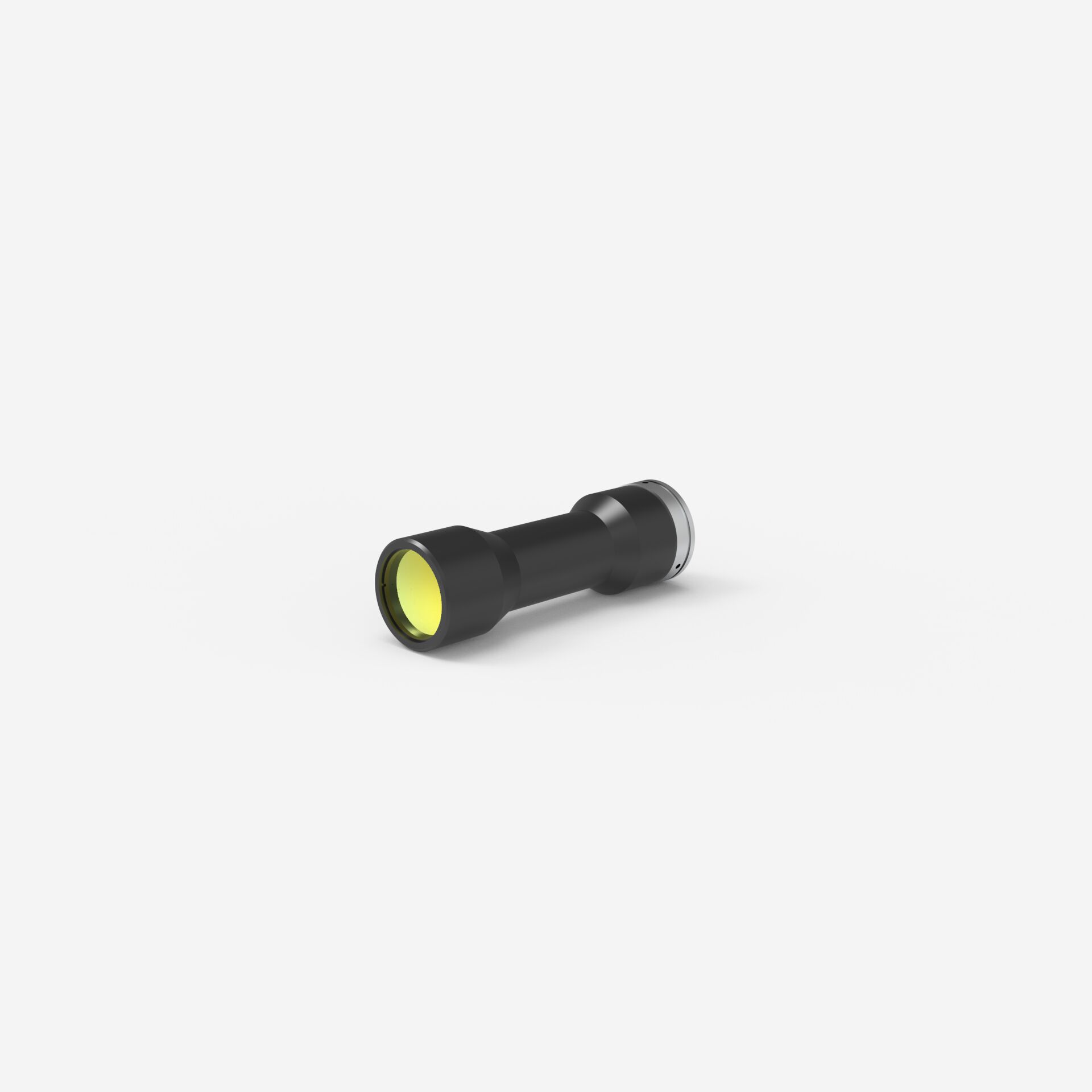

Lens specification | XF-10MDT1X65-1C |
|---|---|
Lens type: | Objektseitig Telezentrisch |
Magnification | 1 |
coaxial insertion | Nein |
Image circle | Ø 17.6 mm |
Object circle | Ø 17.6 mm |
Working distance | 65 mm±3% |
Max. Sensor size | 1.1″ |
Max. Telecentricity error | 0.21° |
Max. Distortion | 0.007% |
Standard distortion | 0.007% |
Variable aperture | Nein |
Aperture | F7 |
Depth of field | 0.79 mm |
Resolution | 4.6 μm |
MTF | >145 lp/ mm |

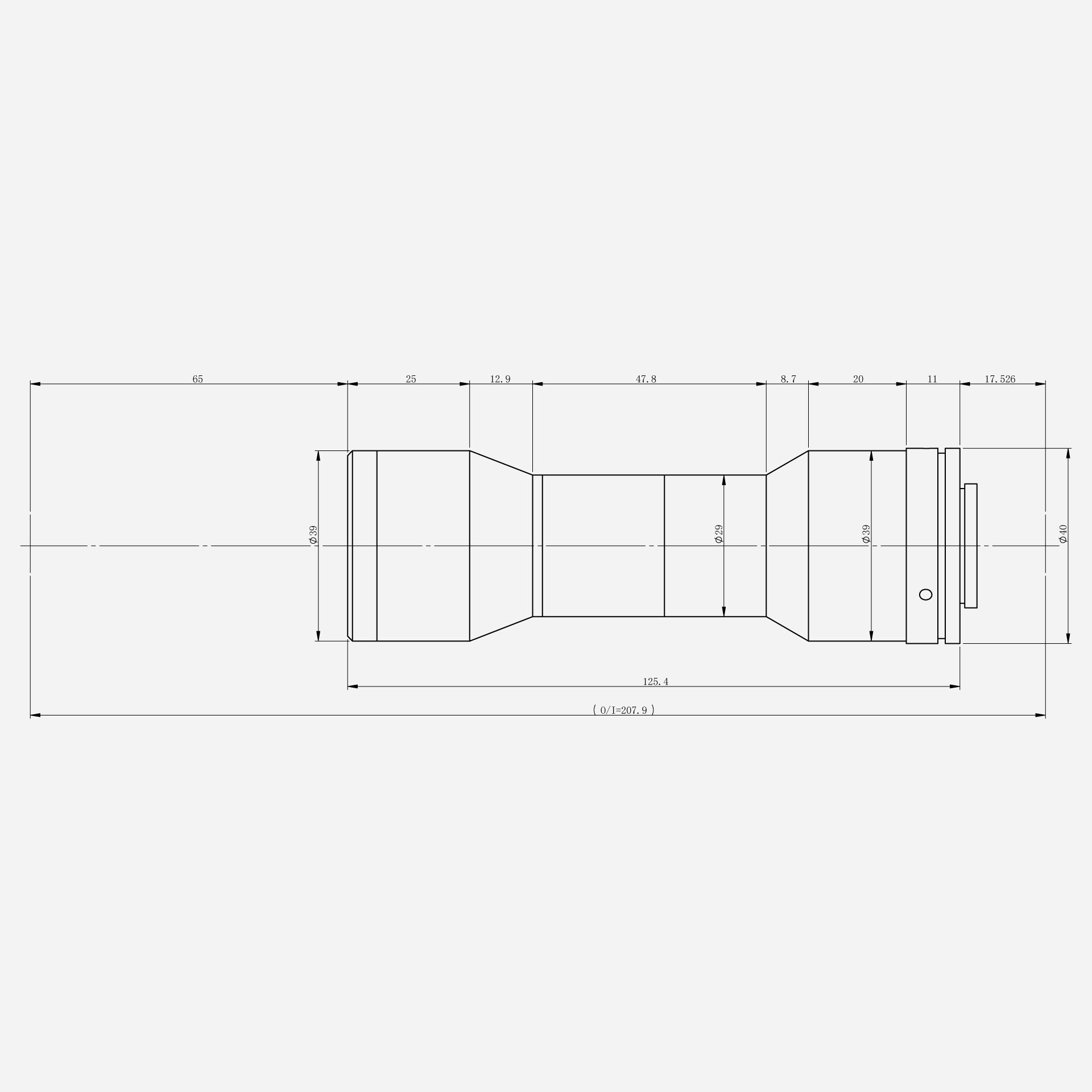

Lens diameter | Ø 39 mm |
Lens length | 125.4 mm |
Weight | nicht eingegeben |
Standard Mount | C-Mount |
