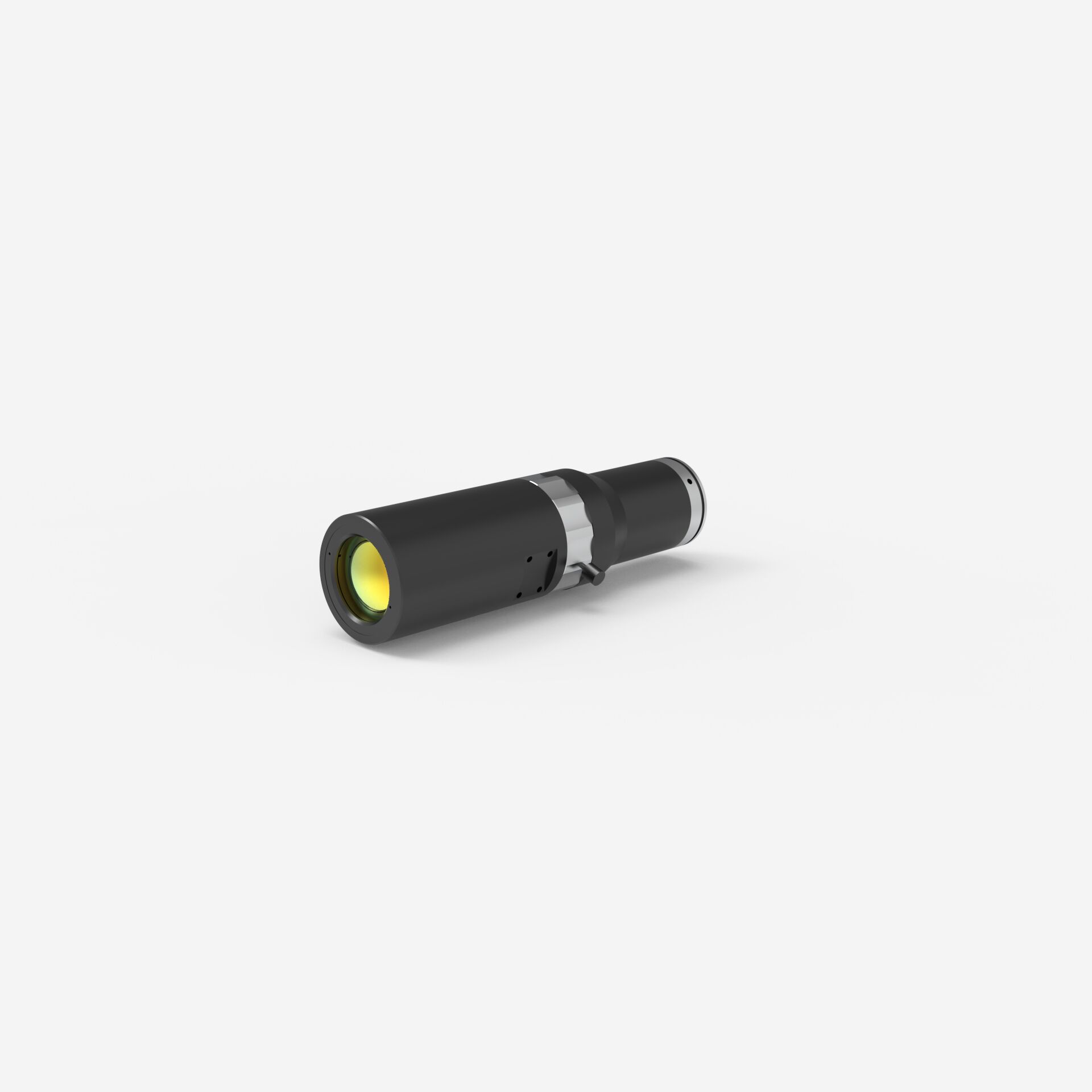

Lens specification | XF-10MDT3X65-1C-VI |
|---|---|
Lens type: | Objektseitig Telezentrisch |
Magnification | 3 |
coaxial insertion | Nein |
Image circle | Ø 17.6 mm |
Object circle | Ø 5.9 mm |
Working distance | 65 mm±3% |
Max. Sensor size | 1.1″ |
Max. Telecentricity error | 0.21° |
Max. Distortion | 0.085% |
Standard distortion | 0.085% |
Variable aperture | Ja |
Aperture | F9.5-F147.3 |
Depth of field | 0.12-1.8 mm |
Resolution | 2.1-32.3 μm |
MTF | >105-7 lp/ mm |

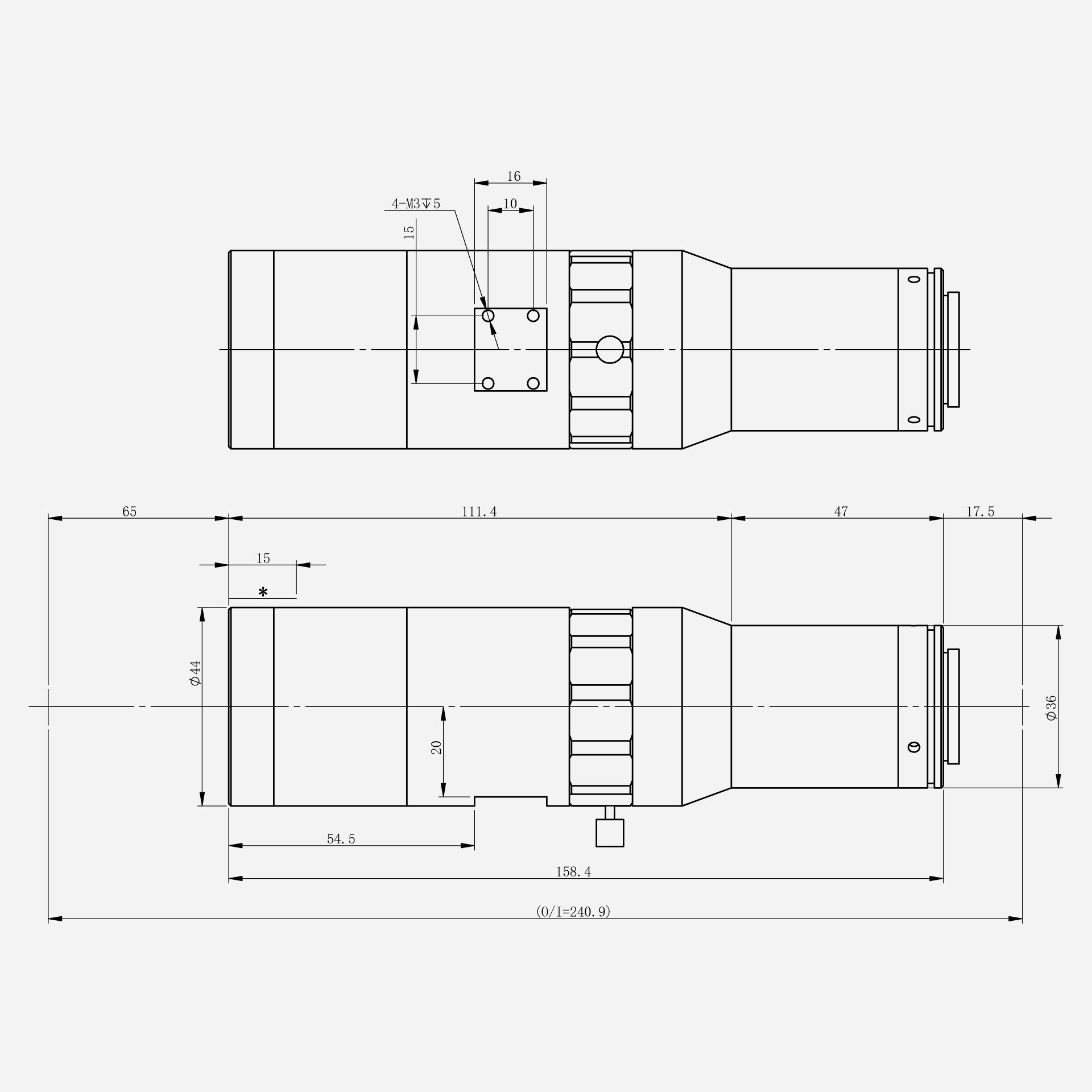

Lens diameter | Ø 44 mm |
Lens length | 158.4 mm |
Weight | nicht eingegeben |
Standard Mount | C-Mount |
