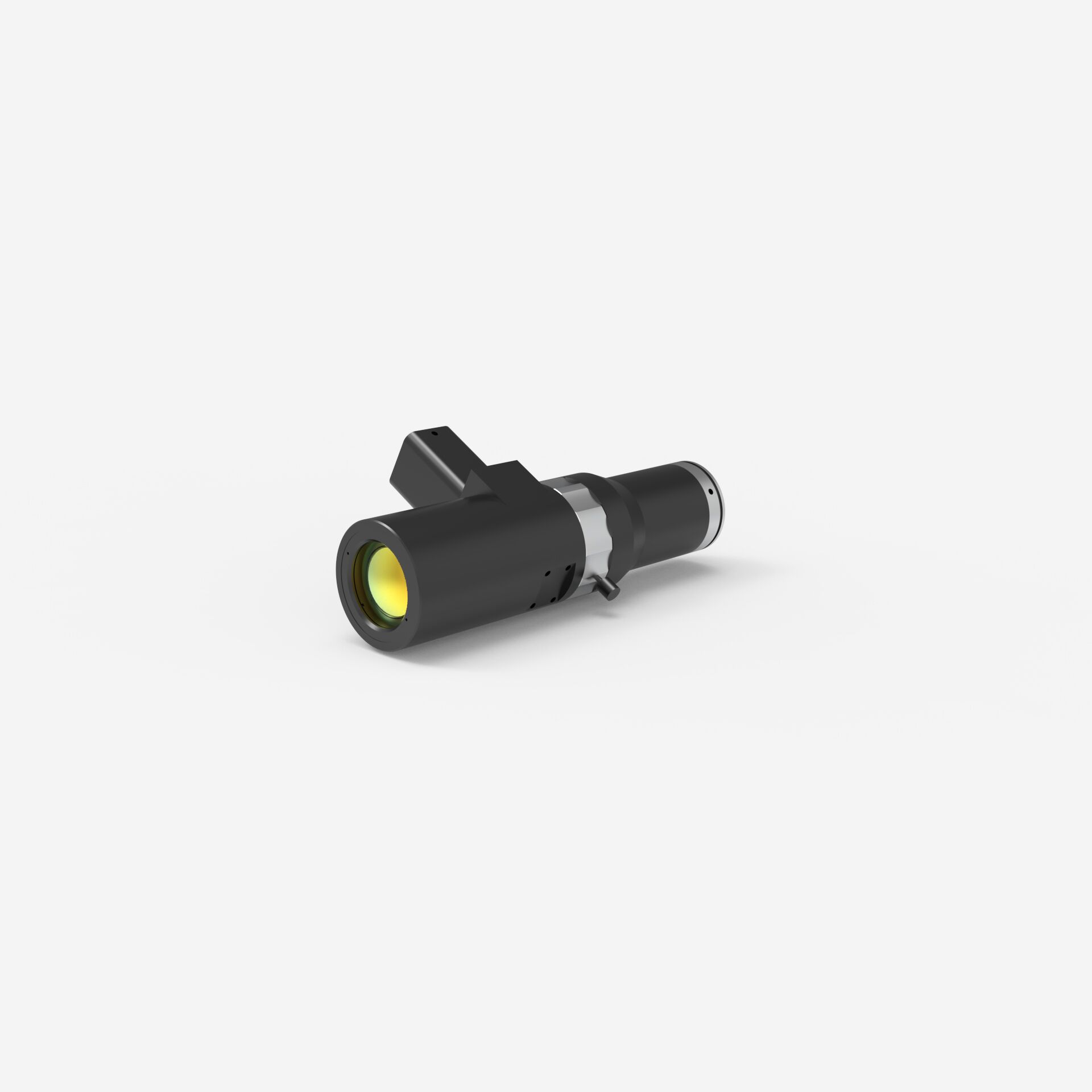

XF-10MDT3X65D-1C-VI

Object-Telezentrisches Objektiv für 1.1″ Sensor

Vergrößerung 3.0

Arbeitsabstand 65mm

Koaxiale Einblendung

In die Anfrageliste legen
Lens specification
XF-10MDT3X65D-1C-VI
Lens type:
Objektseitig Telezentrisch
Magnification
3
coaxial insertion
Ja
Image circle
Ø 17.6 mm
Object circle
Ø 5.9 mm
Working distance
65 mm±3%
Max. Sensor size
1.1″
Max. Telecentricity error
0.21°
Max. Distortion
0.085%
Standard distortion
0.085%
Variable aperture
Ja
Aperture
F9.5-F147.3
Depth of field
0.12-1.8 mm
Resolution
2.1-32.3 μm
MTF
>105-7 lp/ mm
Lens diameter
Ø 44 mm
Lens length
158.4 mm
Weight
nicht eingegeben
Standard Mount
C-Mount
