Lighting specification | XF-PTI080-90 |
|---|---|
Beam diameter: | Ø 80mm |
Working distance: | 160.3mm |
Performance: | 5W |
Max. Voltage: | 24V |
Max. Stom: | 208mA |
Available colors: | Rot, Grün, Blau, Weiß |
Variable aperture: | ja |
Connection: | push_pull_stecker |
Design: | 90grad |

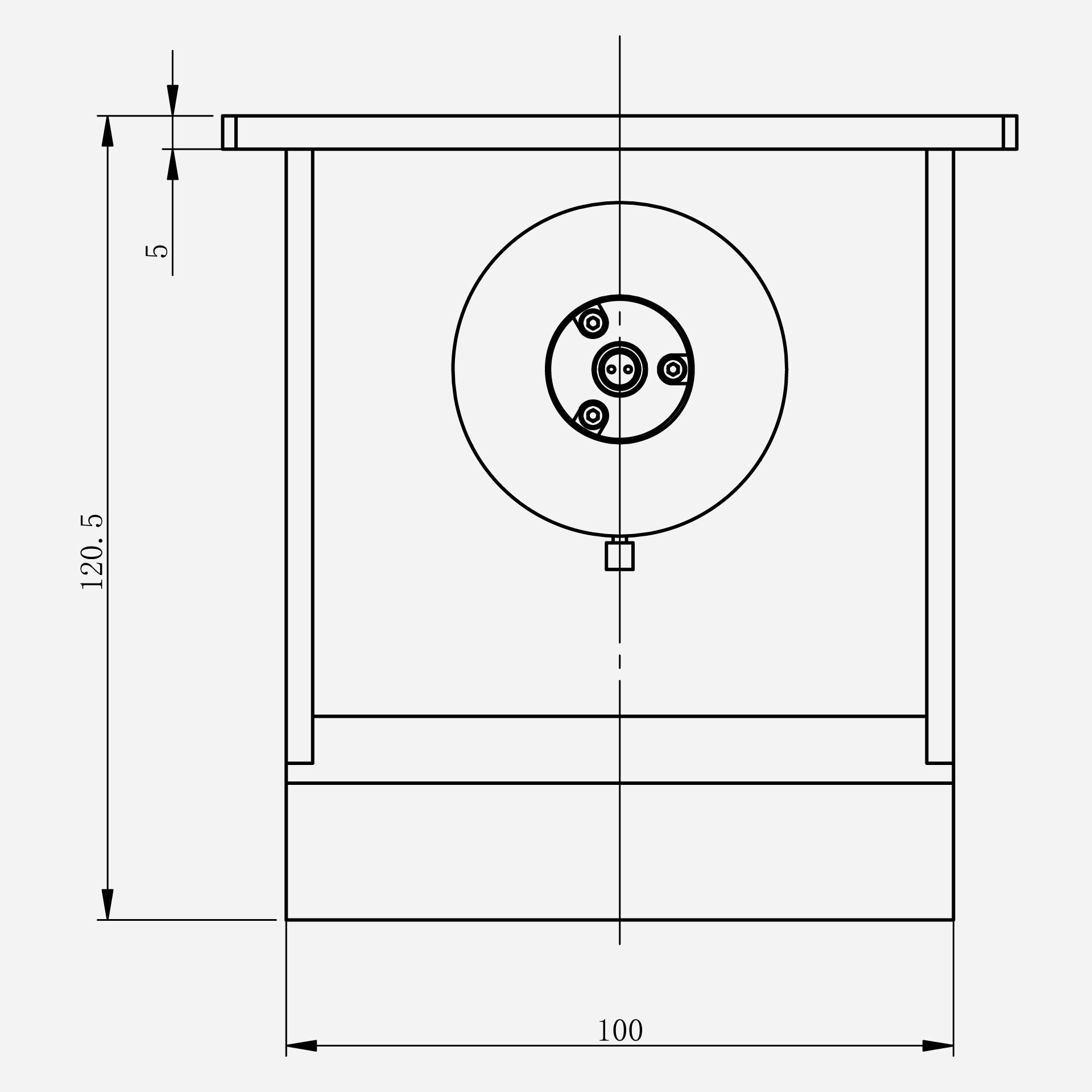

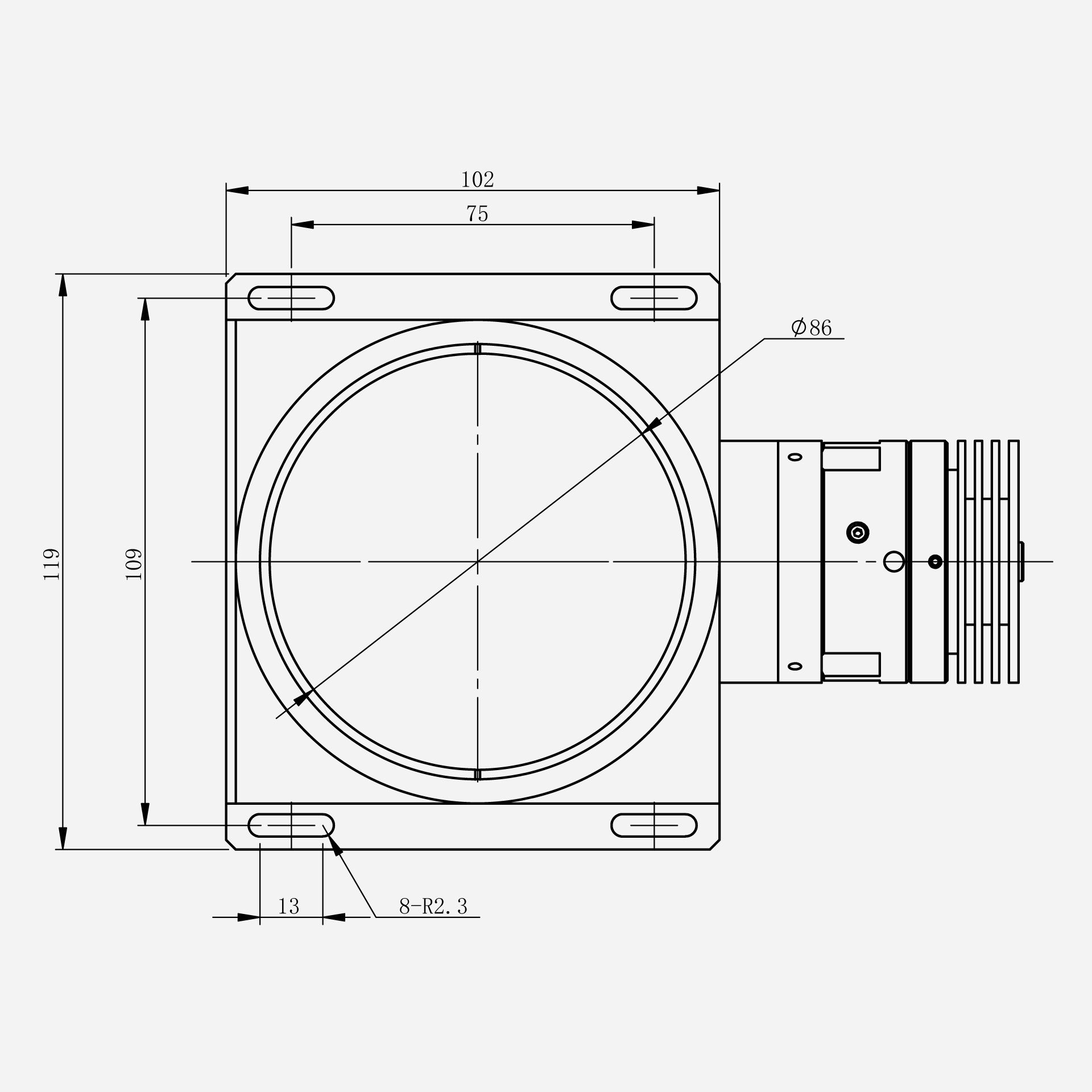

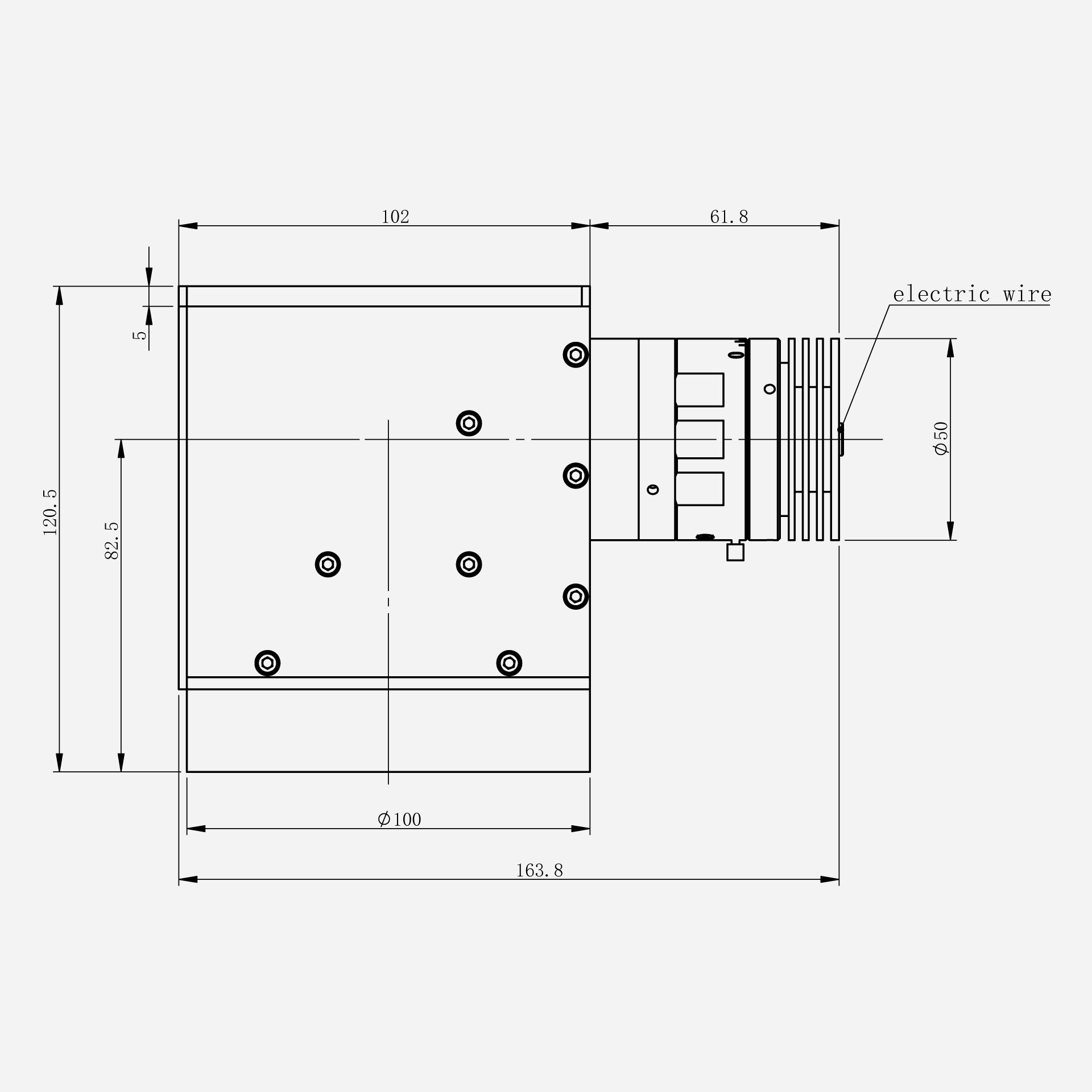

Dimensions (WxHxD): | 119 x 163.8 x 120.5 |
Weight: | 1.55Kg |
Variable aperture specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Diameter from
Diaphragm (mm): | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Numerical aperture: | 0.003 | 0.006 | 0.009 | 0.012 | 0.016 | 0.019 | 0.022 | 0.025 | 0.028 | – |
Aperture half angle: | 0.18° | 0.36° | 0.54° | 0.71° | 0.89° | 1.07° | 1.25° | 1.43° | 1.61° | – |
