Lighting specification | XF-PTI100-90 |
|---|---|
Beam diameter: | Ø 100mm |
Working distance: | 165mm |
Performance: | 5W |
Max. Voltage: | 24V |
Max. Stom: | 208mA |
Available colors: | Rot, Grün, Blau, Weiß |
Variable aperture: | ja |
Connection: | push_pull_stecker |
Design: | 90grad |

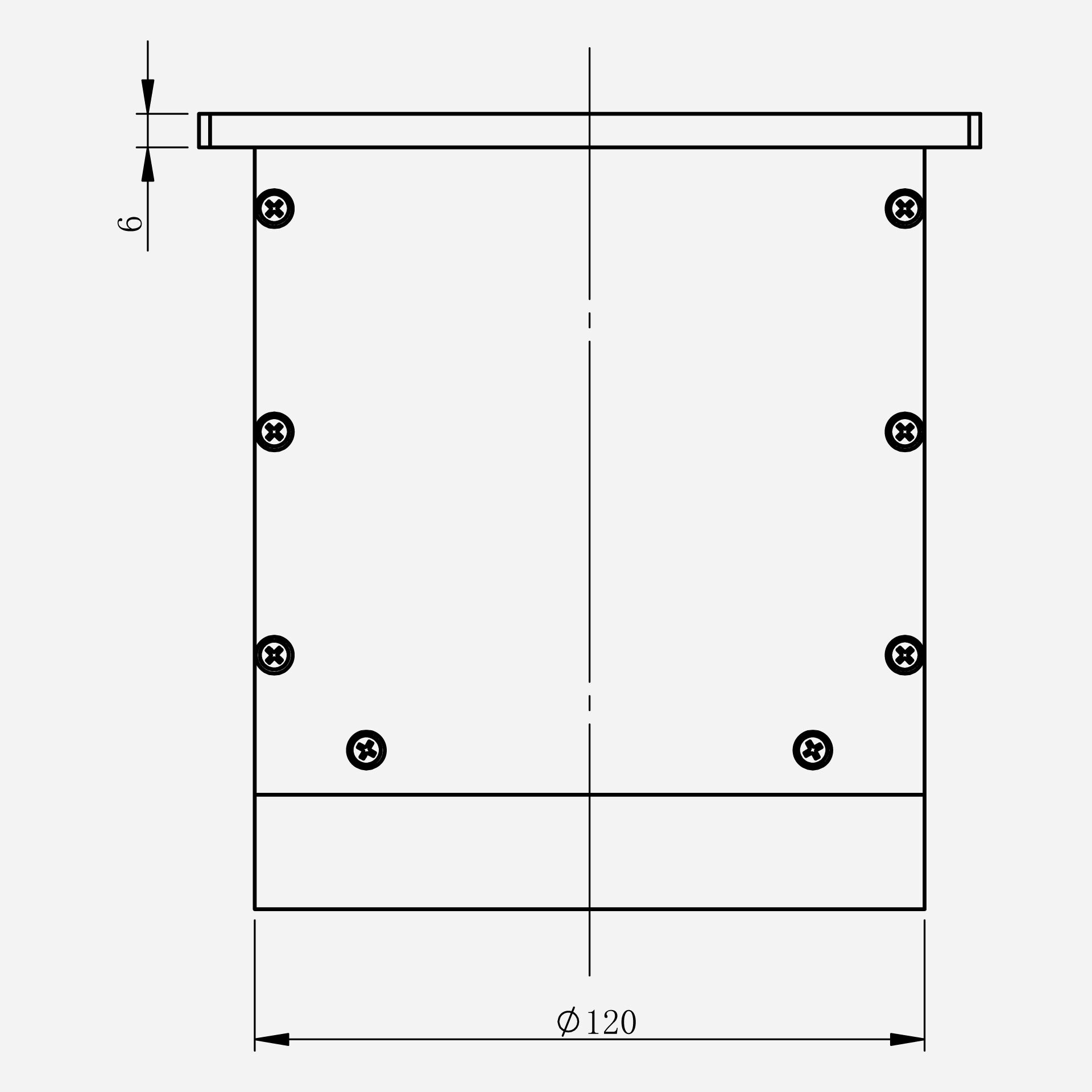

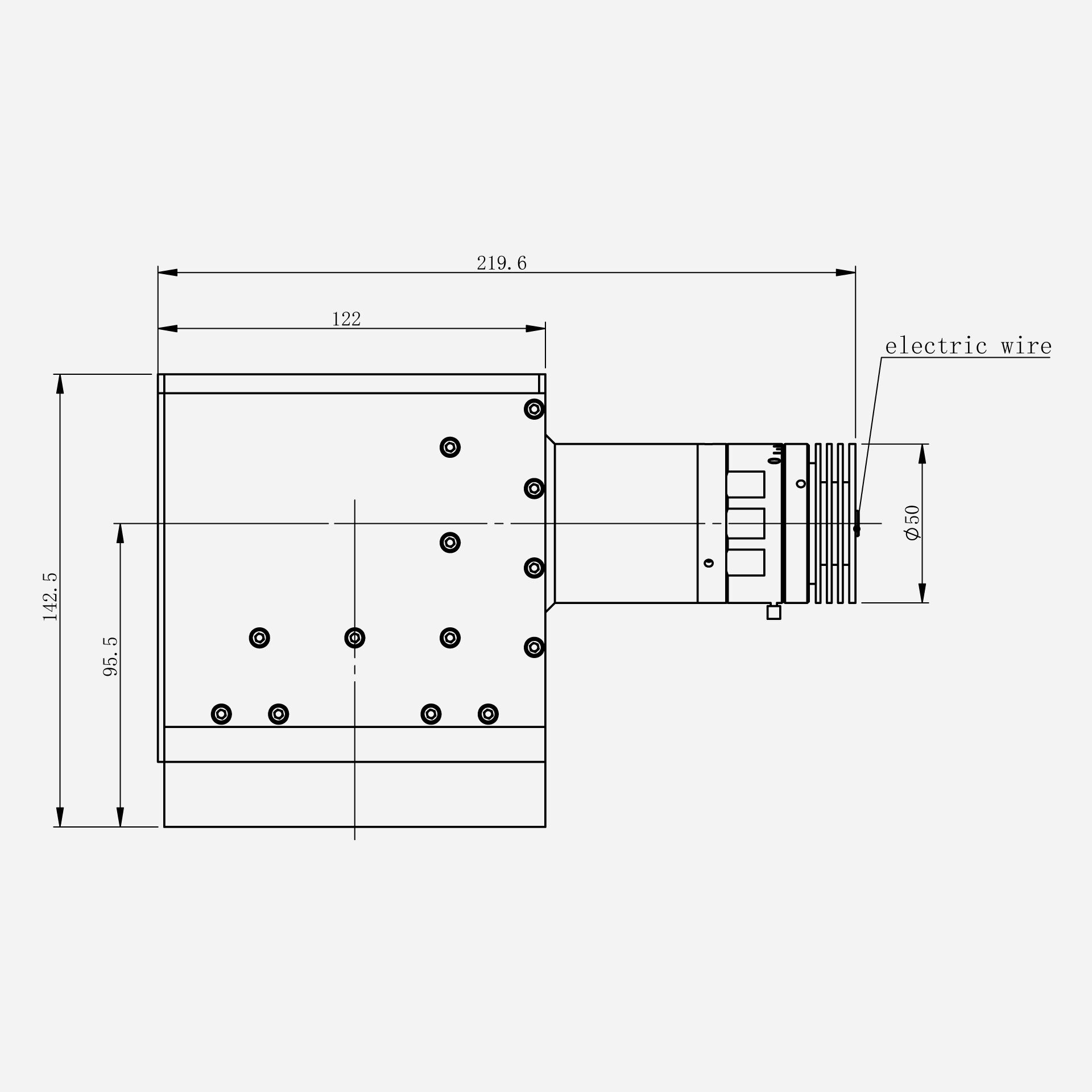

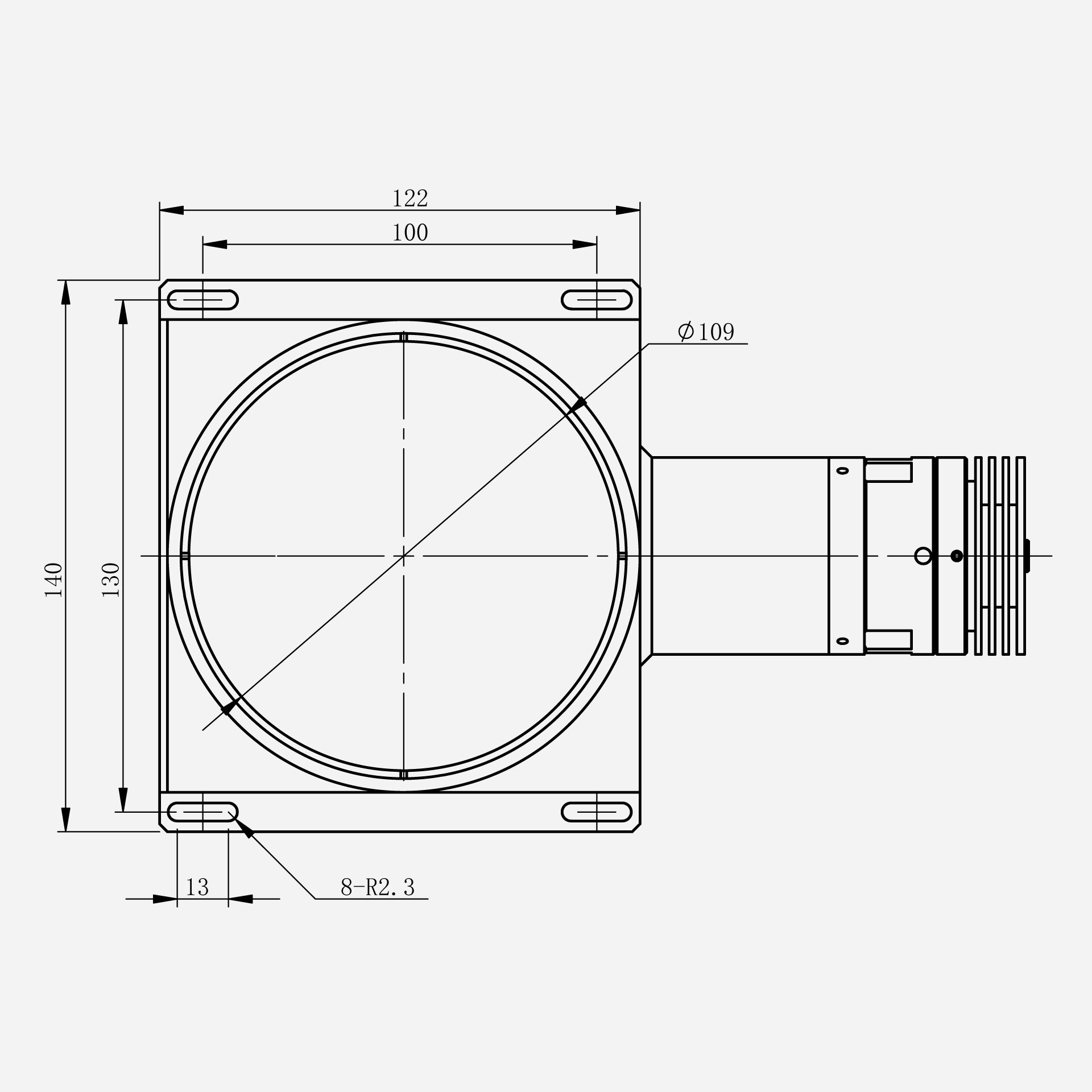

Dimensions (WxHxD): | 140 x 219.6 x 142.5 |
Weight: | 2.50Kg |
Variable aperture specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Diameter from
Diaphragm (mm): | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Numerical aperture: | 0.002 | 0.005 | 0.007 | 0.009 | 0.011 | 0.014 | 0.016 | 0.018 | 0.020 | 0.025 |
Aperture half angle: | 0.13° | 0.26° | 0.39° | 0.52° | 0.65° | 0.78° | 0.91° | 1.04° | 1.17° | 1.30° |
