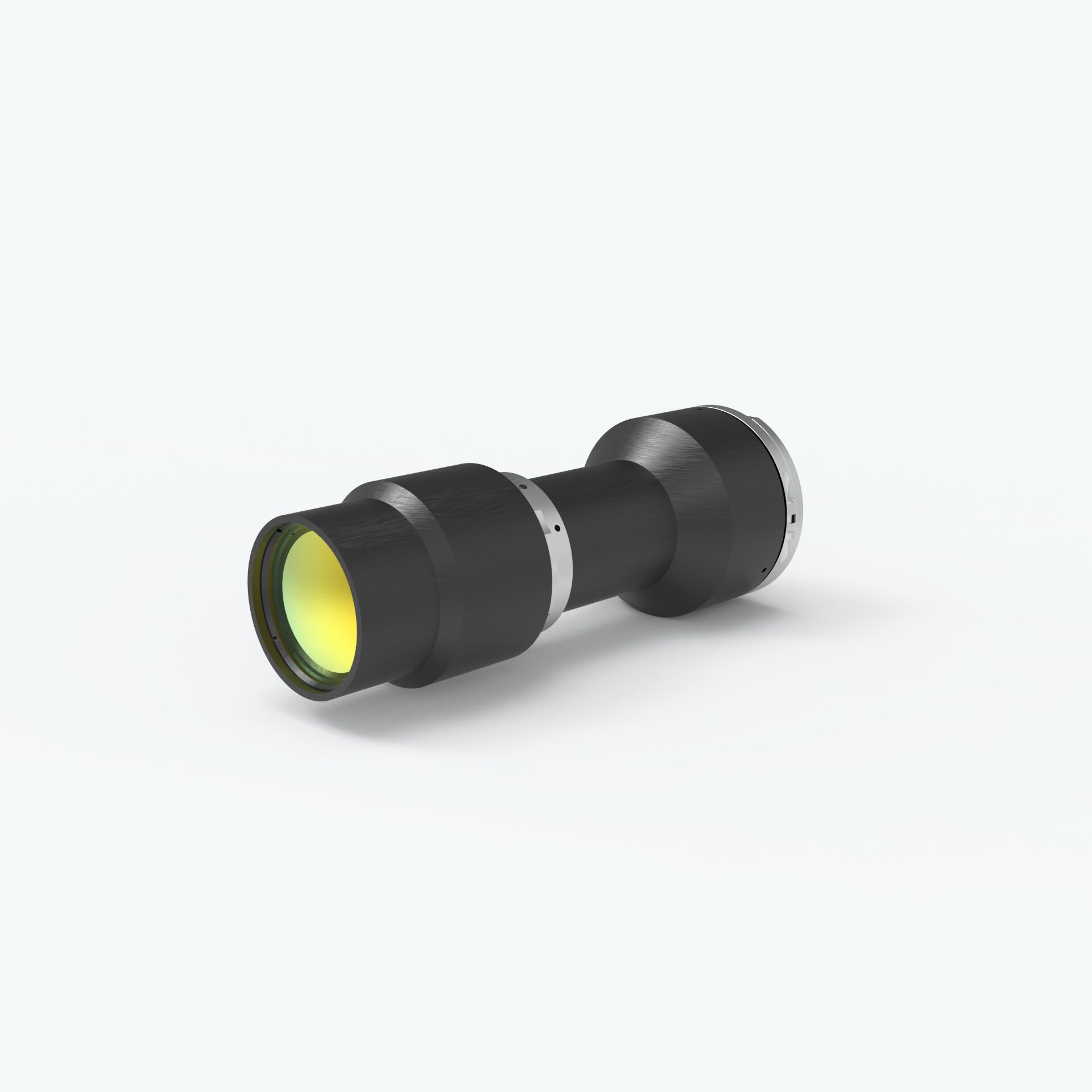

XF-PTL03732
Bi-Telezentrisches Objektiv für APS-C Sensor (32.5mm)
Vergrößerung 0.896
Arbeitsabstand 110mm
Lens specification | XF-PTL03732 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 0.896 |
coaxial insertion | nein |
Image circle | Ø 32.5 mm |
Object circle | Ø 36.27232143 mm |
Working distance | 110 mm±3% |
Max. Sensor size | APS-C |
Max. Telecentricity error | 0.09° |
Max. Distortion | 0.1% |
Standard distortion | 0.1% |
Variable aperture | Ja |
Aperture | F7.5-F42.2 |
Depth of field | 1-5.9 mm |
Resolution | 5.5-31.1 μm |
MTF | >135-25 lp/ mm |
Lens diameter | Ø 70 mm |
Lens length | 203.3 mm |
Weight | 1.64 Kg |
Standard Mount | F-Mount |
