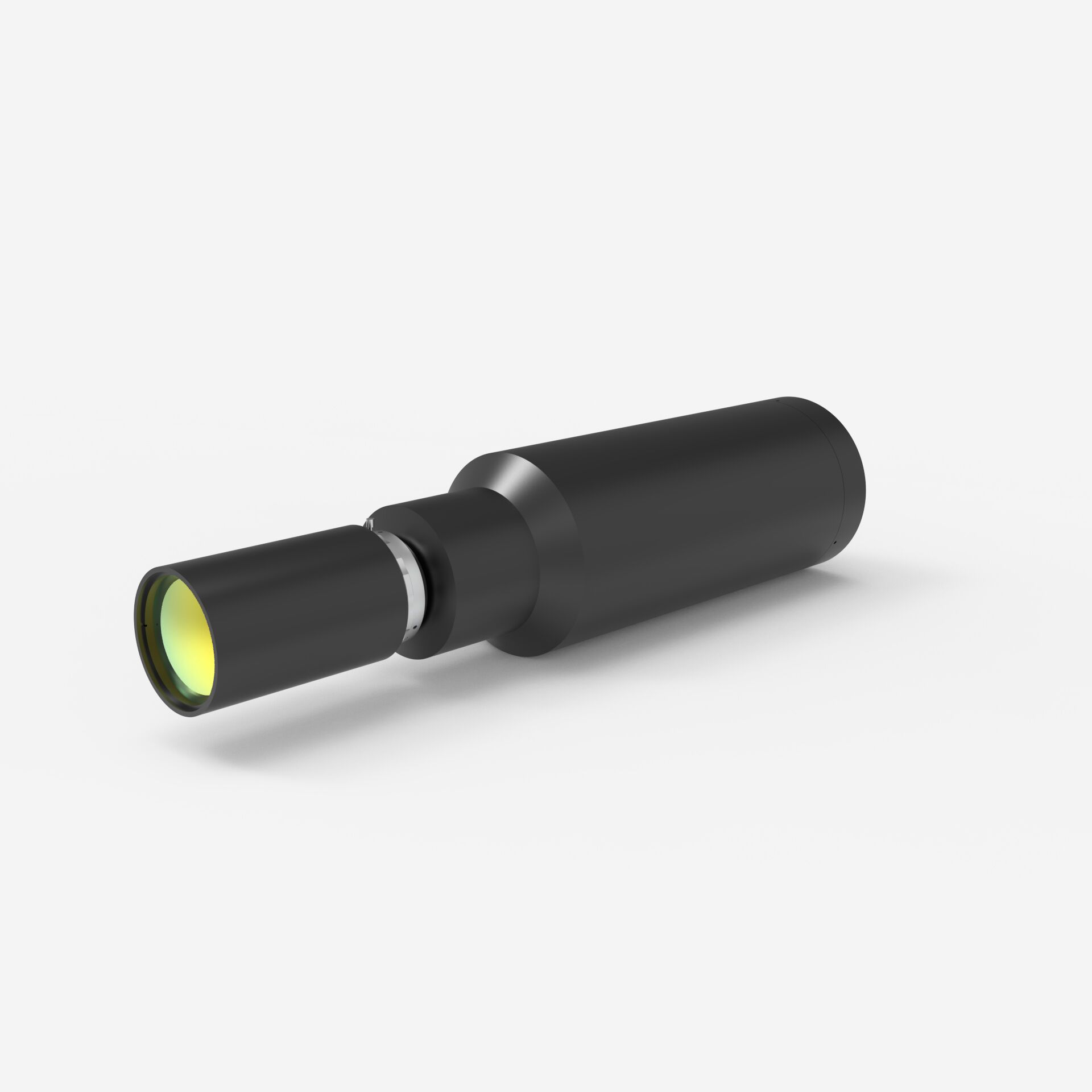

XF-PTL04582

Bi-Telezentrisches Objektiv für 5,1″ Sensor

Vergrößerung 1.92

Arbeitsabstand 120mm

In die Anfrageliste legen
Lens specification
XF-PTL04582
Lens type:
Bi-telezentrisch
Magnification
1.92
coaxial insertion
nein
Image circle
Ø 82 mm
Object circle
Ø 42.7 mm
Working distance
120 mm±3%
Max. Sensor size
62mm
Max. Telecentricity error
0.1°
Max. Distortion
0.1%
Standard distortion
0.1%
Variable aperture
Ja
Aperture
F8-F111.5
Depth of field
0.5@F18 mm
Resolution
6.20@F18 μm
MTF
>58@F18 lp/ mm
Lens diameter
Ø 70 mm
Lens length
472.4 mm
Weight
4.45 Kg
Standard Mount
M95
