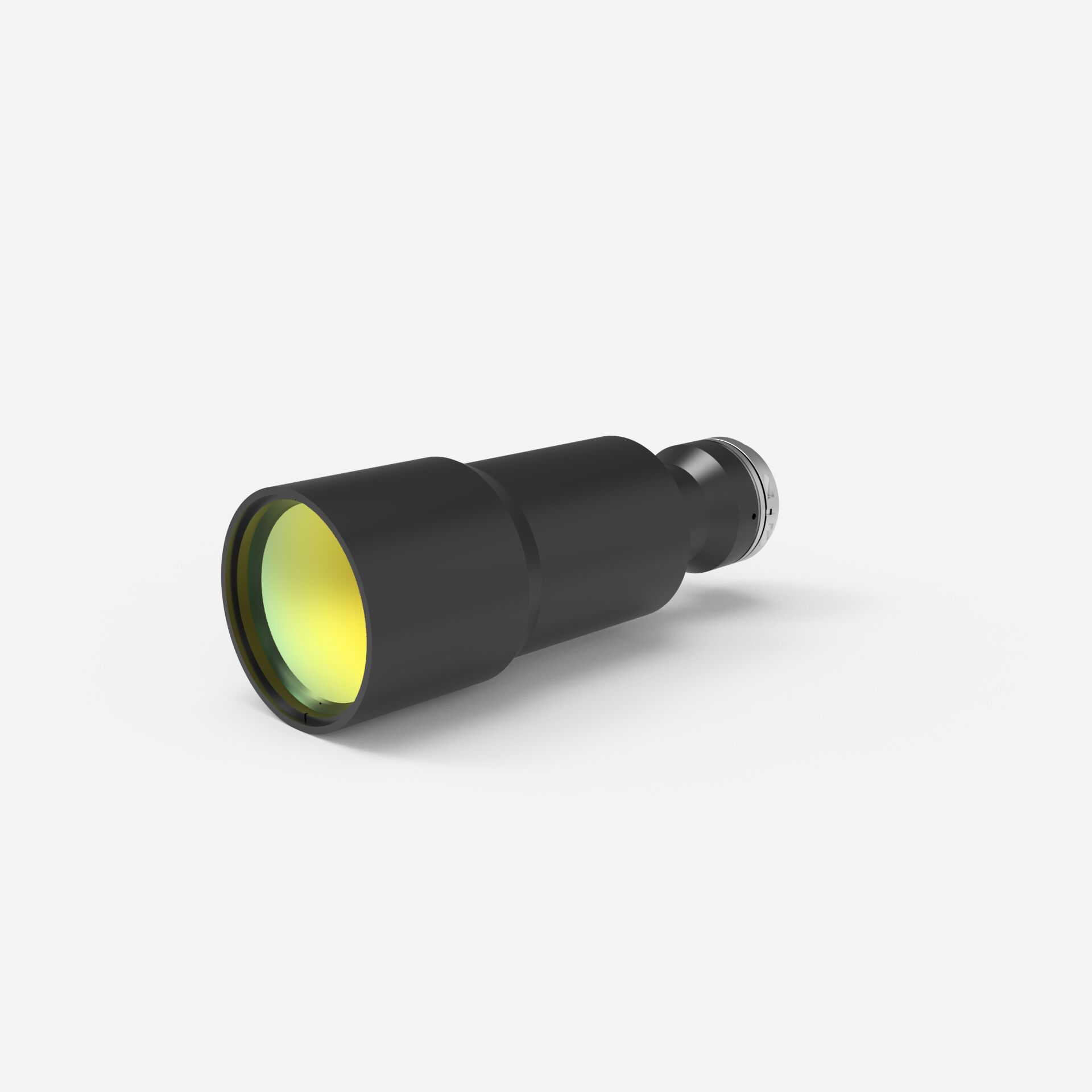

Lens specification | XF-PTL05516 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 0.294 |
coaxial insertion | nein |
Image circle | Ø 16.2 mm |
Object circle | Ø 55.1 mm |
Working distance | 138 mm±3% |
Max. Sensor size | 1″ |
Max. Telecentricity error | 0.09° |
Max. Distortion | 0.095% |
Standard distortion | 0.095% |
Variable aperture | Nein |
Aperture | F6.5 |
Depth of field | 8.3 mm |
Resolution | 14.6 μm |
MTF | >160 lp/ mm |
Lens diameter | Ø 79 mm |
Lens length | 220 mm |
Weight | 1.43 Kg |
Standard Mount | C-Mount |
