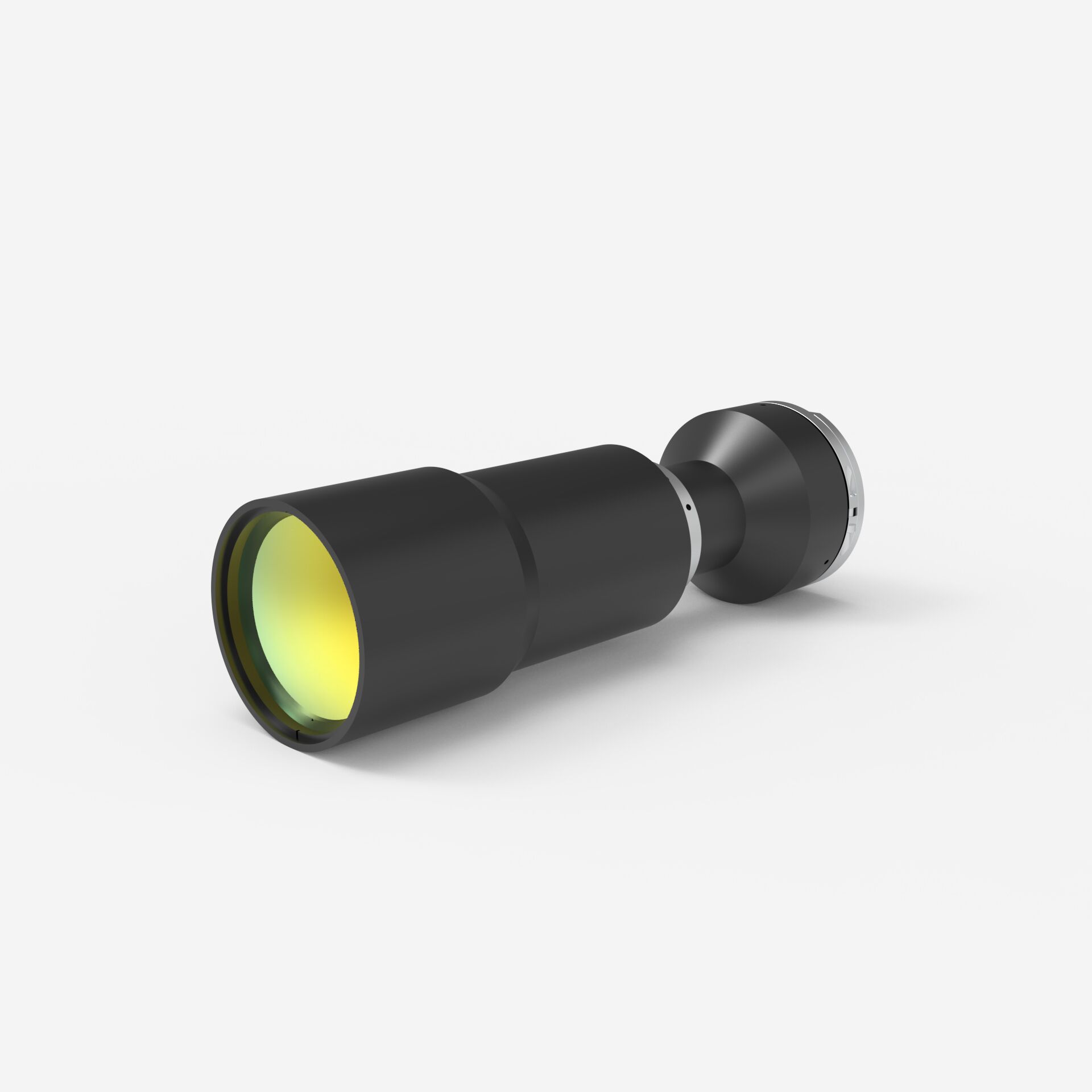

Lens specification | XF-PTL05529 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 0.528 |
coaxial insertion | nein |
Image circle | Ø 29 mm |
Object circle | Ø 54.92424242 mm |
Working distance | 138 mm±3% |
Max. Sensor size | APS-C |
Max. Telecentricity error | 0.06° |
Max. Distortion | 0.058% |
Standard distortion | 0.058% |
Variable aperture | Ja |
Aperture | F7-F37.5 |
Depth of field | 2.7-15 mm |
Resolution | 8.7-46.82 μm |
MTF | >145-27 lp/ mm |

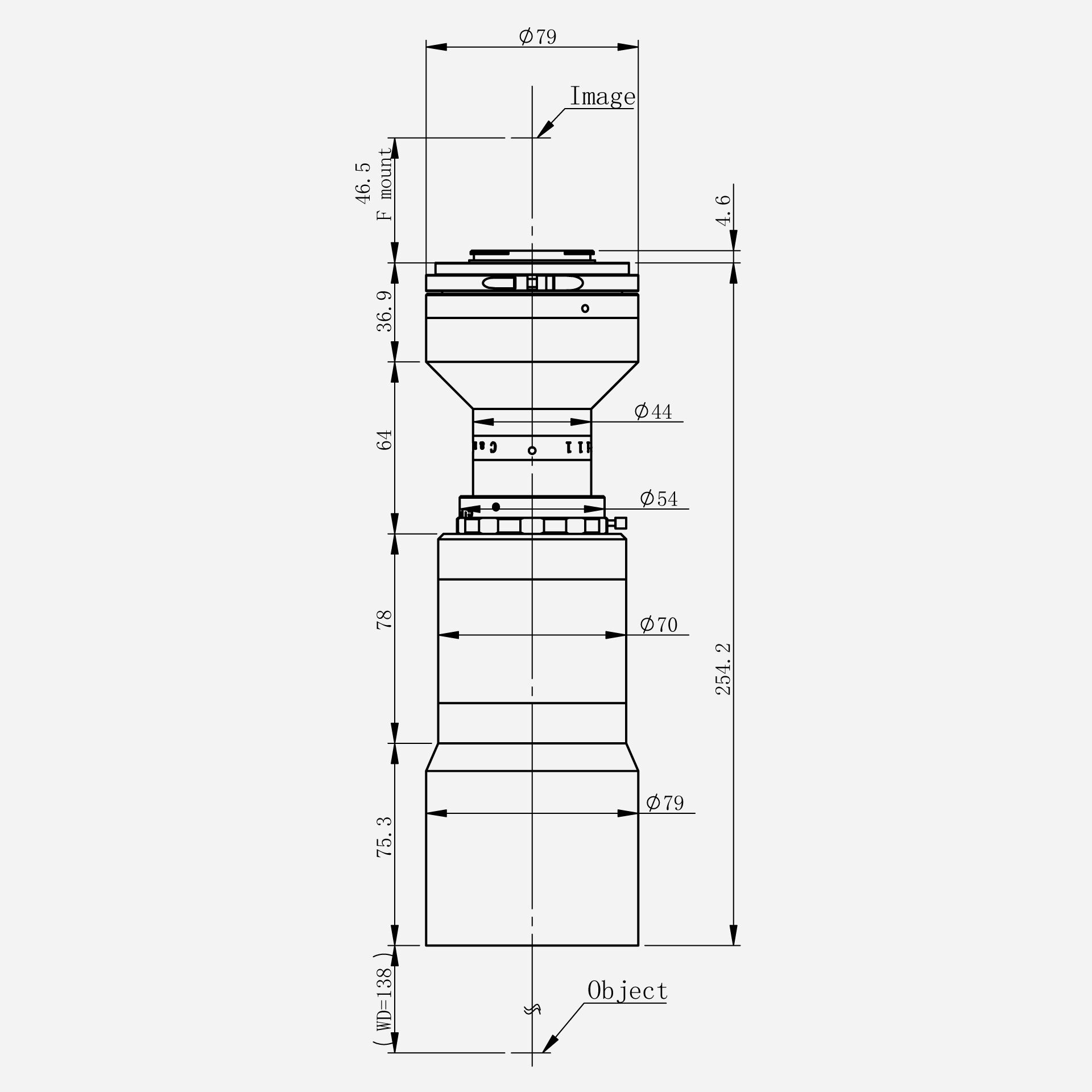

Lens diameter | Ø 79 mm |
Lens length | 254.2 mm |
Weight | 1.93 Kg |
Standard Mount | F-Mount |
