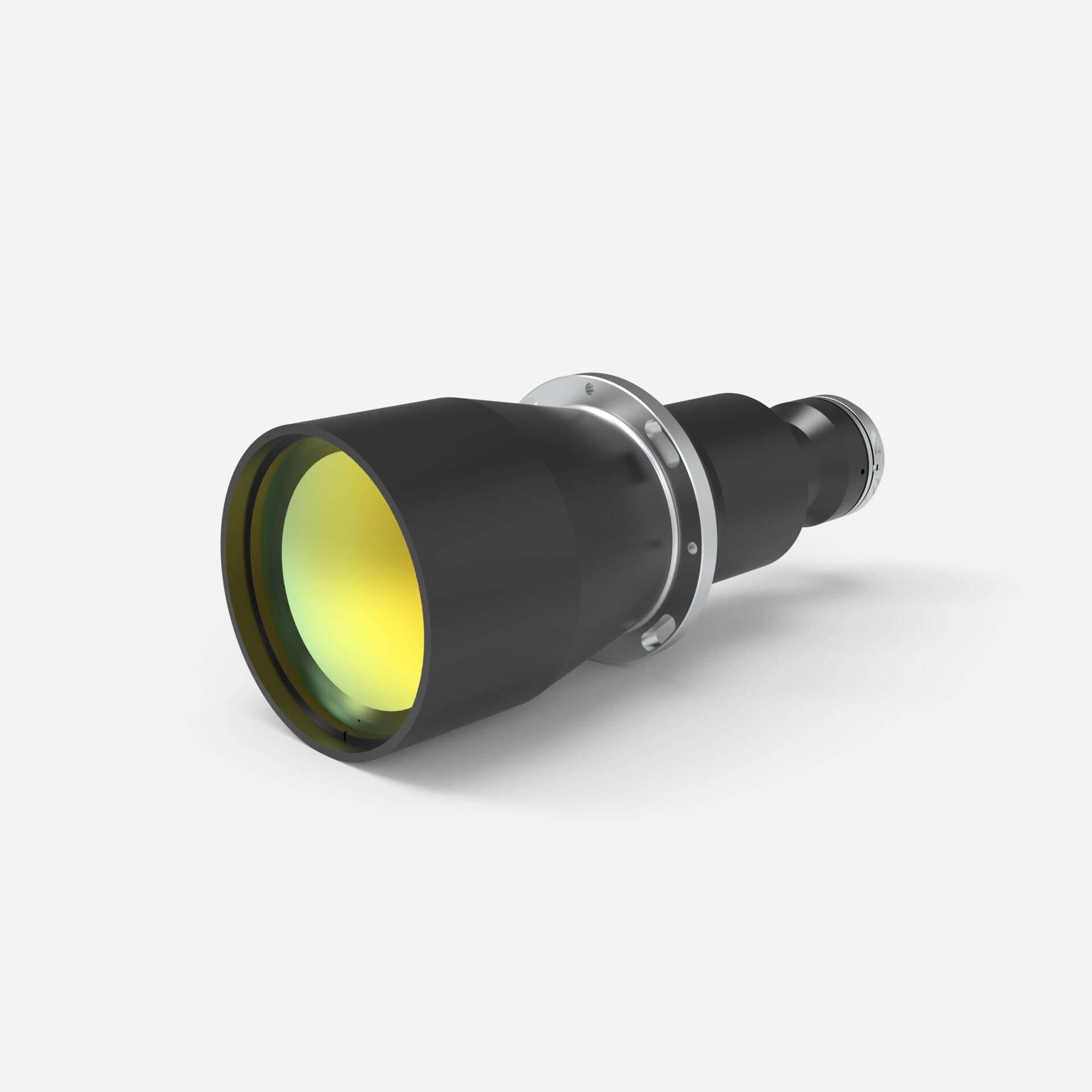

Lens specification | XF-PTL08016 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 0.202 |
coaxial insertion | nein |
Image circle | Ø 16.2 mm |
Object circle | Ø 80.2 mm |
Working distance | 180 mm±3% |
Max. Sensor size | 1″ |
Max. Telecentricity error | 0.06° |
Max. Distortion | 0.037% |
Standard distortion | 0.037% |
Variable aperture | Nein |
Aperture | F6.5 |
Depth of field | 17.6 mm |
Resolution | 21.22 μm |
MTF | >160 lp/ mm |

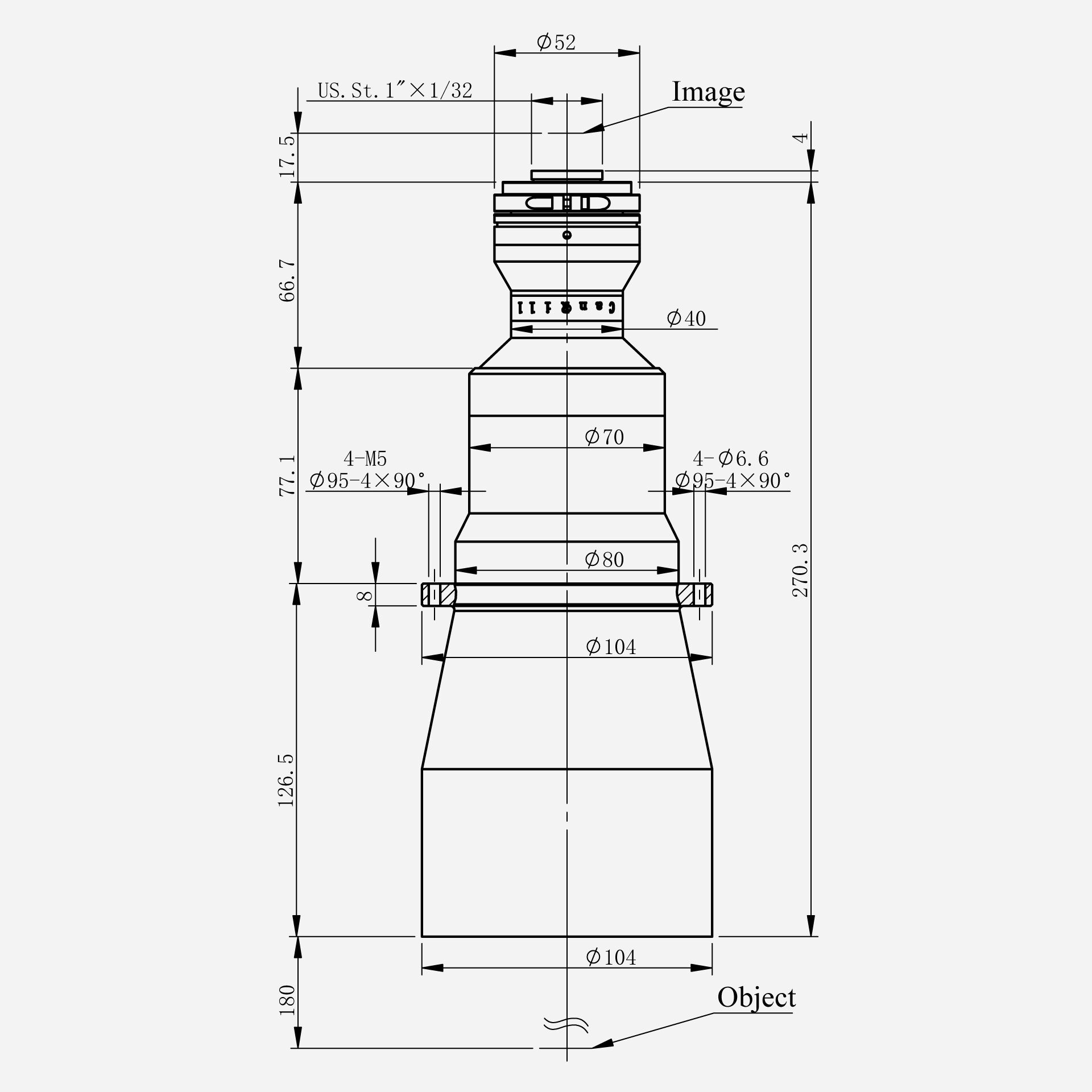

Lens diameter | Ø 104 mm |
Lens length | 270.3 mm |
Weight | 2.07 Kg |
Standard Mount | C-Mount |
