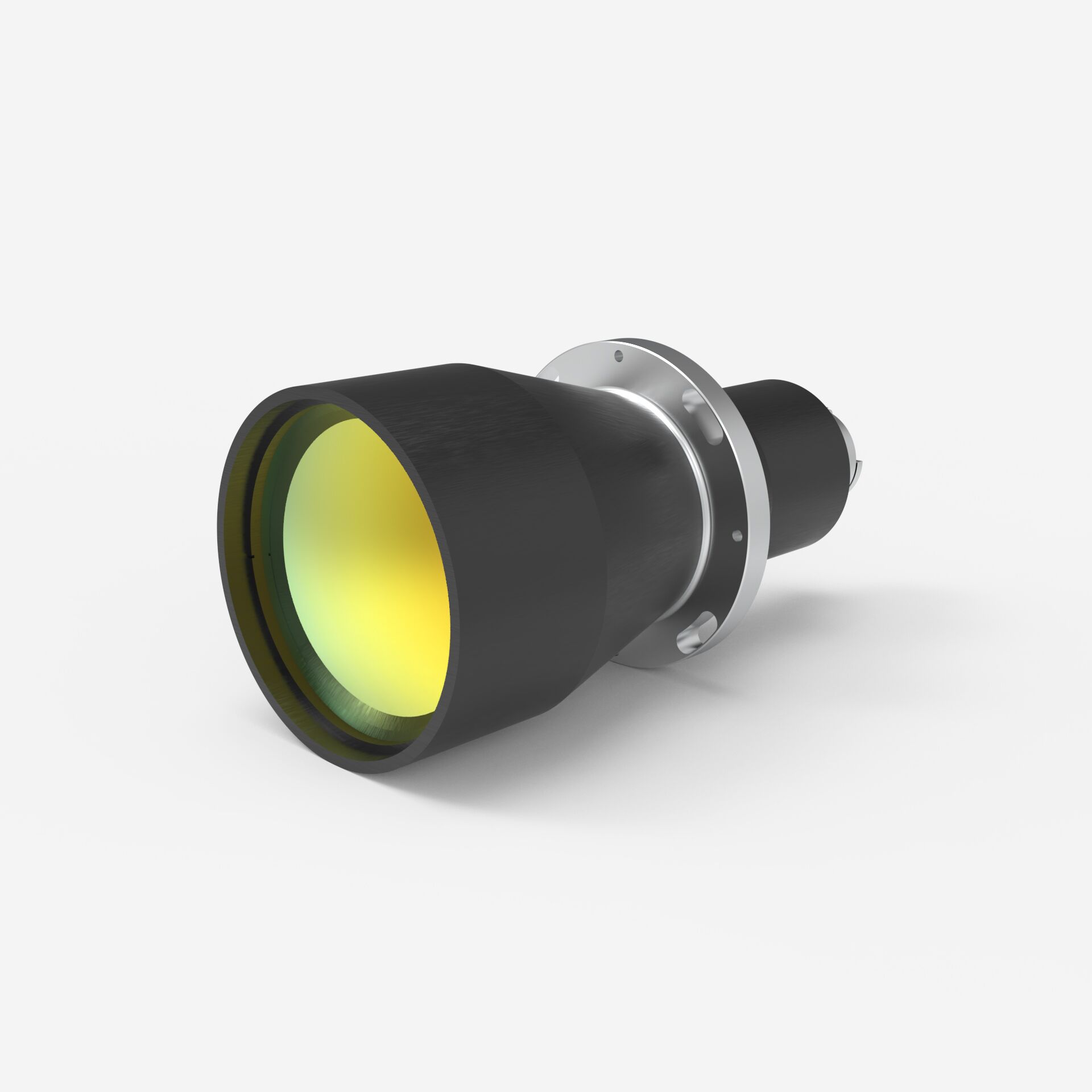

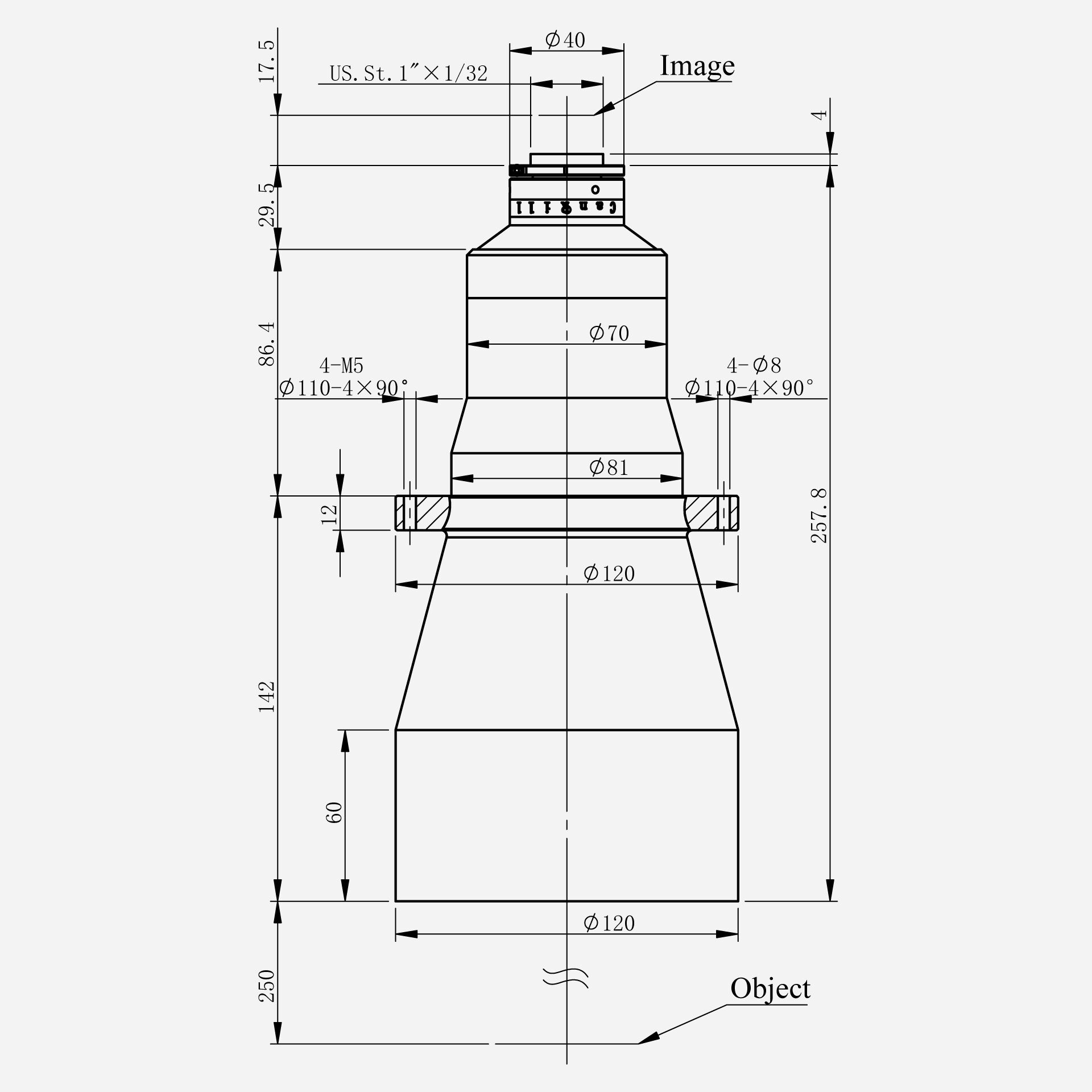

Lens specification | XF-PTL09208 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 0.0874 |
coaxial insertion | nein |
Image circle | Ø 8 mm |
Object circle | Ø 91.5 mm |
Working distance | 250 mm±3% |
Max. Sensor size | 1/2″ |
Max. Telecentricity error | 0.07° |
Max. Distortion | 0.163% |
Standard distortion | 0.163% |
Variable aperture | Nein |
Aperture | F5.5 |
Depth of field | 79.8 mm |
Resolution | 41.5 μm |
MTF | >185 lp/ mm |
Lens diameter | Ø 120 mm |
Lens length | 257.8 mm |
Weight | 2.49 Kg |
Standard Mount | C-Mount |
