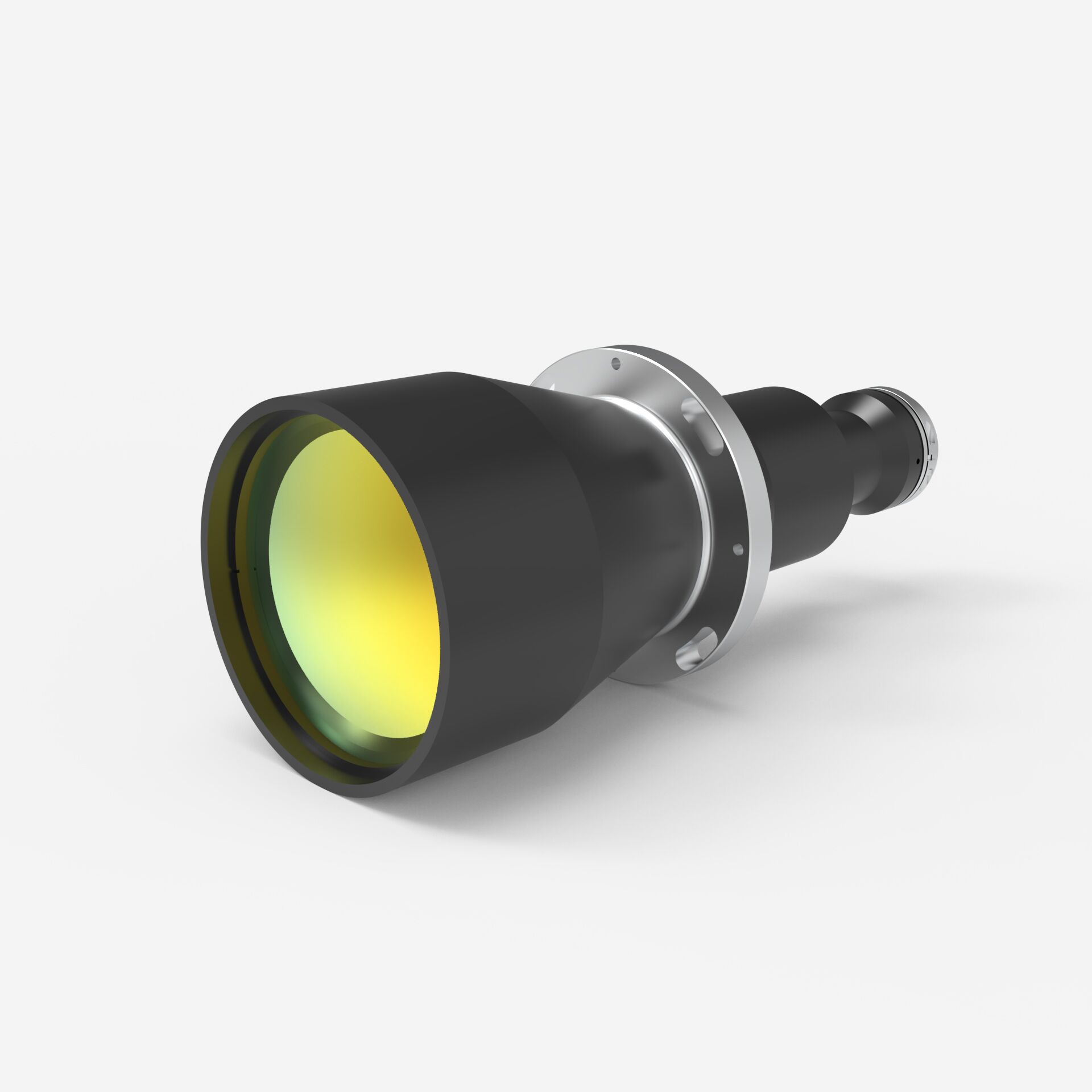

XF-PTL09219

Bi-Telezentrisches Objektiv für 1,1″ Sensor

Vergrößerung 0.202

Arbeitsabstand 250mm

In die Anfrageliste legen
Lens specification
XF-PTL09219
Lens type:
Bi-telezentrisch
Magnification
0.202
coaxial insertion
nein
Image circle
Ø 18.5 mm
Object circle
Ø 91.58415842 mm
Working distance
250 mm±3%
Max. Sensor size
1.1″
Max. Telecentricity error
0.06°
Max. Distortion
0.037%
Standard distortion
0.037%
Variable aperture
Nein
Aperture
F6.5
Depth of field
17.5 mm
Resolution
21.3 μm
MTF
>160 lp/ mm
Lens diameter
Ø 120 mm
Lens length
305 mm
Weight
2.68 Kg
Standard Mount
C-Mount
