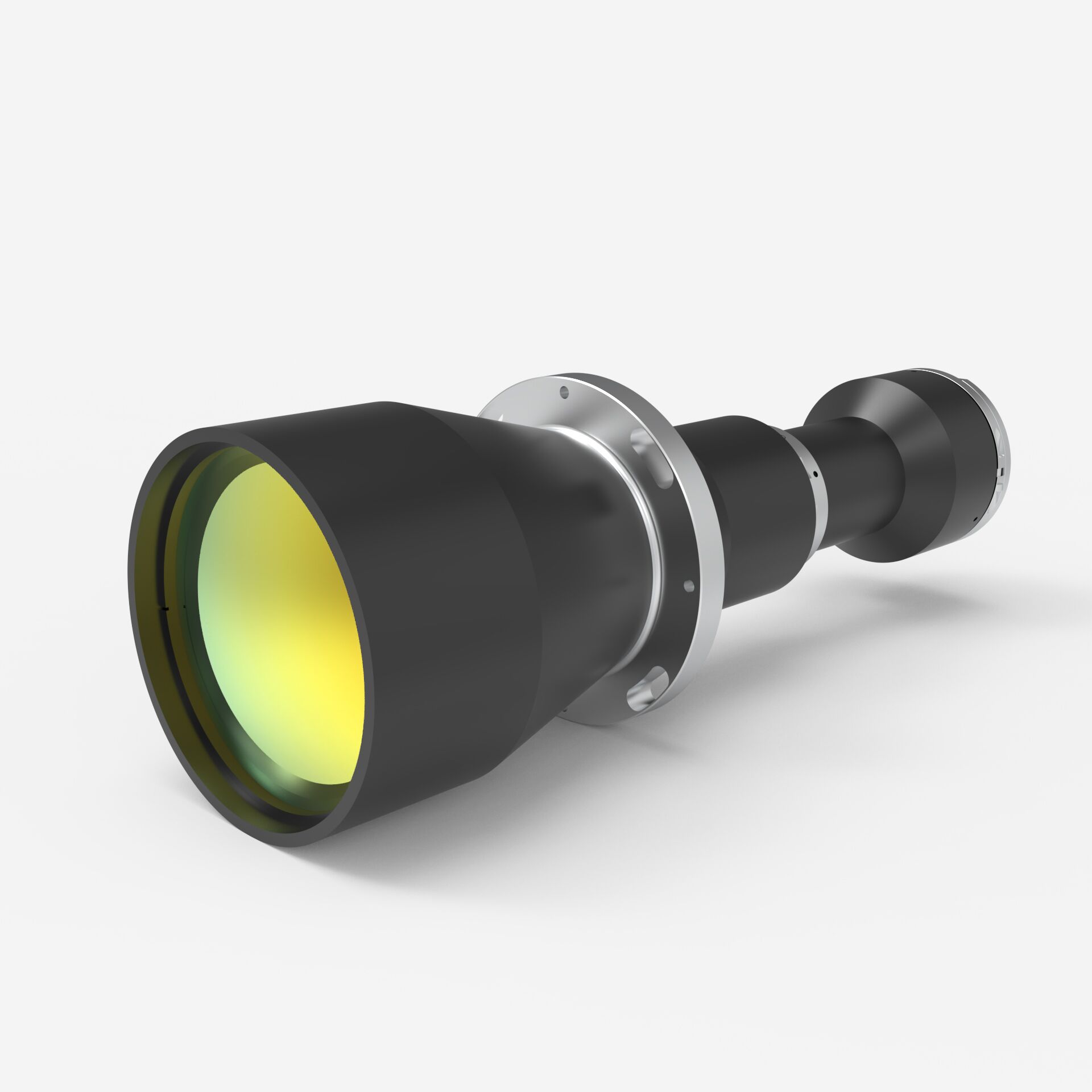

Lens specification | XF-PTL09232 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 0.359 |
coaxial insertion | nein |
Image circle | Ø 32.5 mm |
Object circle | Ø 90.52924791 mm |
Working distance | 250 mm±3% |
Max. Sensor size | APS-C |
Max. Telecentricity error | 0.06° |
Max. Distortion | 0.08% |
Standard distortion | 0.08% |
Variable aperture | Ja |
Aperture | F7.5-F42.2 |
Depth of field | 6.4-36.5 mm |
Resolution | 13.8-77.7 μm |
MTF | >135-25 lp/ mm |
Lens diameter | Ø 120 mm |
Lens length | 353.4 mm |
Weight | 3.31 Kg |
Standard Mount | F-Mount |
