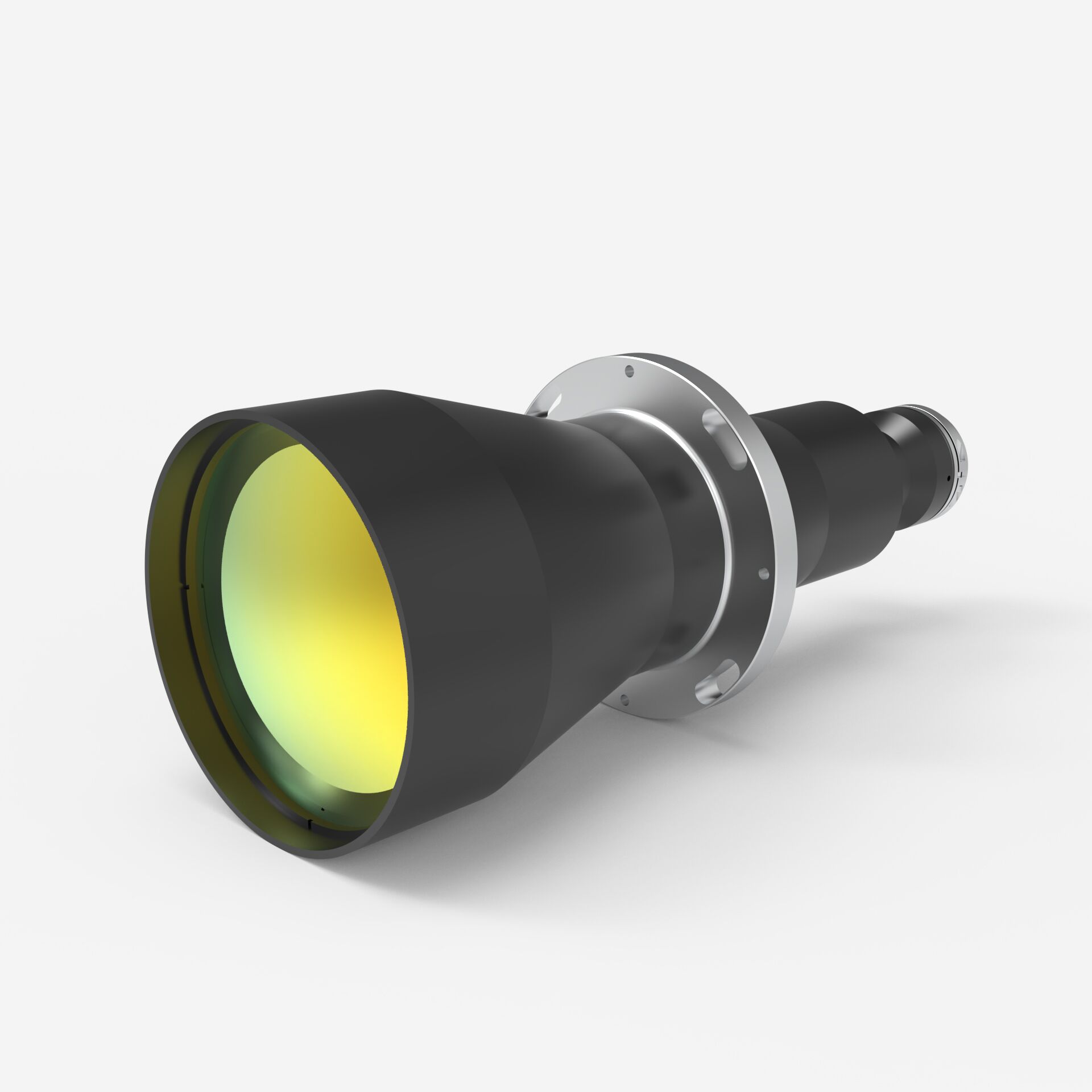

Lens specification | XF-PTL11016 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 0.147 |
coaxial insertion | nein |
Image circle | Ø 16.2 mm |
Object circle | Ø 110.2 mm |
Working distance | 250 mm±3% |
Max. Sensor size | 1″ |
Max. Telecentricity error | 0.06° |
Max. Distortion | 0.052% |
Standard distortion | 0.052% |
Variable aperture | Nein |
Aperture | F6.5 |
Depth of field | 33.5 mm |
Resolution | 29.2 μm |
MTF | >160 lp/ mm |

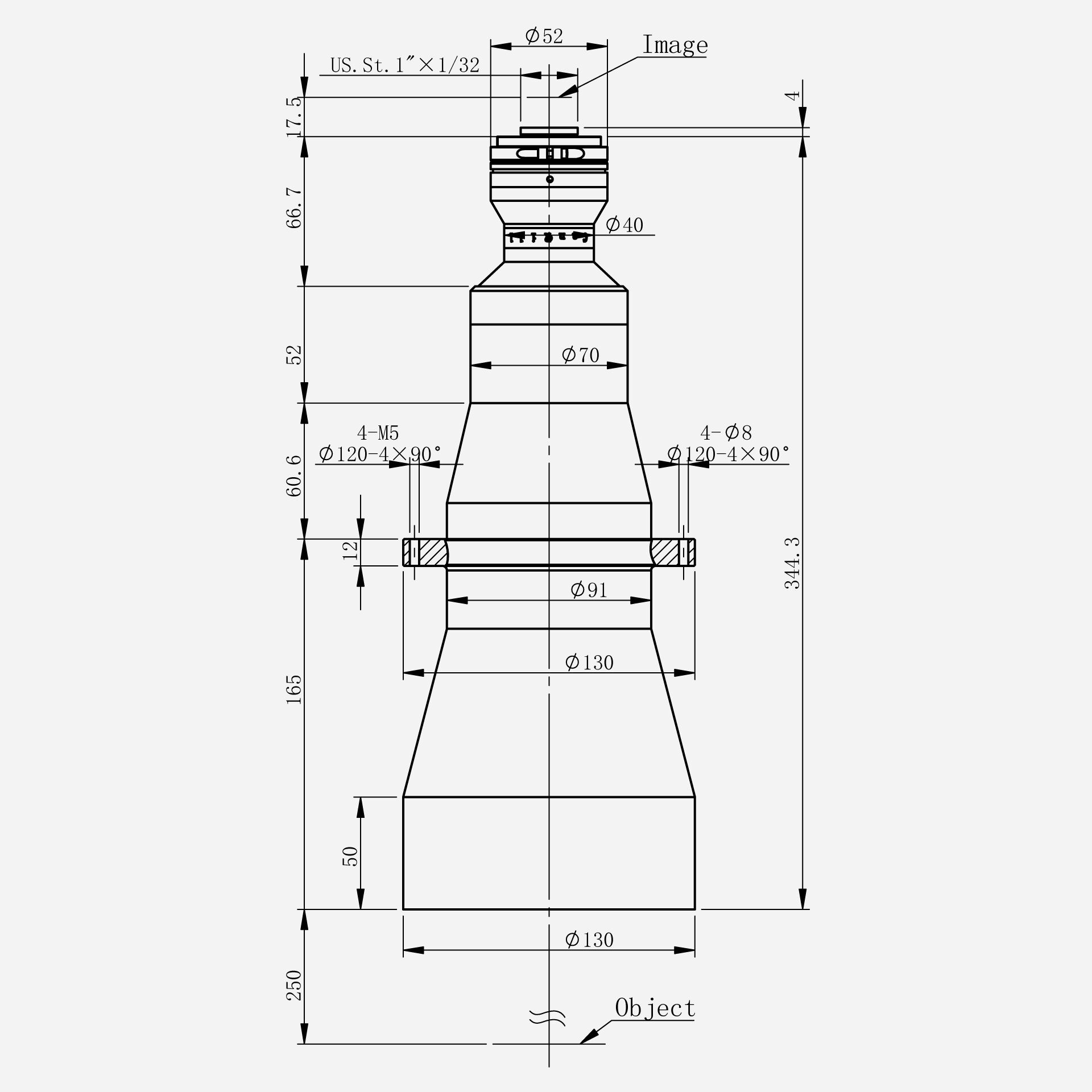

Lens diameter | Ø 130 mm |
Lens length | 344.3 mm |
Weight | 3.51 Kg |
Standard Mount | C-Mount |
