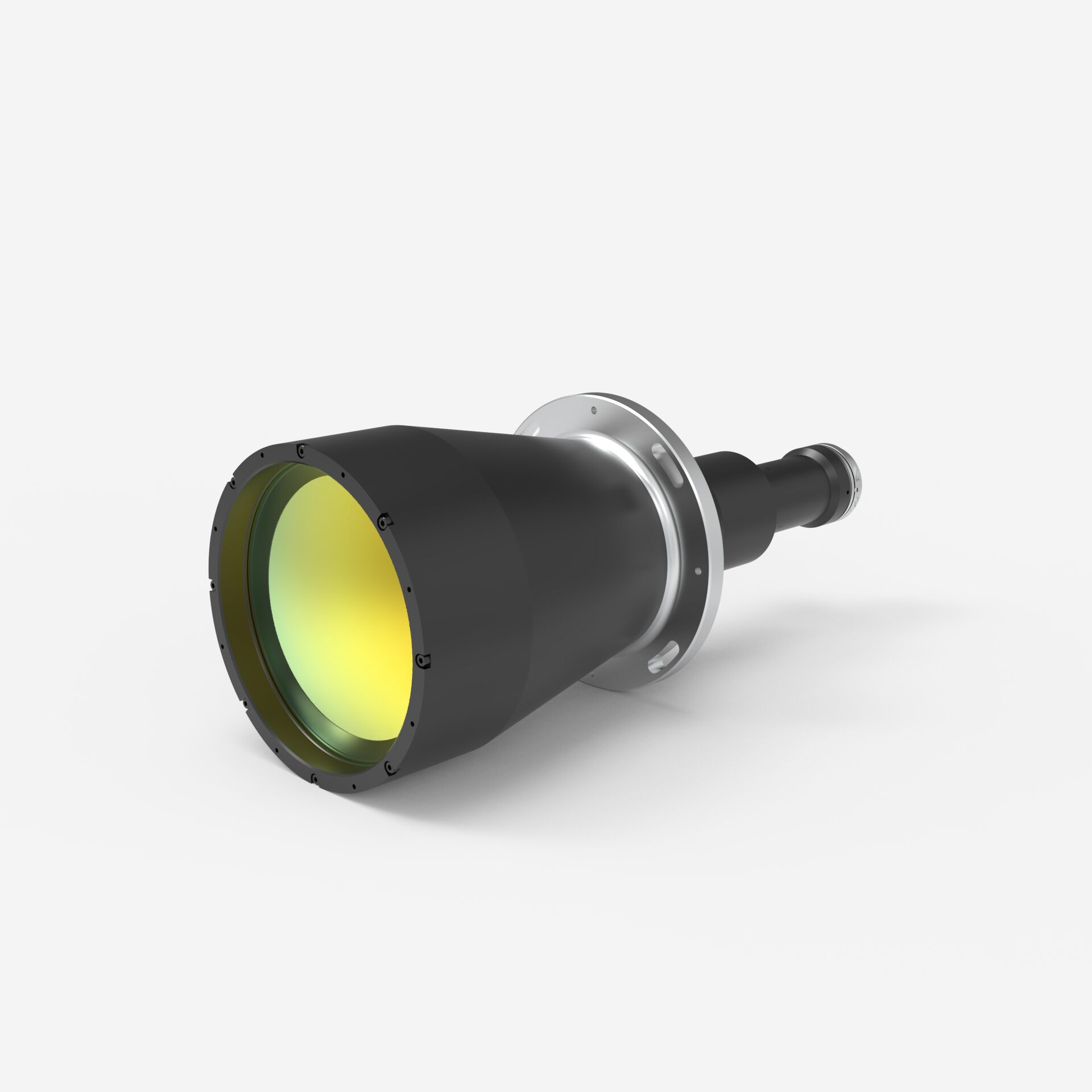

Lens specification | XF-PTL12223 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 0.19 |
coaxial insertion | nein |
Image circle | Ø 23 mm |
Object circle | Ø 121.1 mm |
Working distance | 260 mm±3% |
Max. Sensor size | 4/3″ |
Max. Telecentricity error | 0.06° |
Max. Distortion | 0.043% |
Standard distortion | 0.043% |
Variable aperture | Nein |
Aperture | F8 |
Depth of field | 24.4 mm |
Resolution | 27.7 μm |
MTF | >130 lp/ mm |
Lens diameter | Ø 166 mm |
Lens length | 420 mm |
Weight | 5.43 Kg |
Standard Mount | C-Mount |
