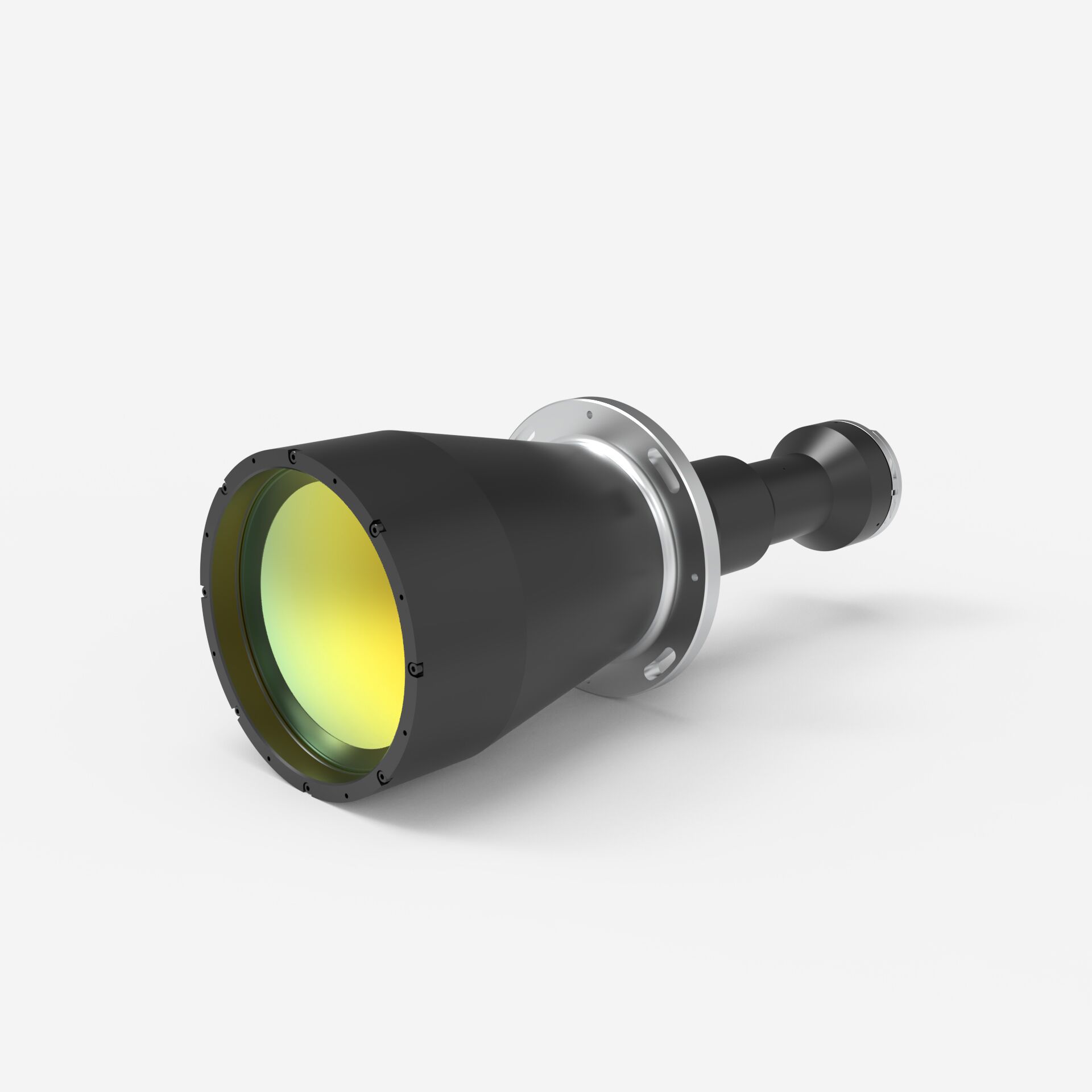

Lens specification | XF-PTL12232 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 0.269 |
coaxial insertion | nein |
Image circle | Ø 32 mm |
Object circle | Ø 119 mm |
Working distance | 260 mm±3% |
Max. Sensor size | APS-C |
Max. Telecentricity error | 0.06° |
Max. Distortion | 0.055% |
Standard distortion | 0.055% |
Variable aperture | Nein |
Aperture | F7.5 |
Depth of field | 9.3 mm |
Resolution | 0 μm |
MTF | >135 lp/ mm |

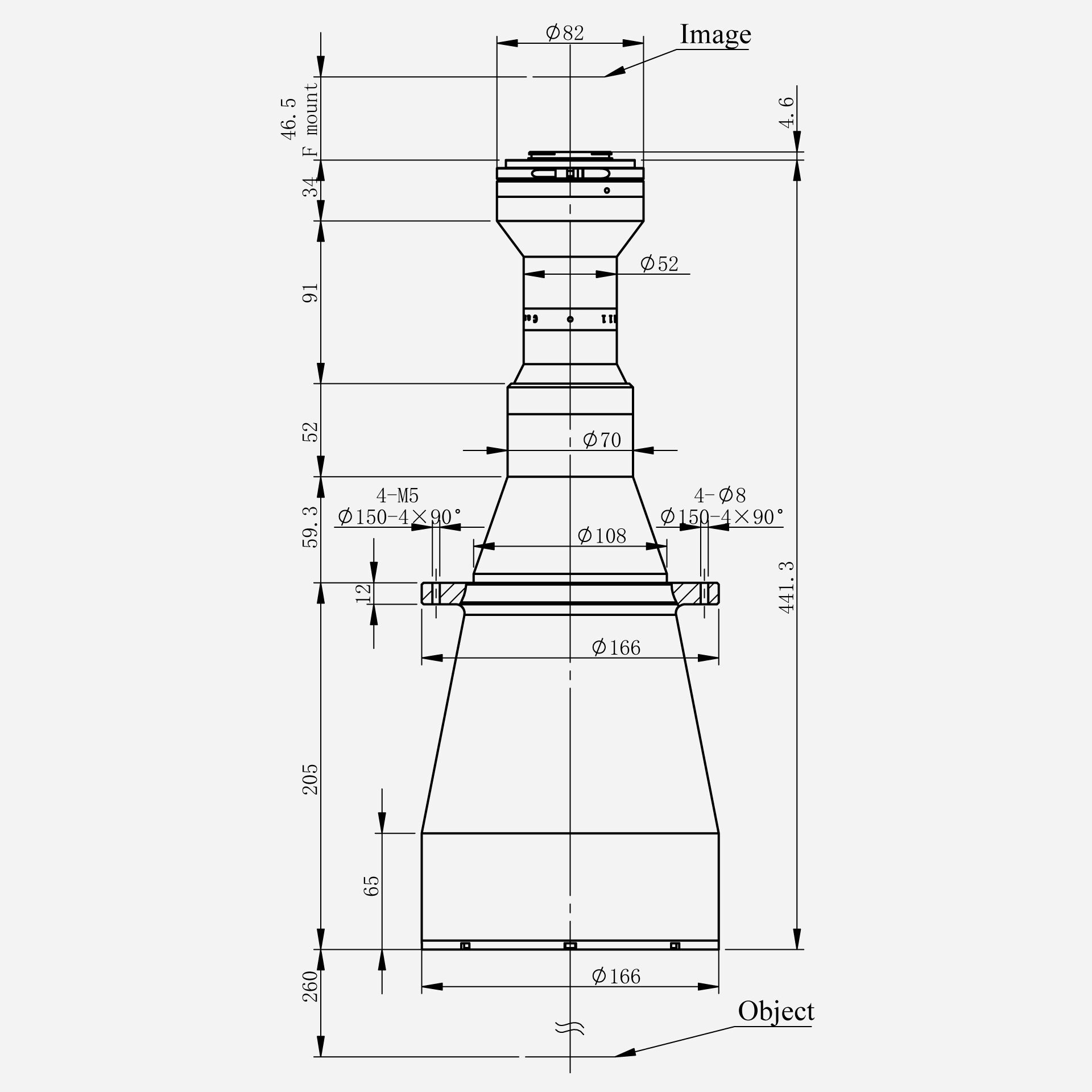

Lens diameter | Ø 166 mm |
Lens length | 441.3 mm |
Weight | 5.9 Kg |
Standard Mount | F-Mount |
