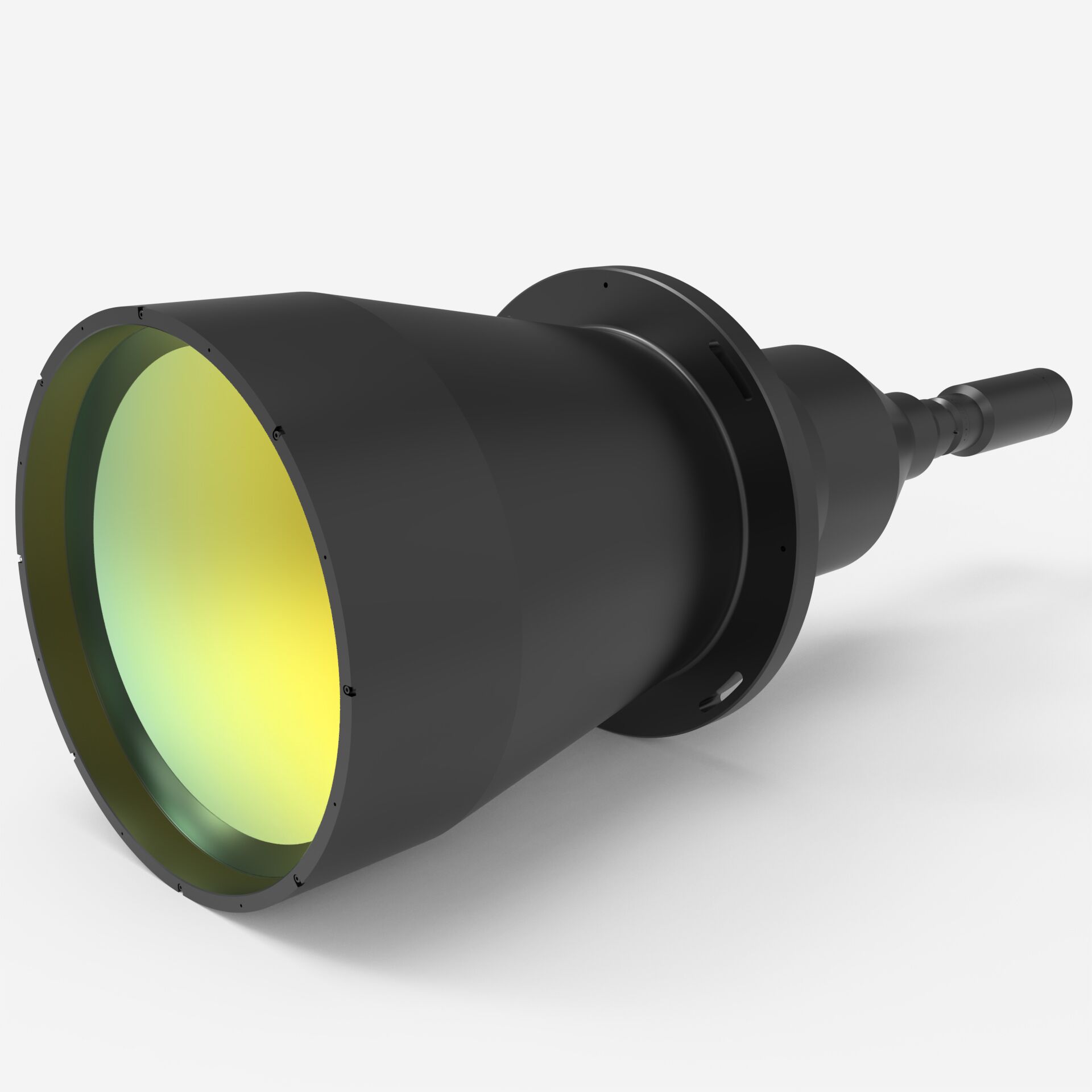

XF-PTL39062
Bi-Telezentrisches Objektiv für 3,9″ Sensor
Vergrößerung 0.165
Arbeitsabstand 700mm
Lens specification | XF-PTL39062 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 0.165 |
coaxial insertion | Nein |
Image circle | Ø 62 mm |
Object circle | Ø 375.8 mm |
Working distance | 700 mm±3% |
Max. Sensor size | 62mm |
Max. Telecentricity error | 0.06° |
Max. Distortion | 0.052% |
Standard distortion | 0.052% |
Variable aperture | Ja |
Aperture | F6-F83 |
Depth of field | 44.4@F11 mm |
Resolution | 44@F11 μm |
MTF | >95@F11 lp/ mm |
Lens diameter | Ø 430 mm |
Lens length | 1274.7 mm |
Weight | 60.45 Kg |
Standard Mount | M72 |
