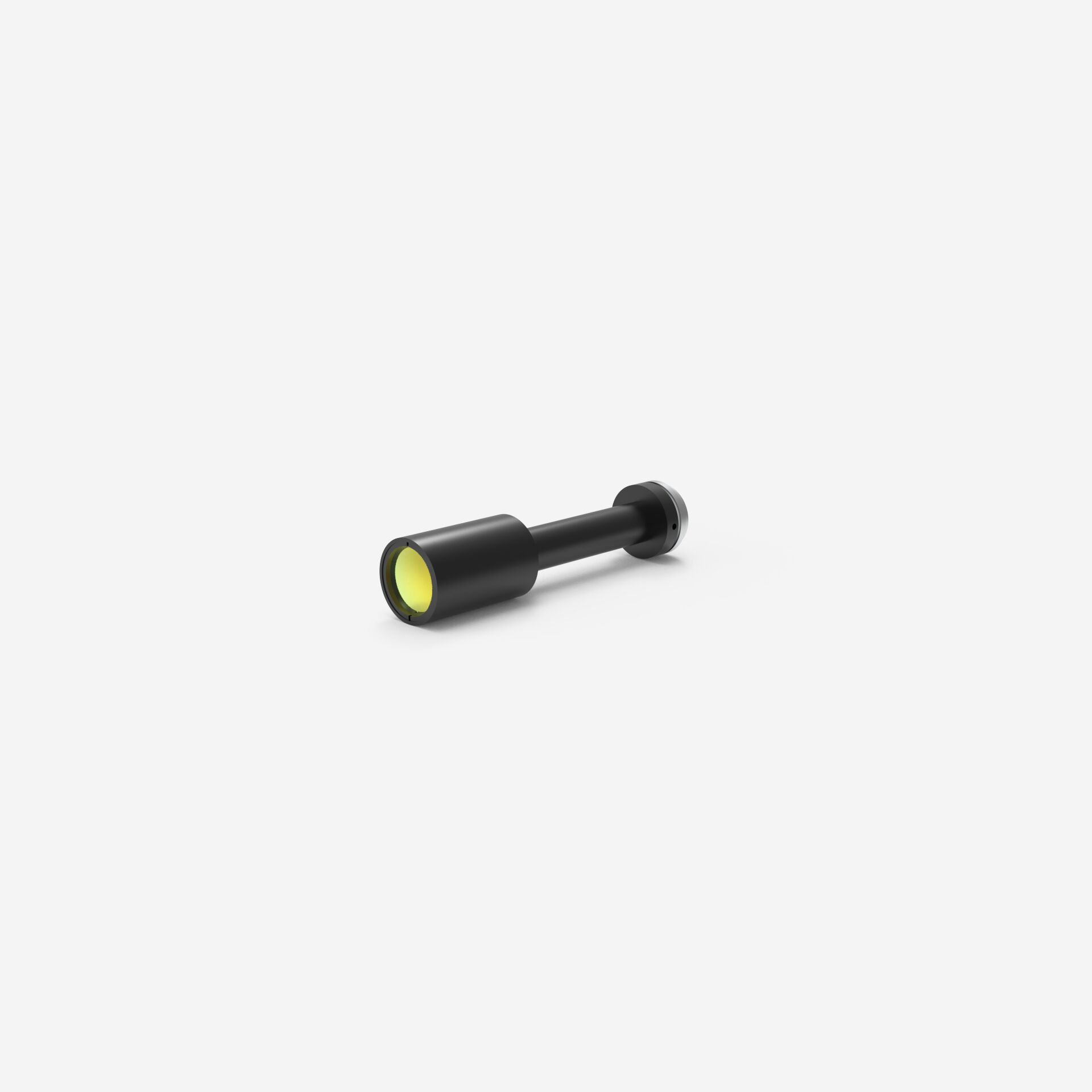

XF-T1X110
Object-Telezentrisches Objektiv für 2/3″ Sensor
Vergrößerung 1.0
Arbeitsabstand 110mm
Lens specification | XF-T1X110 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 1 |
coaxial insertion | nein |
Image circle | Ø 11 mm |
Object circle | Ø 11 mm |
Working distance | 110 mm±3% |
Max. Sensor size | 2/3″ |
Max. Telecentricity error | 0.07° |
Max. Distortion | 0.03% |
Standard distortion | 0.03% |
Variable aperture | Nein |
Aperture | F20.8 |
Depth of field | 2.3 mm |
Resolution | 13.8 μm |
MTF | >50 lp/ mm |
Lens diameter | Ø 30 mm |
Lens length | 126.7 mm |
Weight | nicht eingegeben |
Standard Mount | nach Anfrage |
