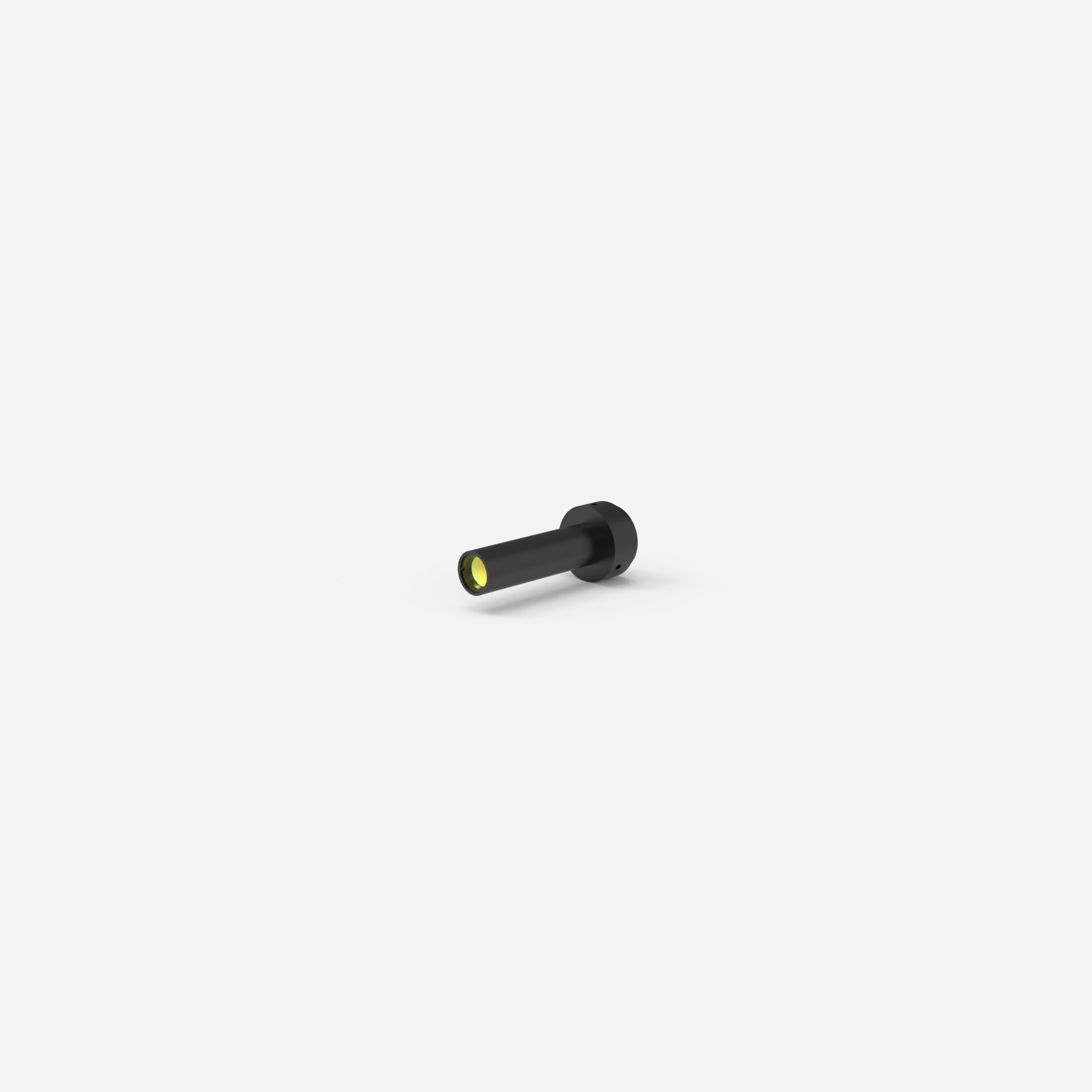

XF-T2X65

Object-Telezentrisches Objektiv für 1/2″ Sensor

Vergrößerung 2,0

Arbeitsabstand 65mm

In die Anfrageliste legen

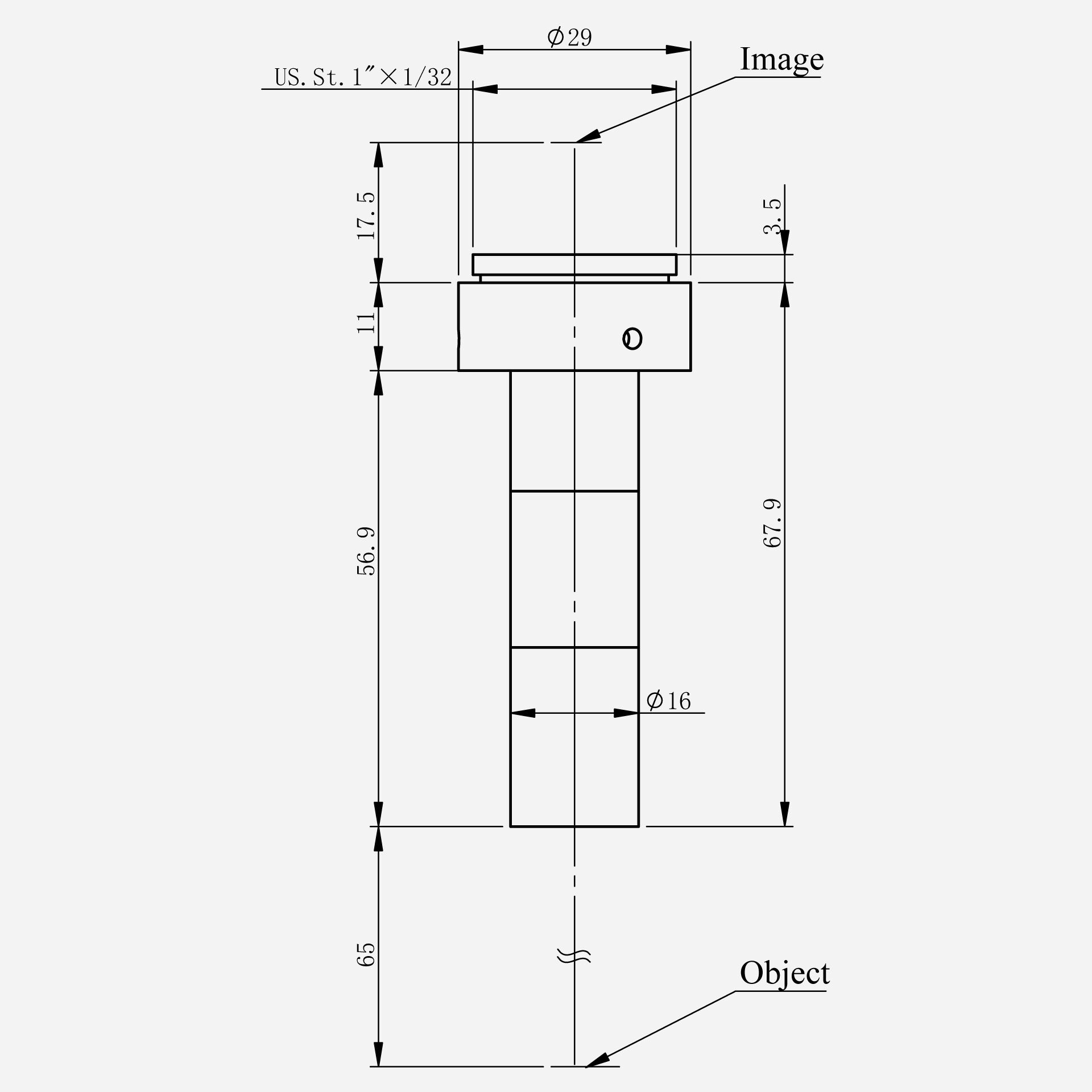

Lens specification
XF-T2X65
Lens type:
Objektseitig Telezentrisch
Magnification
2
coaxial insertion
nein
Image circle
Ø 8 mm
Object circle
Ø 4 mm
Working distance
65 mm±3%
Max. Sensor size
1/2″
Max. Telecentricity error
0.08°
Max. Distortion
0.025%
Standard distortion
0.025%
Variable aperture
Nein
Aperture
F17.4
Depth of field
0.47 mm
Resolution
5.8 μm
MTF
>55 lp/ mm
Lens diameter
Ø 16 mm
Lens length
67.9 mm
Weight
nicht eingegeben
Standard Mount
C-Mount
