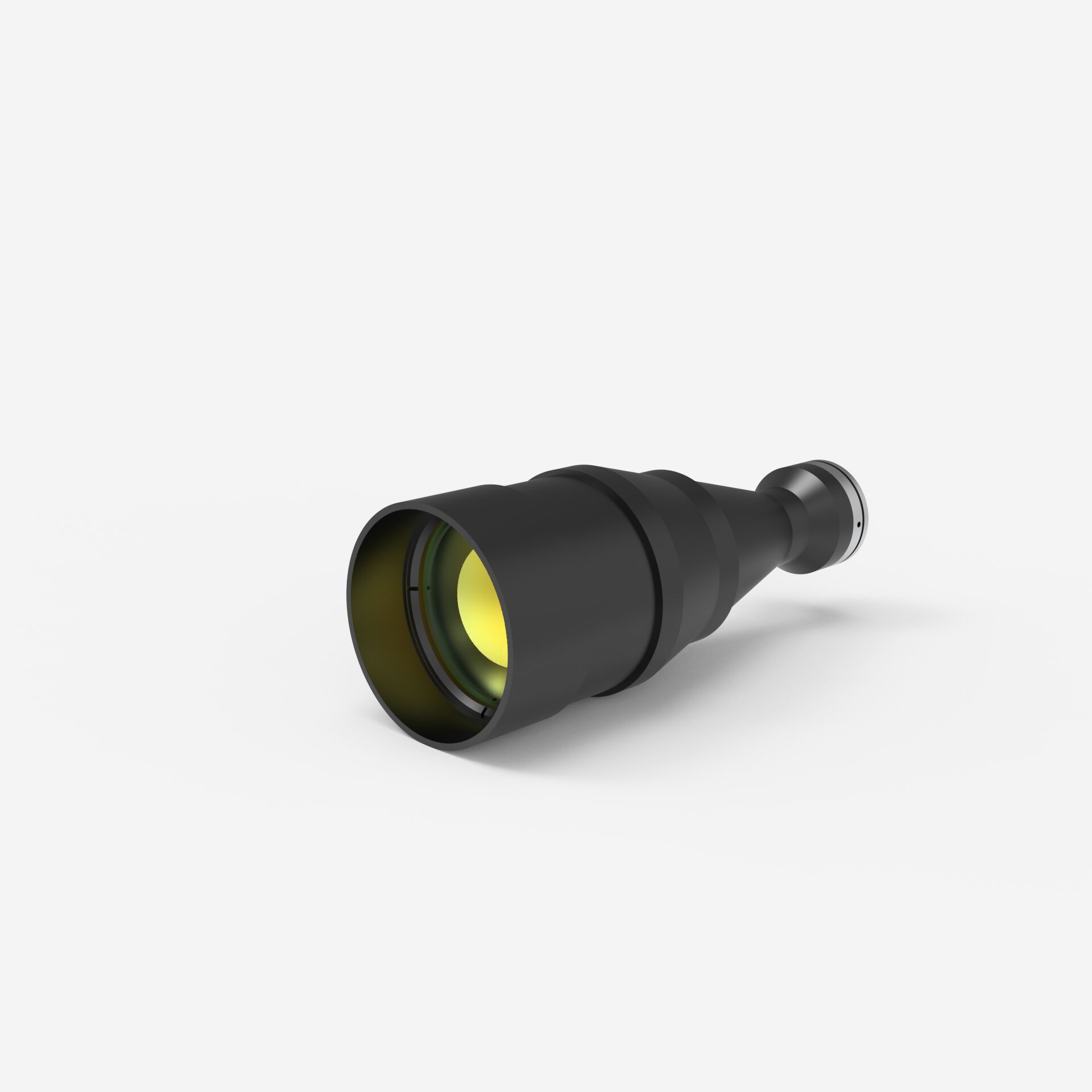

Lens specification | XF-10MDT0.25X200-1C |
|---|---|
Lens type: | Objektseitig Telezentrisch |
Magnification | 0.25 |
coaxial insertion | Nein |
Image circle | Ø 16 mm |
Object circle | Ø 64 mm |
Working distance | 200 mm±3% |
Max. Sensor size | 1″ |
Max. Telecentricity error | 0.17° |
Max. Distortion | 1.224% |
Standard distortion | 1.224% |
Variable aperture | Nein |
Aperture | F9 |
Depth of field | 16.1 mm |
Resolution | 23.7 μm |
MTF | >100 lp/ mm |

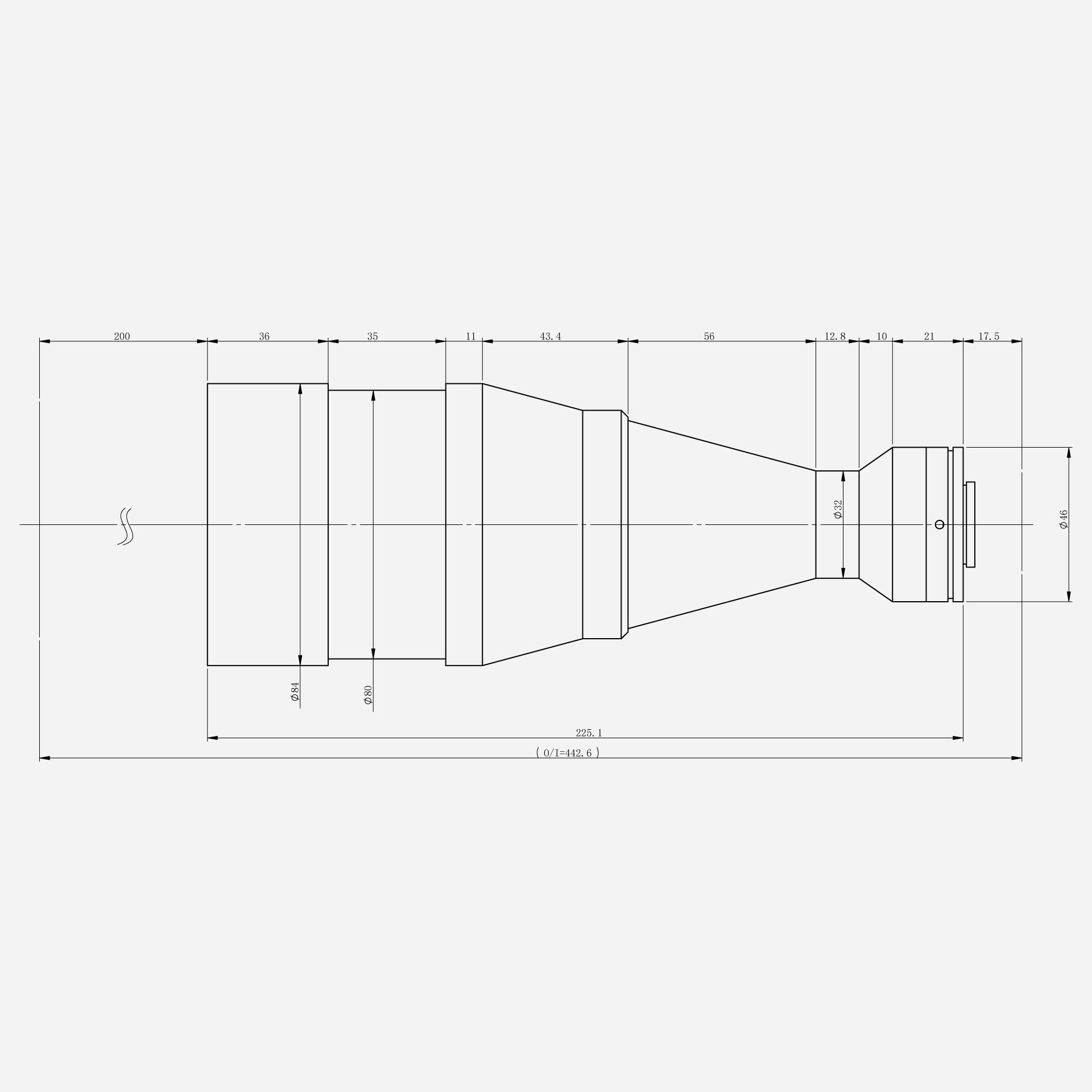

Lens diameter | Ø 84 mm |
Lens length | 225.1 mm |
Weight | nicht eingegeben |
Standard Mount | C-Mount |
