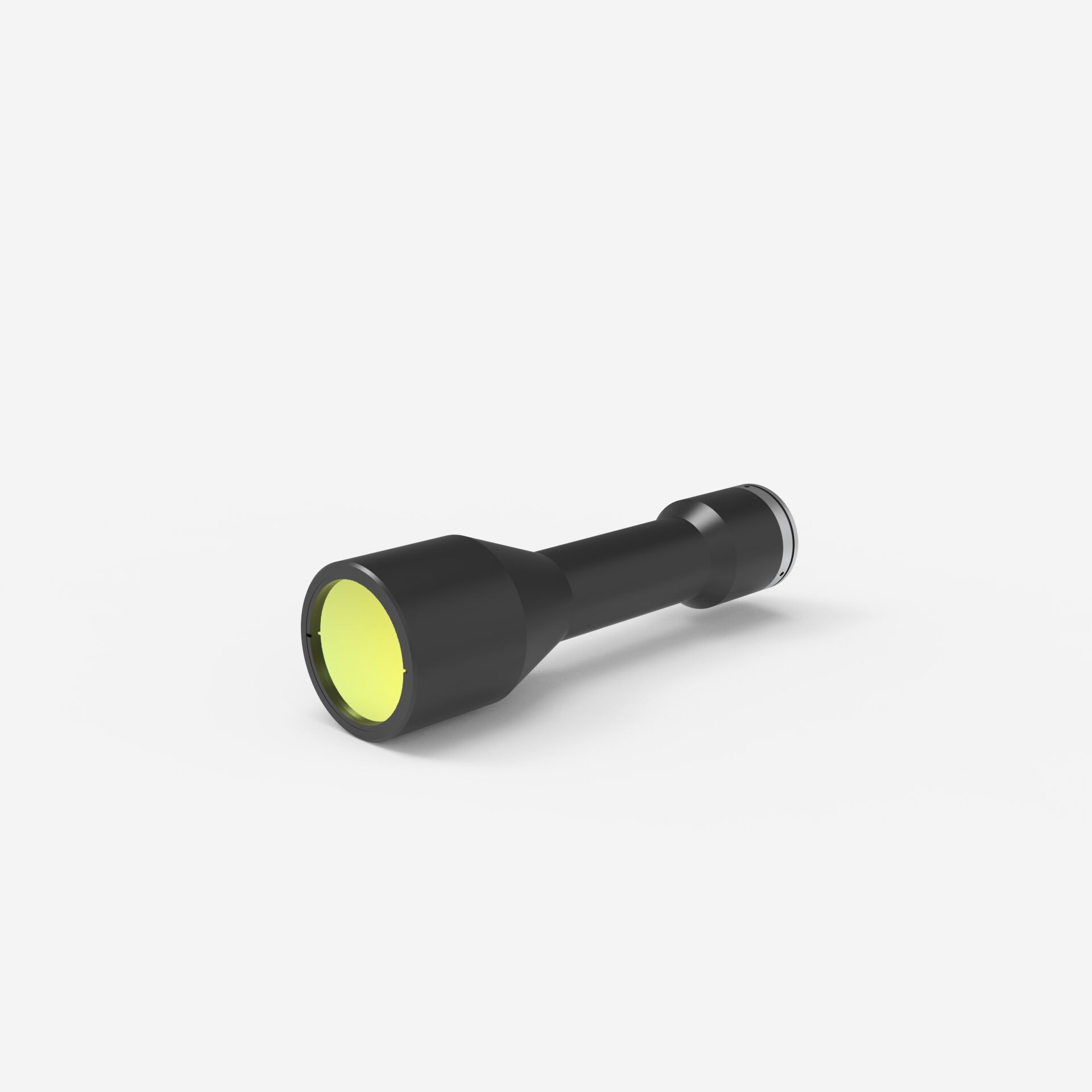

Lens specification | XF-10MDT0.55X220-1C |
|---|---|
Lens type: | Objektseitig Telezentrisch |
Magnification | 0.55 |
coaxial insertion | Nein |
Image circle | Ø 17.6 mm |
Object circle | Ø 32 mm |
Working distance | 220 mm±3% |
Max. Sensor size | 1.1″ |
Max. Telecentricity error | 0.09° |
Max. Distortion | 0.112% |
Standard distortion | 0.112% |
Variable aperture | Nein |
Aperture | F8 |
Depth of field | 2.9 mm |
Resolution | 9.6 μm |
MTF | >125 lp/ mm |

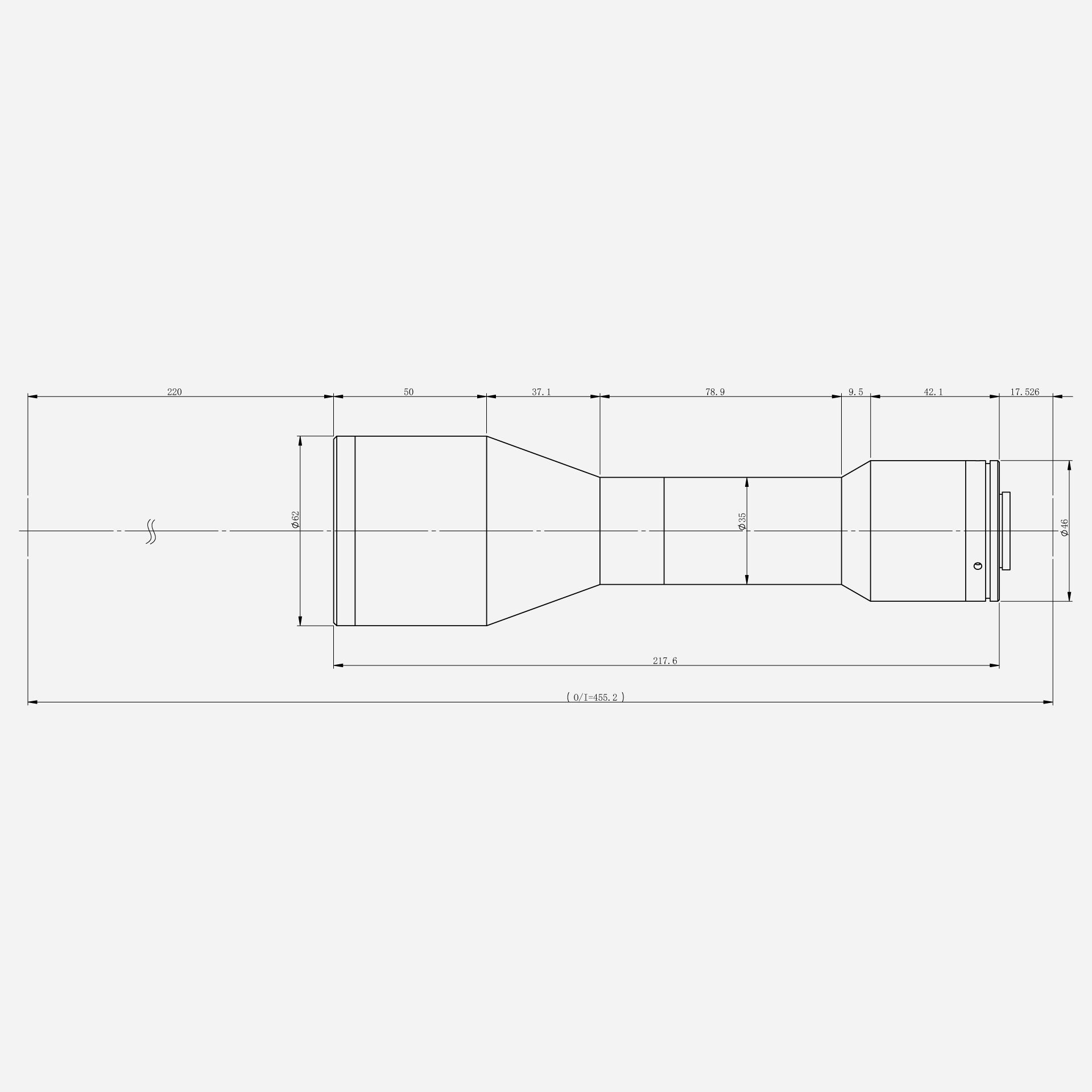

Lens diameter | Ø 62 mm |
Lens length | 217.6 mm |
Weight | nicht eingegeben |
Standard Mount | C-Mount |
