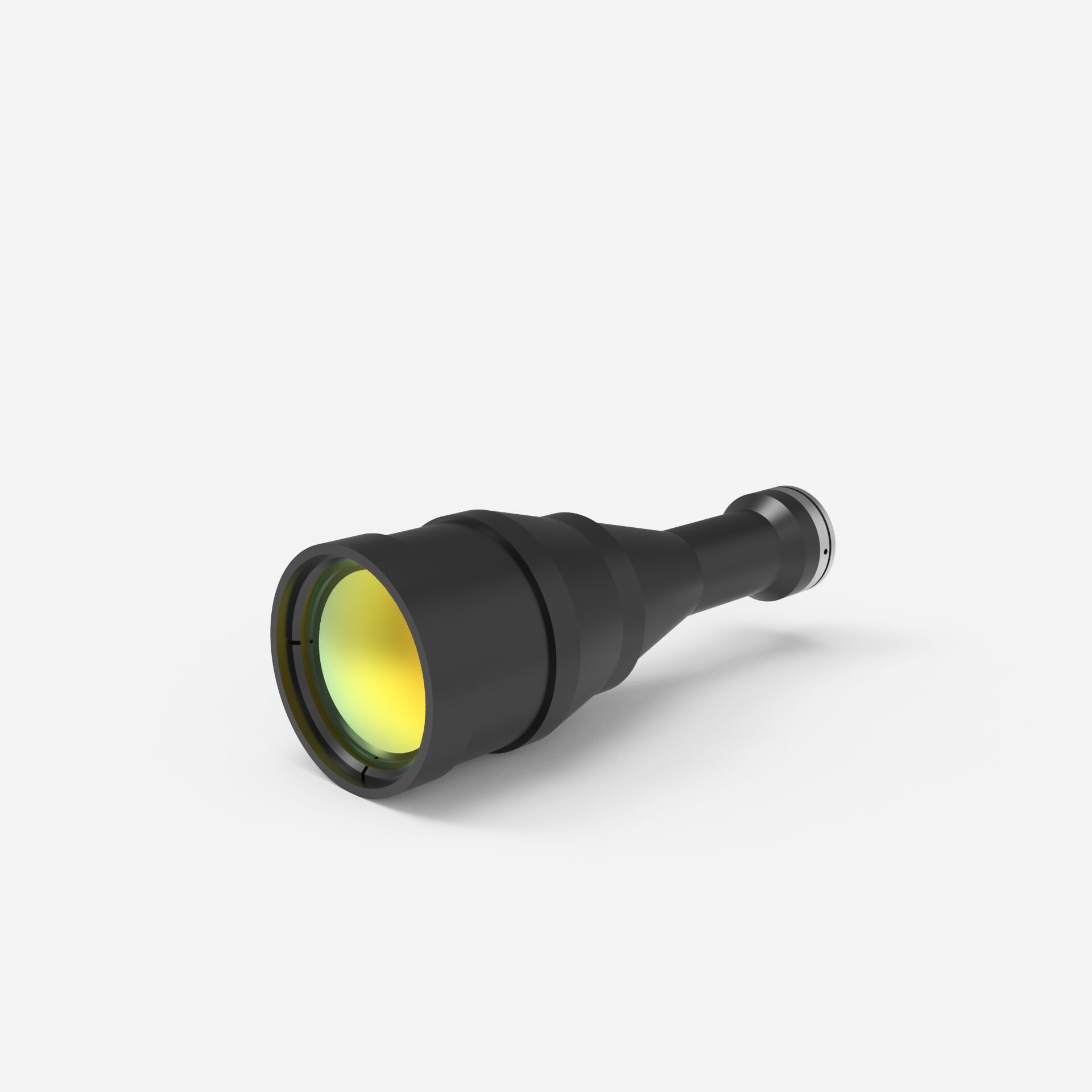

Lens specification | XF-10MDT0.367X200-1C |
|---|---|
Lens type: | Objektseitig Telezentrisch |
Magnification | 0.367 |
coaxial insertion | Nein |
Image circle | Ø 16 mm |
Object circle | Ø 43.6 mm |
Working distance | 200 mm±3% |
Max. Sensor size | 1″ |
Max. Telecentricity error | 0.2° |
Max. Distortion | 0.045% |
Standard distortion | 0.045% |
Variable aperture | Nein |
Aperture | F8 |
Depth of field | 5.4 mm |
Resolution | 14.3 μm |
MTF | >120 lp/ mm |

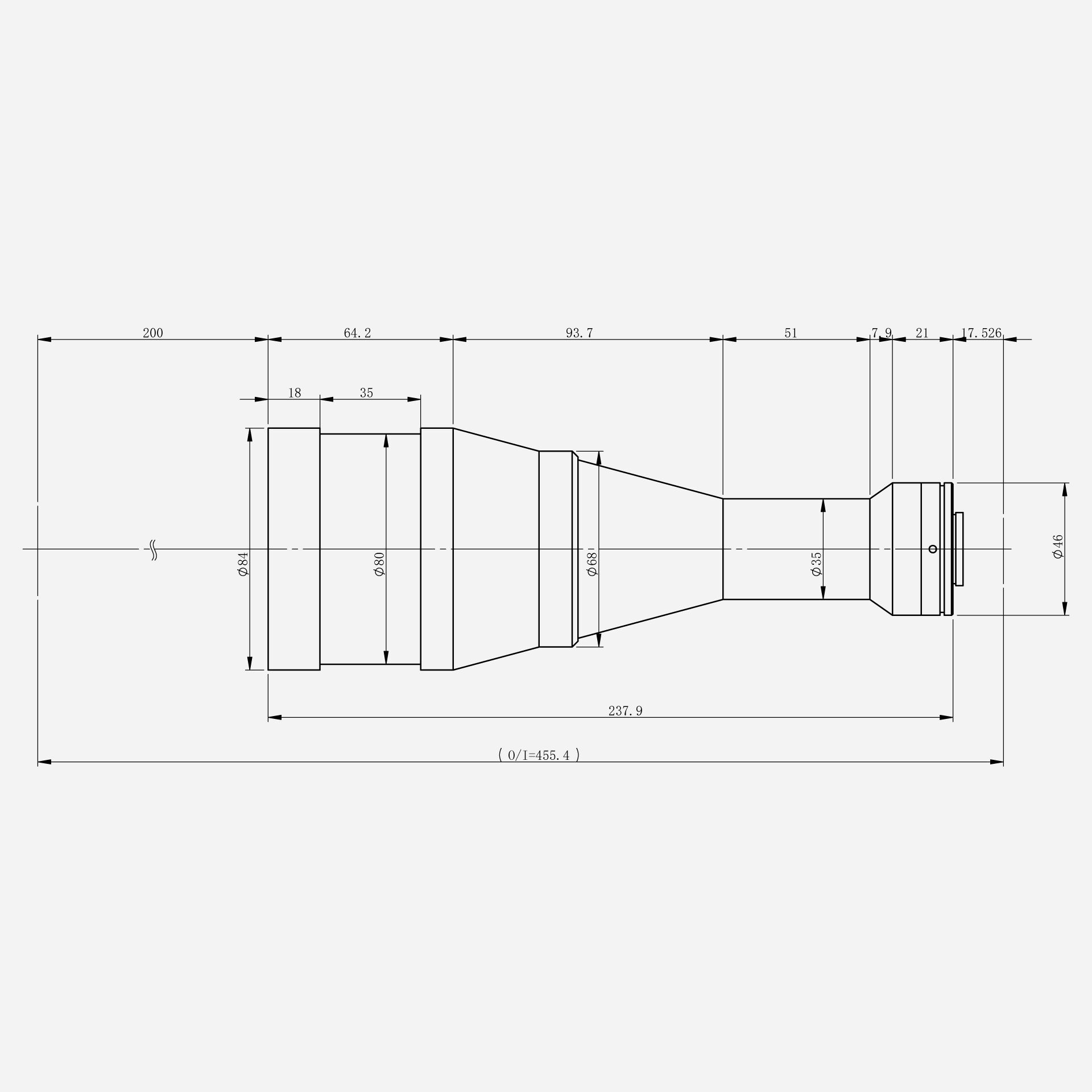

Lens diameter | Ø 84 mm |
Lens length | 237.9 mm |
Weight | nicht eingegeben |
Standard Mount | C-Mount |
