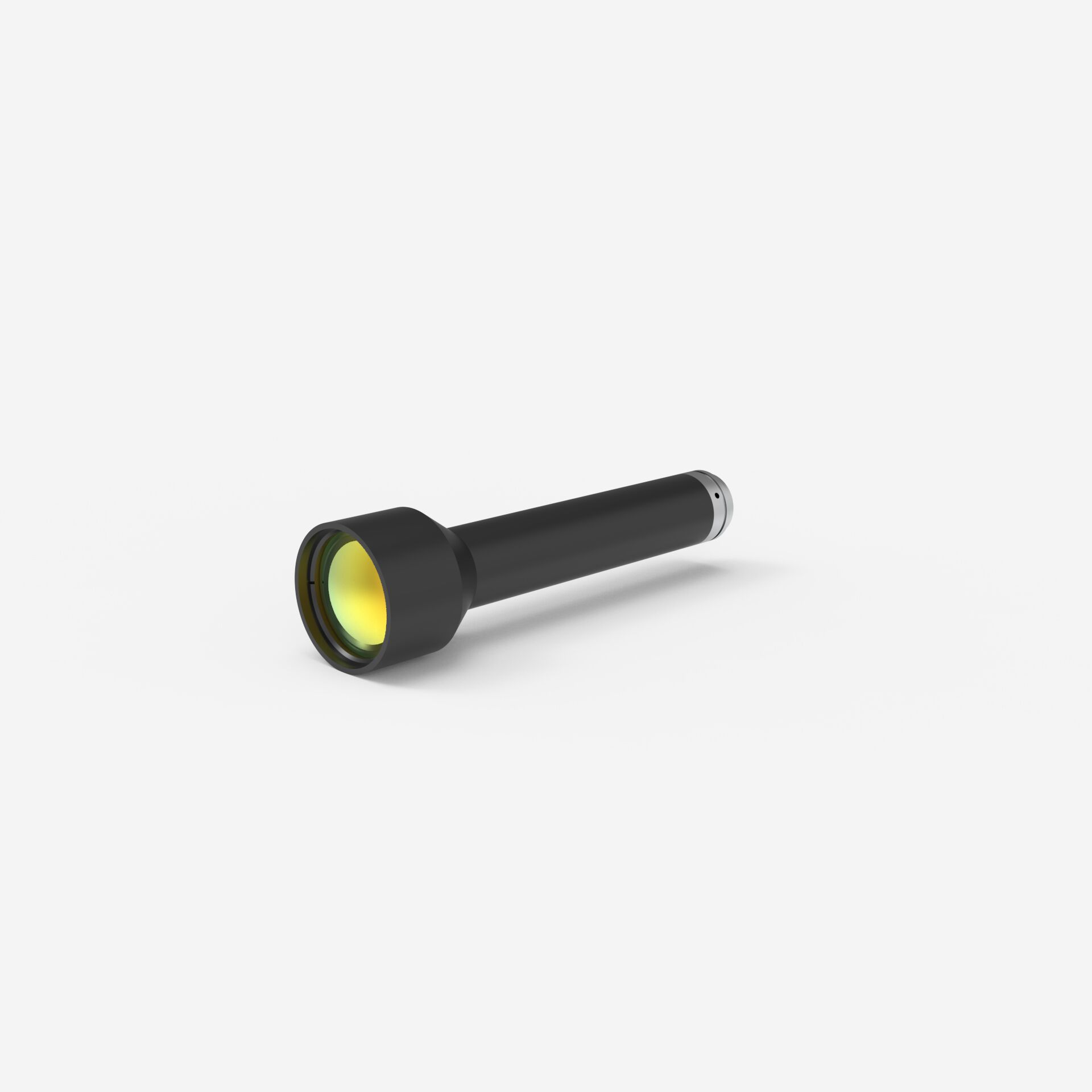

XF-10MDT1.5X110-1C

Object-Telezentrisches Objektiv für 1.1″ Sensor

Vergrößerung 1.5

Arbeitsabstand 110mm

In die Anfrageliste legen
Lens specification
XF-10MDT1.5X110-1C
Lens type:
Objektseitig Telezentrisch
Magnification
1.5
coaxial insertion
Nein
Image circle
Ø 17.6 mm
Object circle
Ø 11.7 mm
Working distance
110 mm±3%
Max. Sensor size
1.1″
Max. Telecentricity error
0.1°
Max. Distortion
0.082%
Standard distortion
0.082%
Variable aperture
Nein
Aperture
F11.5
Depth of field
0.57 mm
Resolution
5.1 μm
MTF
>85 lp/ mm

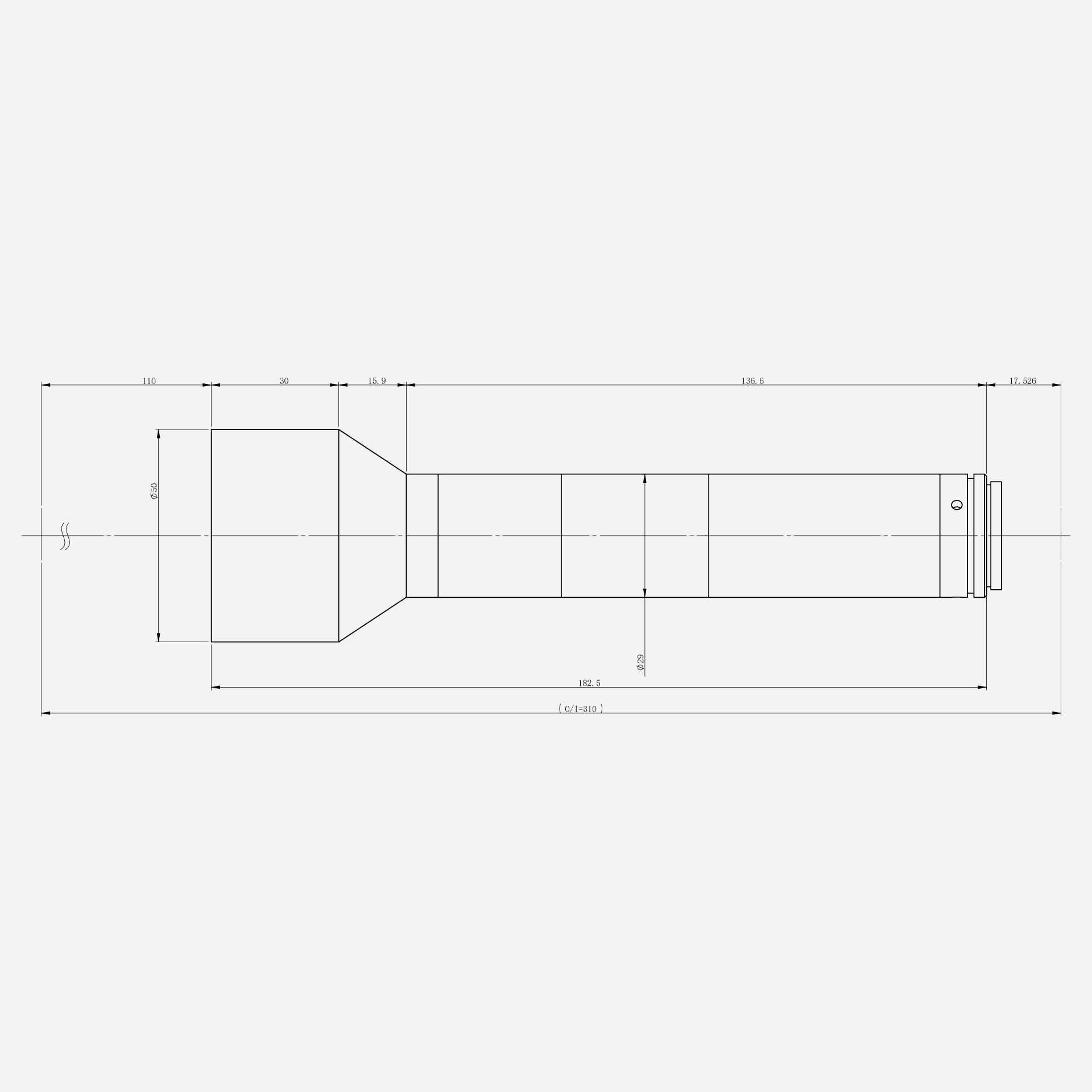

Lens diameter
Ø 50 mm
Lens length
182.5 mm
Weight
nicht eingegeben
Standard Mount
C-Mount
