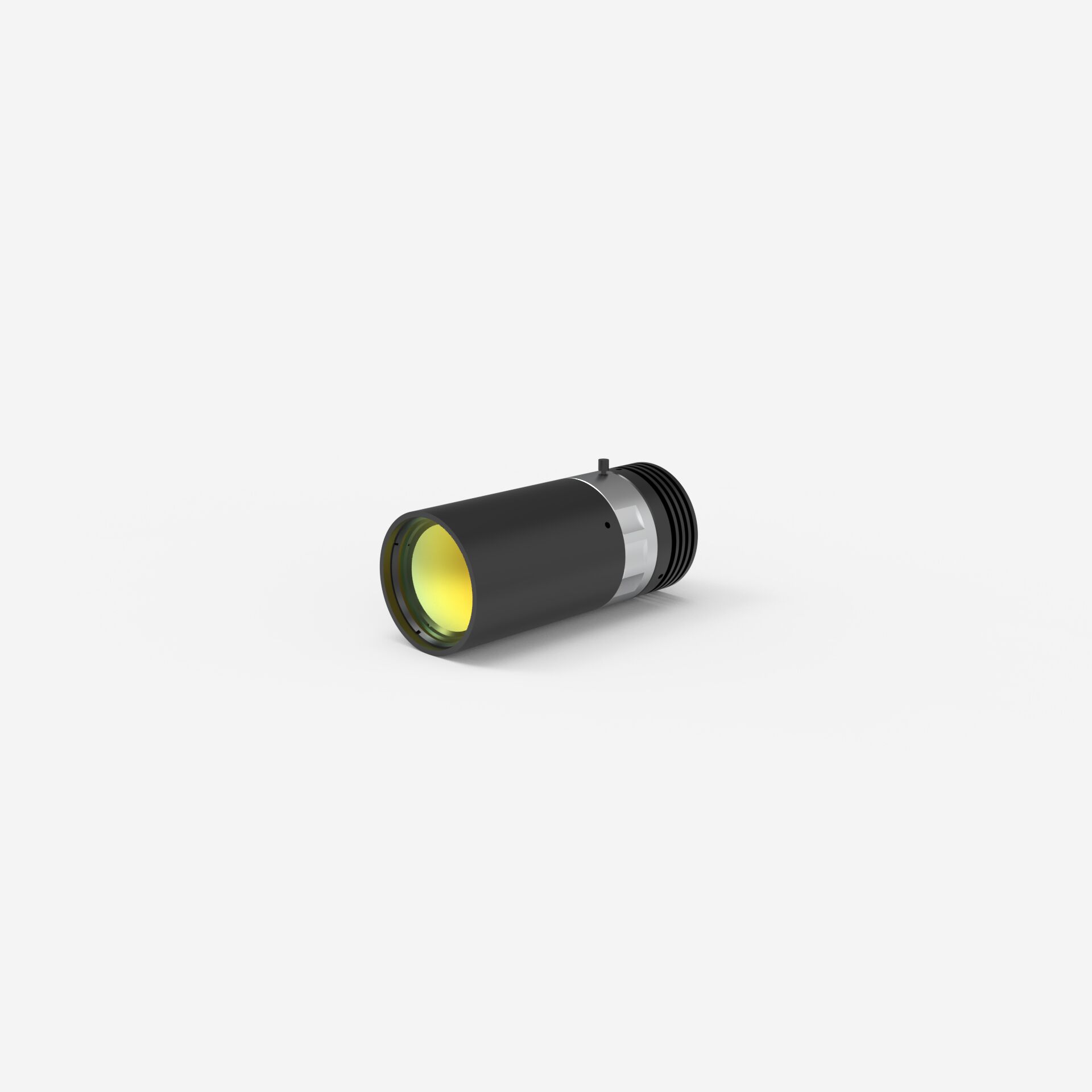

Lighting specification | XF-PTI037 |
|---|---|
Beam diameter: | Ø 37mm |
Working distance: | 79.3mm |
Performance: | 5W |
Max. Voltage: | 24V |
Max. Stom: | 208mA |
Available colors: | Rot, Grün, Blau, Weiß |
Variable aperture: | ja |
Connection: | push_pull_stecker |

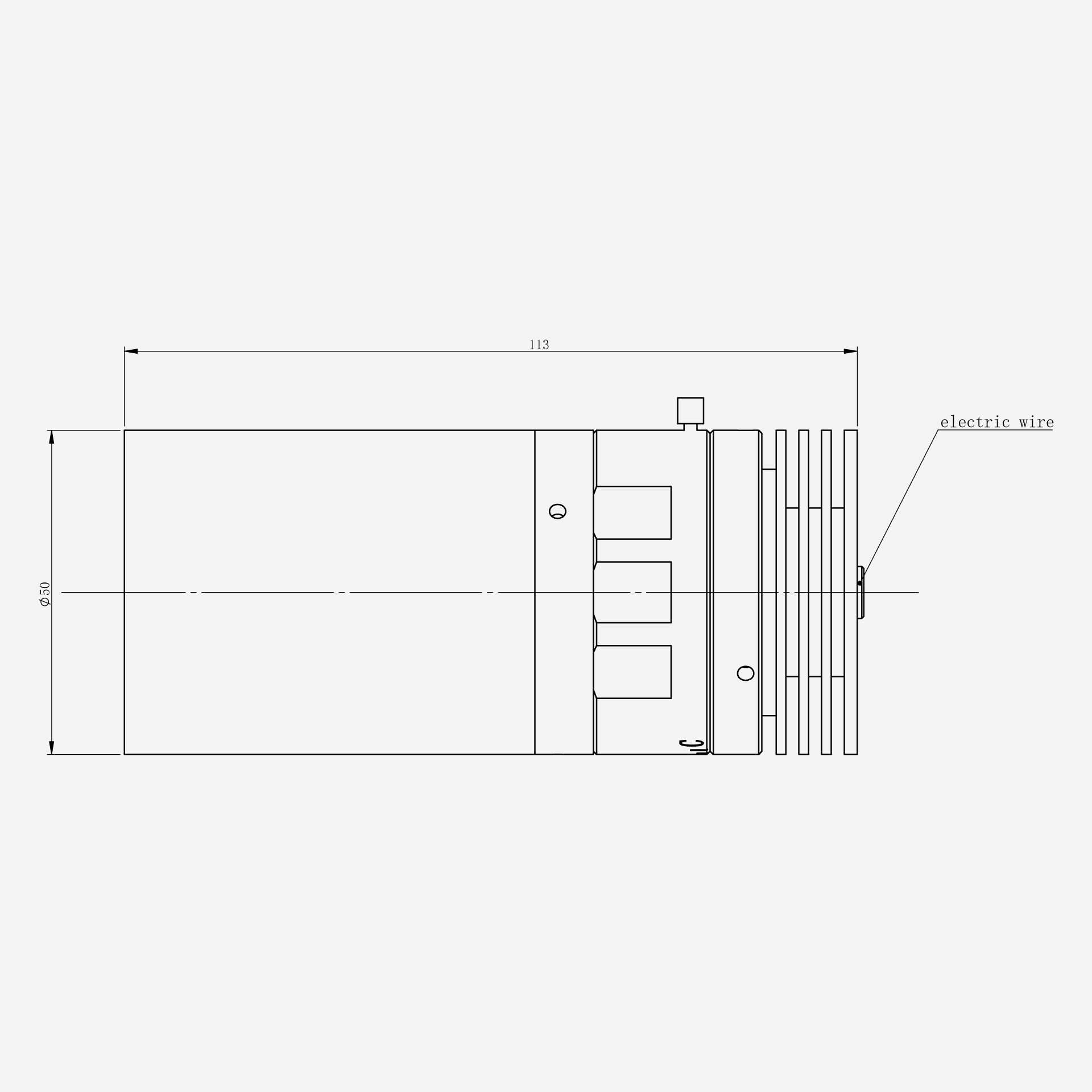

Max. Diameter: | Ø 50mm |
Length: | 113mm |
Weight: | 0.31Kg |
Variable aperture specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Diameter from
Diaphragm (mm): | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Numerical aperture: | 0.06 | 0.013 | 0.019 | 0.025 | 0.032 | 0.038 | – | – | – | – |
Aperture half angle: | 0.36° | 0.72° | 1.08° | 1.44° | 1.81° | 2.17° | – | – | – | – |
