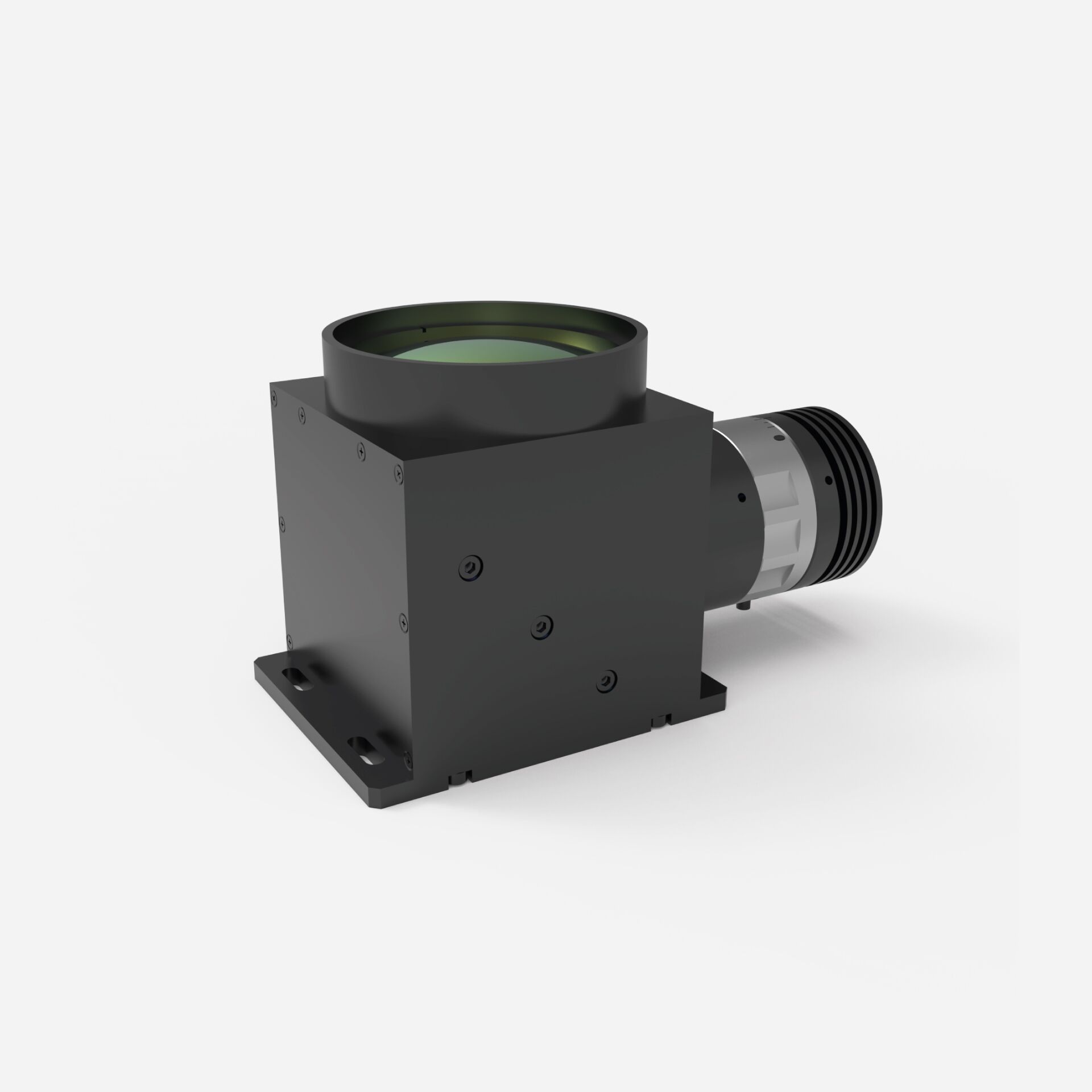

Lighting specification | XF-PTI060-90 |
|---|---|
Beam diameter: | Ø 60mm |
Working distance: | 90mm |
Performance: | 5W |
Max. Voltage: | 24V |
Max. Stom: | 208mA |
Available colors: | Rot, Grün, Blau, Weiß |
Variable aperture: | ja |
Connection: | |
Design: | 90grad |
Dimensions (WxHxD): | nicht eingegeben |
Weight: | 0.845Kg |
Variable aperture specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Diameter from
Diaphragm (mm): | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Numerical aperture: | 0.004 | 0.008 | 0.011 | 0.015 | 0.019 | 0.023 | 0.027 | – | – | – |
Aperture half angle: | 0.22° | 0.44° | 0.65° | 0.87° | 1.09° | 1.31° | 1.53° | – | – | – |
