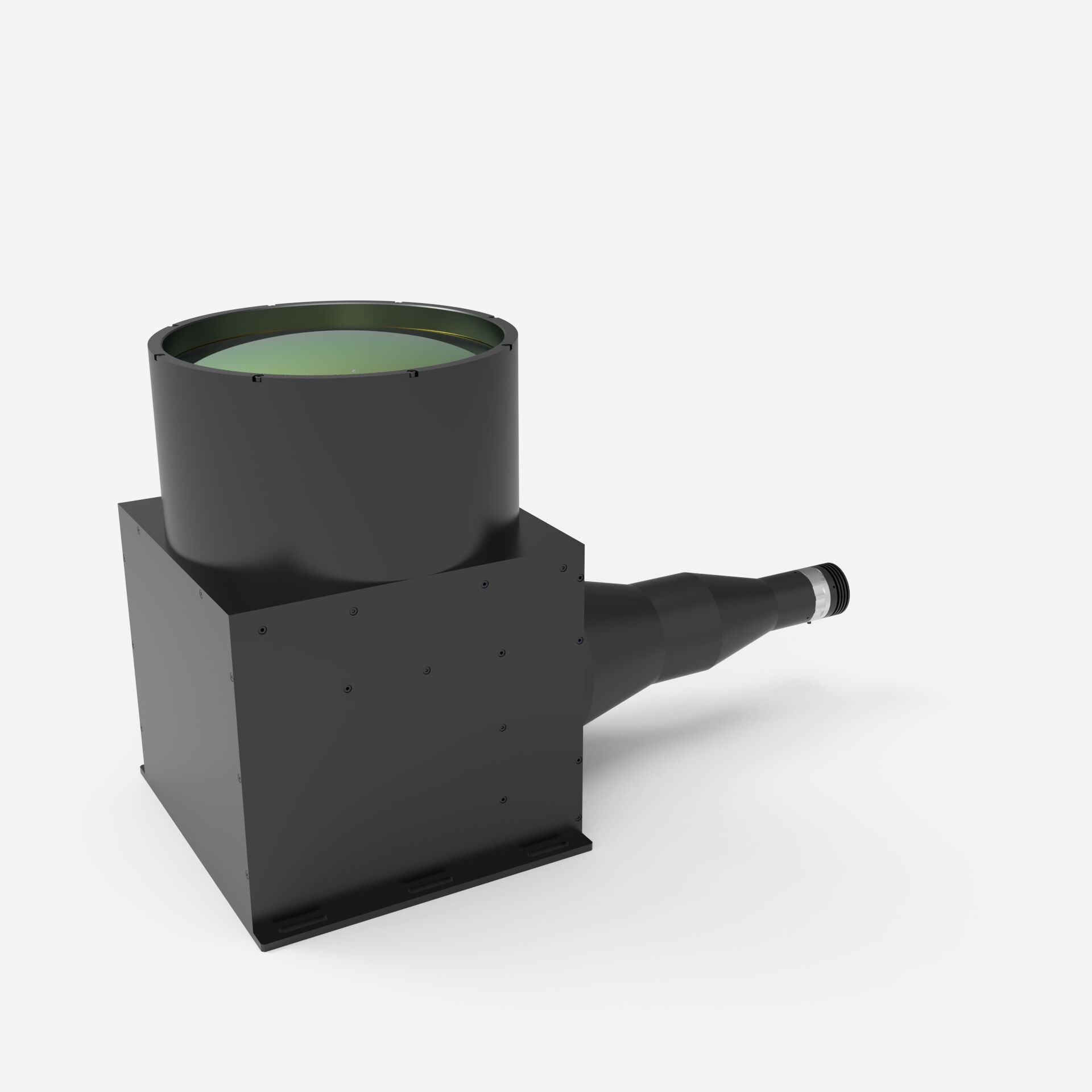

Lighting specification | XF-PTI238-90 |
|---|---|
Beam diameter: | Ø 238mm |
Working distance: | 751mm |
Performance: | 5W |
Max. Voltage: | 24V |
Max. Stom: | 208mA |
Available colors: | Rot, Grün, Blau, Weiß |
Variable aperture: | ja |
Connection: | push_pull_stecker |
Design: | 90grad |

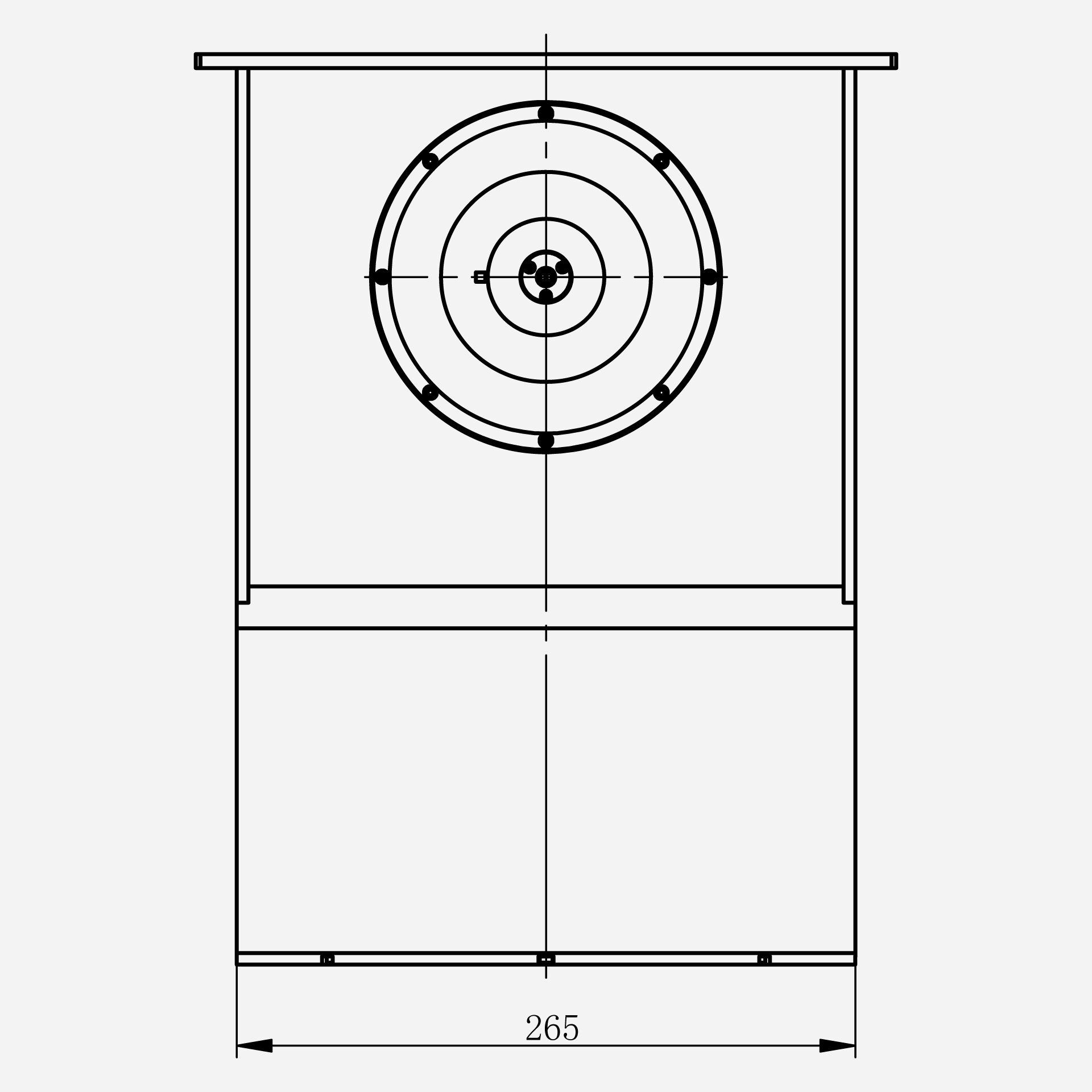

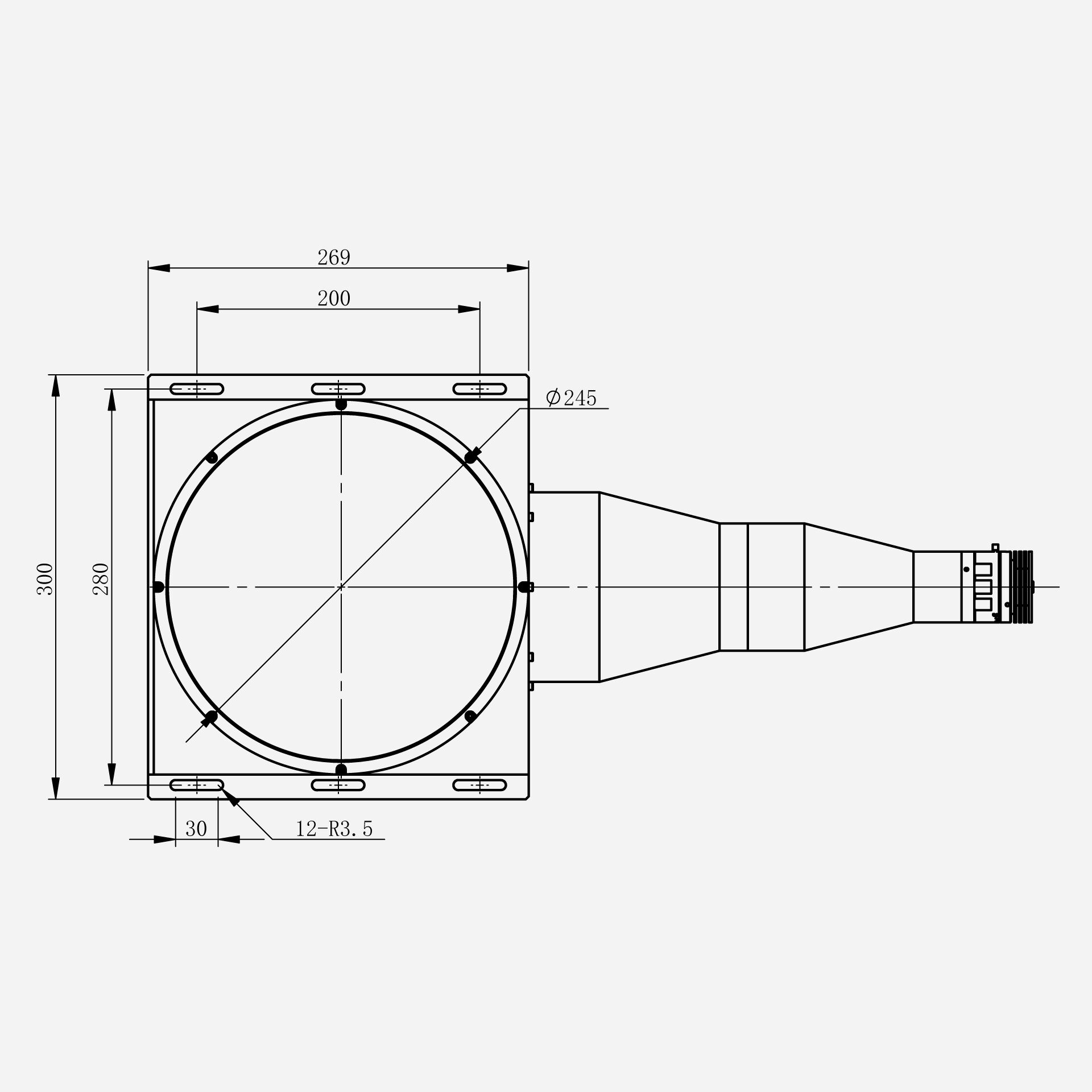

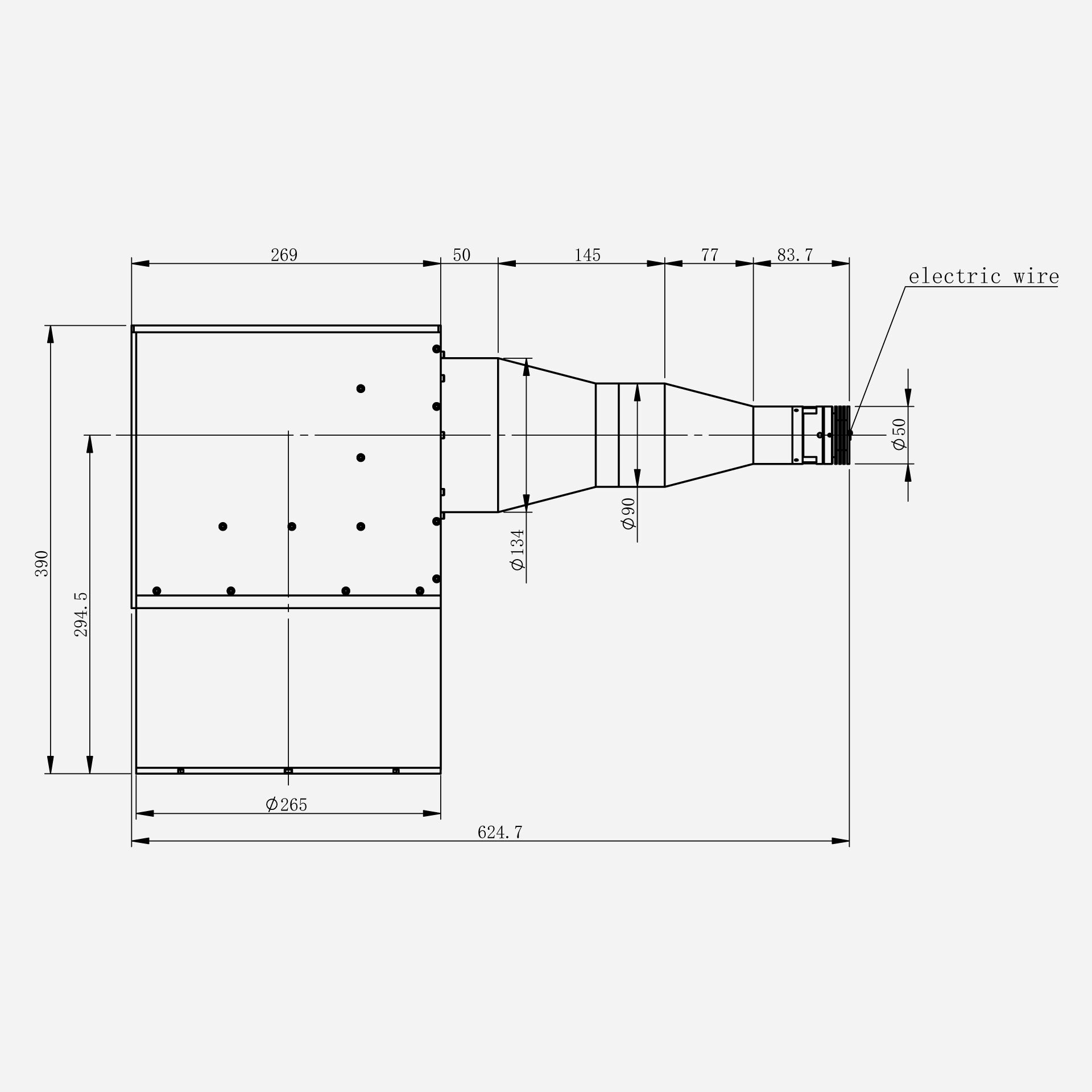

Dimensions (WxHxD): | 300 x 624.7 x 390 |
Weight: | 18.24Kg |
Variable aperture specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Diameter from
Diaphragm (mm): | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Numerical aperture: | 0.001 | 0.001 | 0.002 | 0.003 | 0.003 | 0.004 | 0.005 | 0.005 | 0.006 | 0.007 |
Aperture half angle: | 0.04° | 0.07° | 0.11° | 0.15° | 0.19° | 0.23° | 0.27° | 0.30° | 0.34° | 0.38° |
