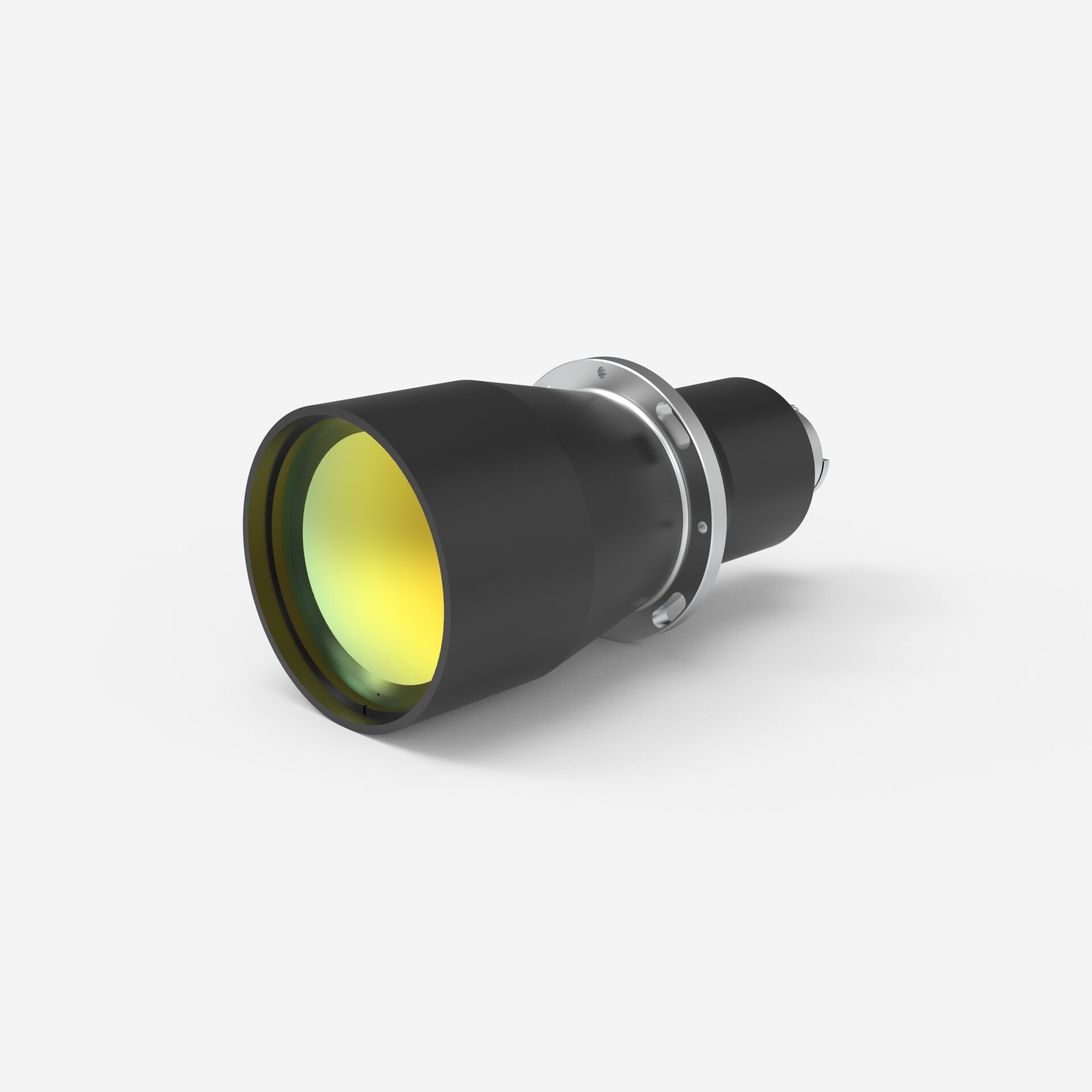

Lens specification | XF-PTL08008 |
|---|---|
Lens type: | Bi-telezentrisch |
Magnification | 0.1 |
coaxial insertion | nein |
Image circle | Ø 8 mm |
Object circle | Ø 80 mm |
Working distance | 180 mm±3% |
Max. Sensor size | 1/2″ |
Max. Telecentricity error | 0.07° |
Max. Distortion | 0.163% |
Standard distortion | 0.163% |
Variable aperture | Nein |
Aperture | F5.5 |
Depth of field | 61 mm |
Resolution | 36.26 μm |
MTF | >185 lp/ mm |

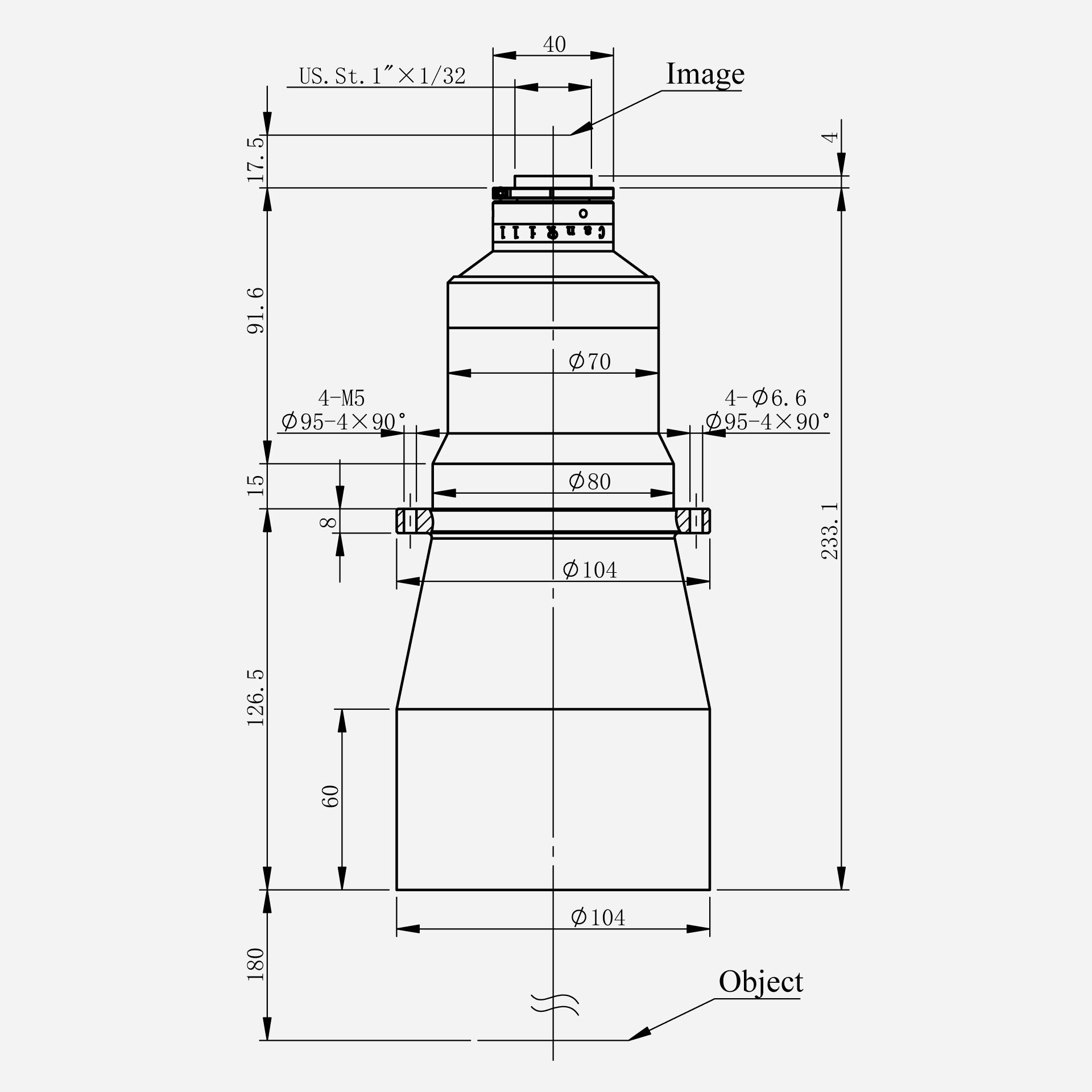

Lens diameter | Ø 104 mm |
Lens length | 233.1 mm |
Weight | 1.89 Kg |
Standard Mount | C-Mount |
