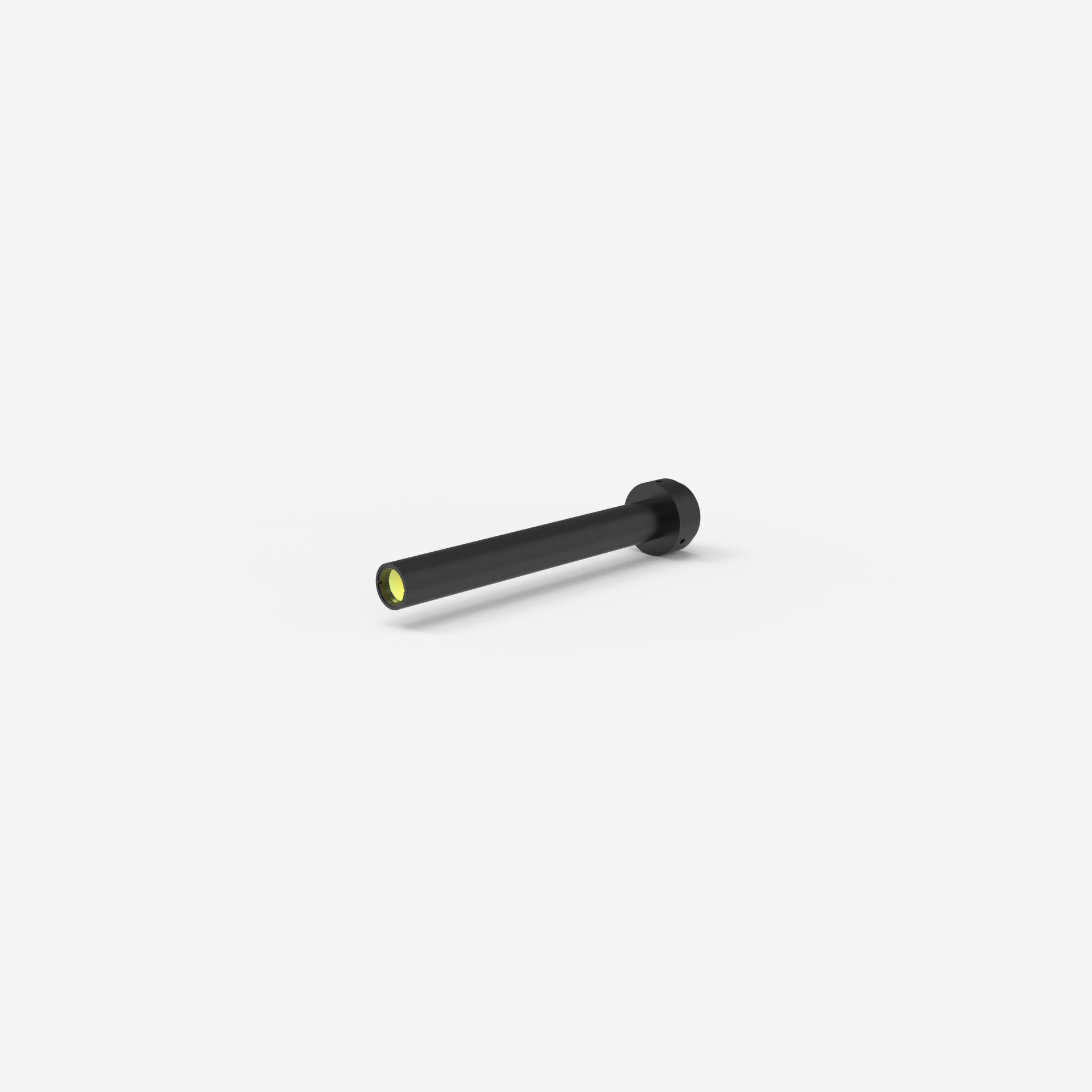

Lens specification | XF-T8X65 |
|---|---|
Lens type: | Objektseitig Telezentrisch |
Magnification | 8 |
coaxial insertion | nein |
Image circle | Ø 8 mm |
Object circle | Ø 1 mm |
Working distance | 65 mm±3% |
Max. Sensor size | 1/2″ |
Max. Telecentricity error | 0.01° |
Max. Distortion | 0.028% |
Standard distortion | 0.028% |
Variable aperture | Nein |
Aperture | F52.4 |
Depth of field | 0.001 mm |
Resolution | 4.3 μm |
MTF | >18 lp/ mm |

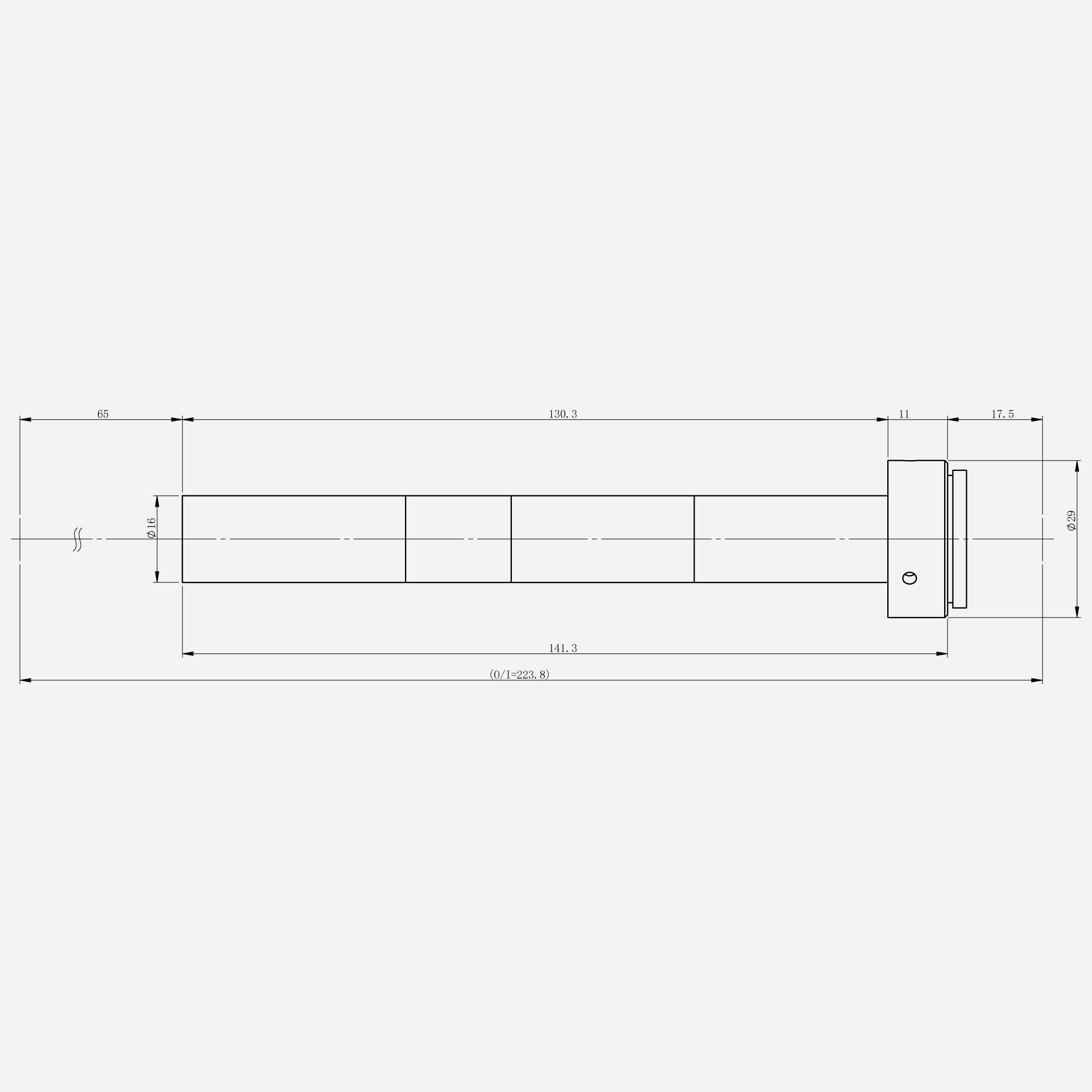

Lens diameter | Ø 16 mm |
Lens length | 141.3 mm |
Weight | nicht eingegeben |
Standard Mount | C-Mount |
